INSTRUCTION MANUAL

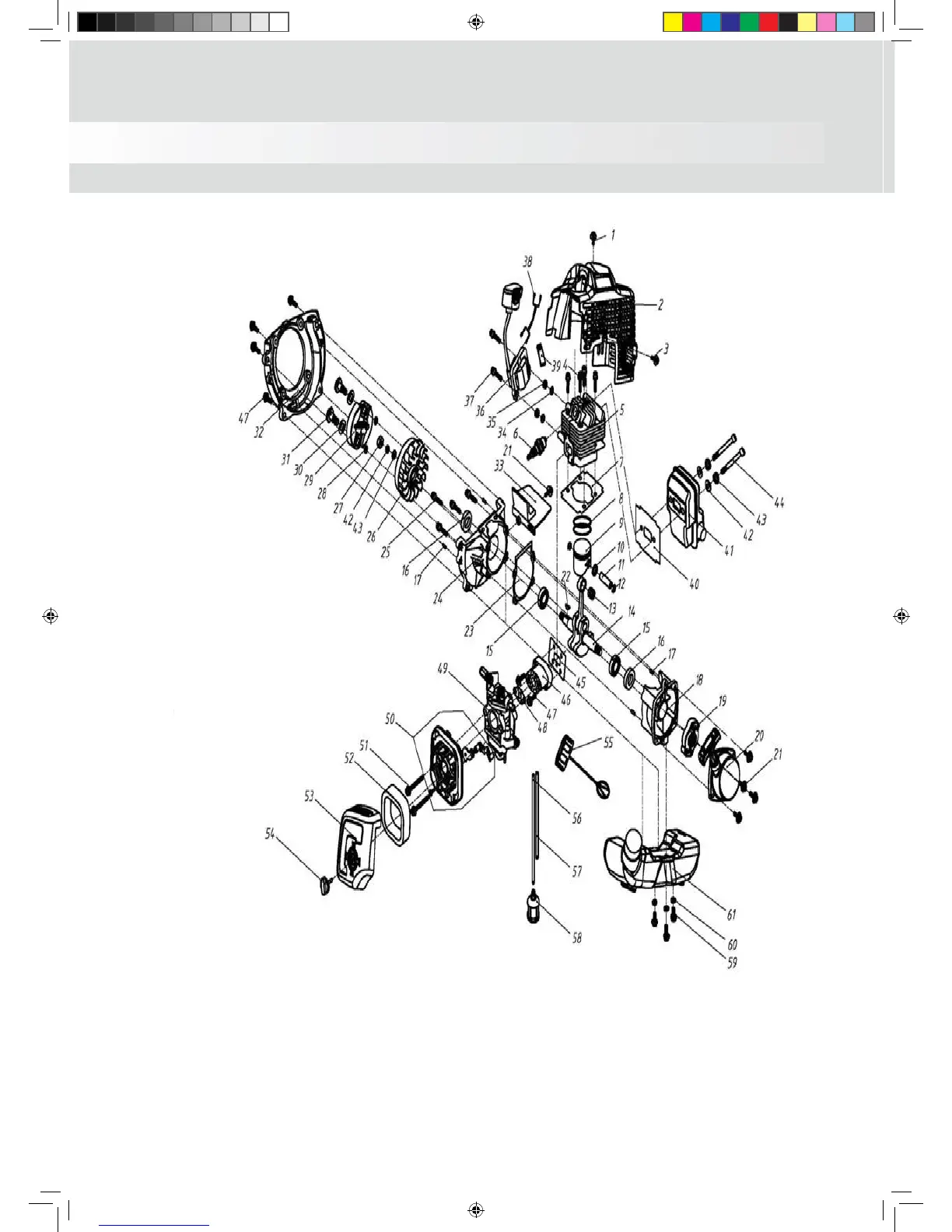

PARTS DIAGRAM - WELT26 Engine
PARTS LIST - WELT26 Engine
Item No.
Part No.
Description
Qty
Item No.
Part No.
Description
Qty
1
WE03010110121
Screw M5x12
1
32
WE70070030026
Cover
1
2
WE70030030853
Engine Cowling
1
33
WE70030030164
Guide
1
3
WE03020020055
Screw GB/T9074.4
M4x12
1
34
WE03040020012
Washer GB/T97.1 4
2
4
WE03010010062
Screw M5x20
4
35
WE02070010048
Spacer
2
5
WE70070130069
Cylinder
1
36
WE02050030229
Ignition Coil
1
6
WE03130010013
Spark Plug RCJ6Y
1
37
WE03020020054
Bolt GB/T9074.4 M4*20
2
7
WE02070010032
Cylinder Gasket
1
38
WE02050050213
Electrical Connections
1
8
WE02020020003
Piston Ring
2
39
WE02080030042
Rubber
1
9
WE02010020005
Piston
1
40
WE02070010162
Exhaust Gasket
1
10
WE02020150002
Stop Ring
2
41
WE02050010138
Exhaust
1
11
WE02020010004
Piston Pin
1
42
WE03050010008
Washer GB/T93 8
1
12
WE02020030017
Piston Pin Retainer
2
43
WE03040020018
Washer GB/T97.1 8
1
13
WE03090020018
Needle Bearing
1
44
WE03010010077
Bolt M5x55
2
14
WE02020120023
Crankshaft
1
45
WE02070010019
Side Gasket
1
15
WE03090010028
Bearing GB/T276
6001/P5
2
46
WE70030020016
Insulator
1
16
WE03100010009
Seal 12x22x7
2
47
WE03020020012
Bolt GB/T9074.4 M5*20
6
17
WE03060010002
Pin
4
48
WE02070010071
Carburettor Gasket
1
18
WE70070050038
Rear Crankcase
1
49
WE02050020101
Carburettor
1
19
WE02050100015
Starter Pawl
1
50
WE70080120007
Air Filter Housing with
Choke
1
20
WE02050070090
Recoil Assembly
1
51
WE03020020044
Bolt GB/T9074.4 M5*55
2
21
WE03020020029
Screw GB/T9074.4
M4*16
5
52
WE02090010011
Air Filter
1
22
WE03070010001
Woodruff Key
3x3.7x12
1
53
WE70030040225
Air Filter Cover
1
23
WE02070010119
Crankcase Gasket
1
54
WE02110030079
Air Filter Screw
1
24
WE70070050039
Front Crankcase
1
55
WE02110020026
Fuel Tank Cap Assembly
1
25
WE03010010058
Bolt M5x25
4
56
WE61330010017
Fuel Inlet Pipe
1
26
WE02050030020
Flywheel
1
57
WE61330010018
Fuel Outlet Pipe
1
27
WE03030020003
Nut M8
1
58
WE02050120002
Fuel Filter
1
28
WE03040050052
Washer
φ6*15*1.2
2
59
WE03020020027
Screw GB/T9074.4
M5*16
3
29
WE02050160002
Clutch Assembly
1
60
WE03040050022
Washer φ5*15*1
3
30
WE03040050042
Washer
2
61
WE70050030170
Fuel Tank
1
31
WE02020130001
Clutch Bolt
2
