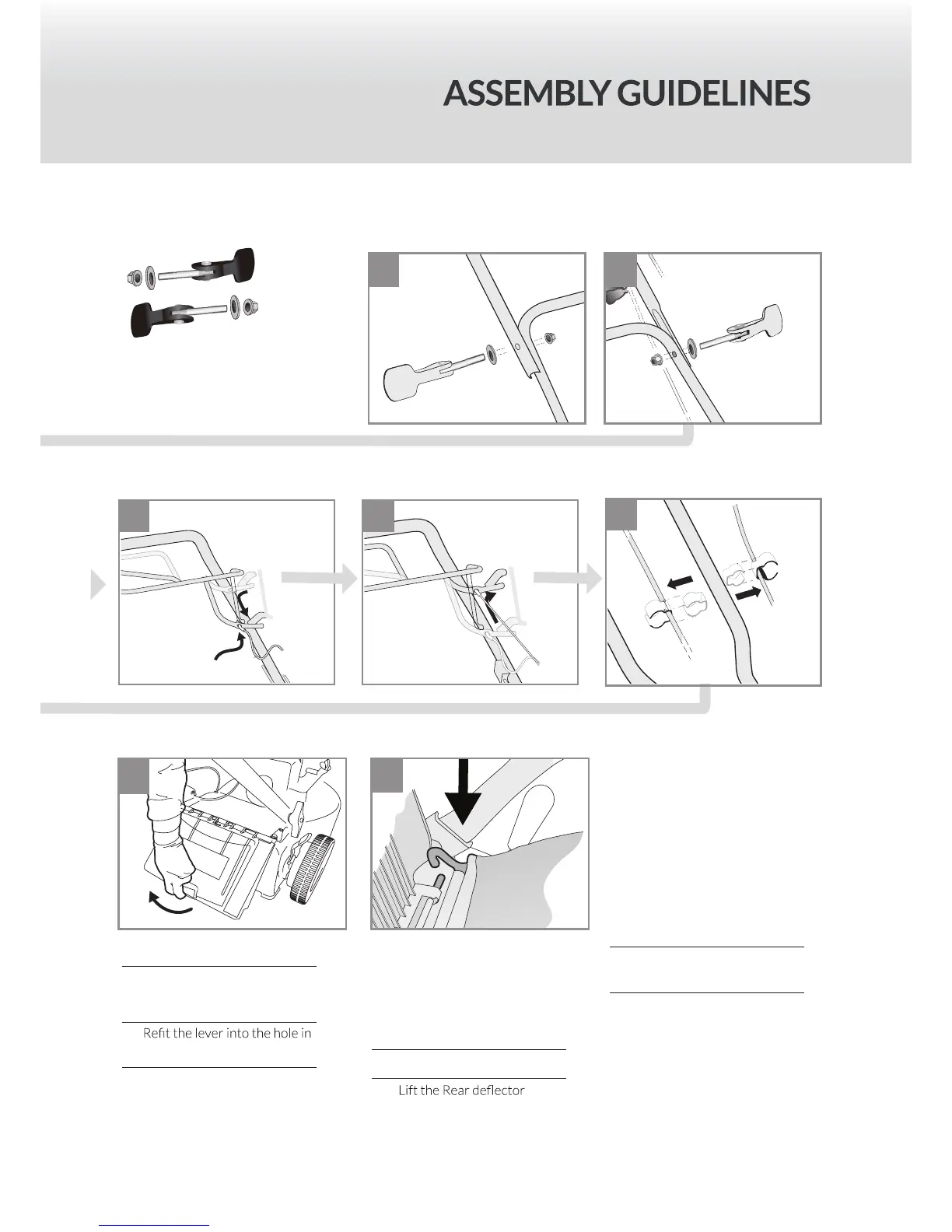

Webb WER16HP - Assembly Guidelines; Upper Handlebar Assembly; Attaching the Grass Catcher

2. UPPER HANDLE BAR ASSEMBLY
4. ATTACHING THE DRIVE CABLE
5. FIT THE CABLE CLIPS
5. FIT THE CABLE CLIPS
2a 2b
7a
7b
4. Aaching the Drive Cable
4a.
Pull the drive lever out of the
left side hole and lower
towards the mower.
4b.
the mower handle
5. Fit the Cable Clips
Push the cable clips into place.
Parts required:
2 x Quick Release Handle Assemblies
6. Locate the Starter Cord
Pull the stater cord upto the
spring. holding the cord at the
lower side of the spring rotate
the string clockwise around
the spring.
7. Aach the Grass Catcher
7a.
with one hand.
7b.
Lower the Grass catcher
hooks onto bar, left and right.
4a 4b
5
INSTRUCTION MANUAL
