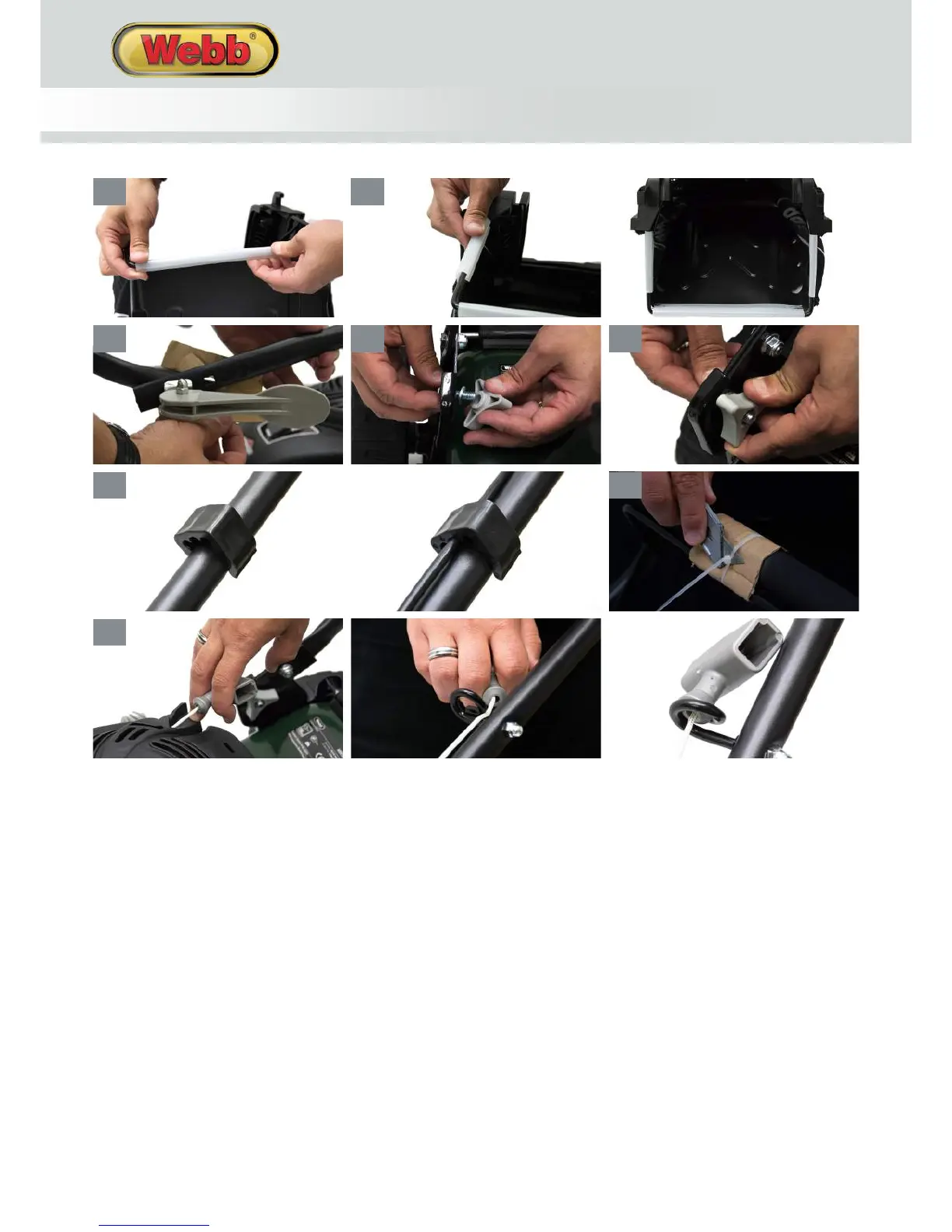

1. Grass Collector
The three securing tabs on the
collector bag, need to be attached
to the collector frame.
1a. Start with the larger bottom
securing tab and hook over the
collector frame.
1b. Repeat with the two side securing
tabs.
2. Handle Assembly
The handle assembly can now be
unfolded, however follow the below
step rst.
2a. Slightly lift the upper handle and
remove the two cardboard packaging
sleeves tted around the Quick
Release Handle assembly.
2b. Remove both lower handle tristar
knobs, by rotating anti-clockwise,
washers and square neck bolts from
the handle xing brace.
2c. Pull the complete handle assembly
upwards from the main handle and
secure the upper and lower handles,
by securing with the quick release
handles on both side. Ensure the
upper handle sits within the metal
collar of the quick release handle.
Tighten the quick release handle, by
rotating the tristar knob clockwise.
2d. If the quick release handle cannot
be moved, the tristar knob is too tight
and needs to be loosened slightly,
anti-clockwise.
2e. Secure the lower handle to the
handle xing brace by retting the
lower handle using the previously
removed square neck bolts, washers
& tristar knobs, by rotating clockwise.
Ensure the tristar knob is located on
the inside of the handle assembly.
2f. Now secure the cables to the
handle assembly, using the supplied
cable clip.
2g. Cut the cable tie, holding the OPC/
Brake Lever against the main handle
and dispose of the cable tie and
cardboard.
2h. For your convenience, the machine
has been tted with a ‘pigstail’ located
on the upper handle, to house the
engine recoil starter handle. With the
OPC/Brake handle pulled up to the
upper handle, pull the engine recoil
starter handle up to the pigstail and
house.
The mower is supplied without oil in the
engine. Refer to the B&S engine manual
before starting the engine for the first time.
Firstly, remove the warning label
from under the dipstick, then
remove the dipstick and slowly
pour SAE30 or 10W/30
lawnmower grade engine oil int
the engine via the oil filler (as directed by
thr B&S engine manual).
Replace the dipstick and tighten.
Before you use the mower each
time, check the oil level (fig. 2) and
if necessary top up with SAE30
or 10W/30 oil. To check the oil level,
unscrew the yellow dipstick, wipe
with a rag and replace into the oil
filler (do not screw back in place),
remove the dipstick again and
check the level.
The oil level must be between the
min and max marks on the dipsick
(fig.3). Replace the dipstick and
screw into place.
Petrol is highly flammable so
extreme caution must be taken when
handling it. Always store petrol in
approved containers and you must
ensure that you use fresh petrol that it
less than 4-6 weeks old. Do not mix oil
with petrol.
To put petrol in the fuel tank, firstly
remove the warning label from
under the petrol cap. It’s best to fill
the tank using a clean funnel, but
never fill it completely (fig. 4).
Instead, leave at least 13mm from
the bottom of the filler neck to
allow for expansion. Ensure that
you securely tighten the petrol cap
after filling. (Funnel & fuel not
supplied).
