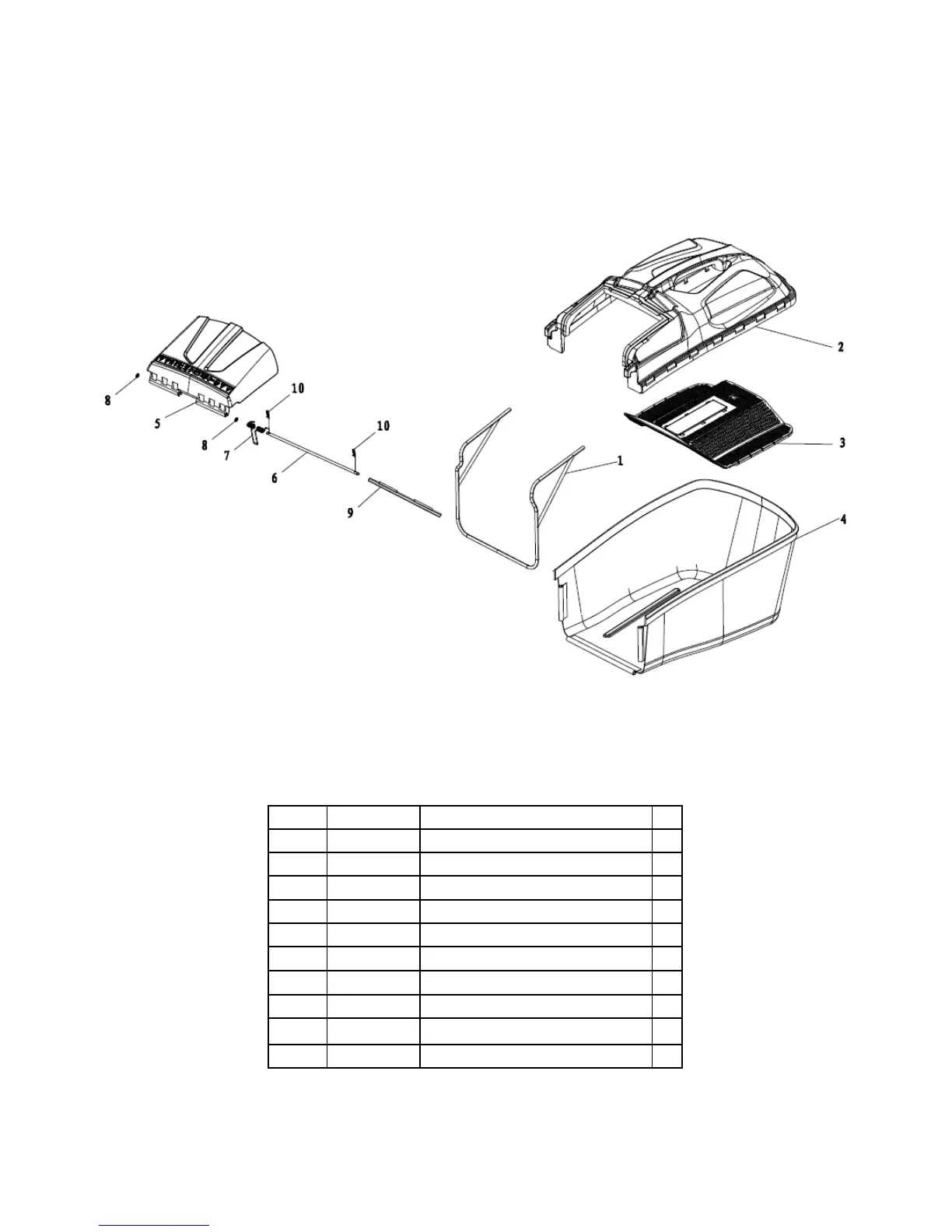

PARTS DIAGRAM - GRASS COLLECTOR ASSEMBLY
Item No Part Number Description Qty
1 WE113-58 Grass Box Frame 1
2 WE113-59 Grass Box Top 1
3 WE113-60 Filter Plate 1
4 WE113-61 60L Grass Box Bag (Unbranded) 1
5 WE113-62 Rear Discharge Cover 1
6 WE113-63 Rear Discharge Cover Shaft 1
7 WE113-64 Rear Discharge Cover Spring 1
8 WE113-65 Lock Washer 6 2
9 WE113-66 Rear Discharge Cover Dust Board 1
10 WE113-67 R Pin 1.5x25 2
To Next Page
