Webb WEV20PHT - Parts Diagram & List

PARTS LIST
Item
No.
Part No.
Webb Description
QTY
Item
No.
Part No.
Webb Description
QTY
1
WE144-
301062752
Blade Cover
1
24
WE145-
301062922
Left Connection
1
2
WE144-
102010429
Motor Assembly
1
25
WE145-
103040105
Copper Insert
2
3
WE144-
104040178
Hex Bolts
2
26
WE145-
301062924
Plug Sheath
1
4
WE144-
104010086
Spring Washer
2
27
WE145-
301062923
Right Connection
1
5
WE144-
103990628
Support Bar
1
28
WE145-
301062760
Angle Adjusting Sleeve
1
6
WE144-
301062873-1
Gearbox Assembly
1
29
WE145-
103060232
Angle Adjusting
Spring
1
7
WE144-
103070100
Big Gear Wheel
1
30
WE145-
301062914
Socket Sheath
1
8
WE144-
4990076-1
Blade Assembly
1
31
TH104030159
Self-Tapping
Screw
4
9
WE144-
103990627
Washer
2
32
WE145-
103040104
Copper Insert II
2
10
WE144-
103040103
Flat Washer 2
2
33
WE145-
301062911
Tube Ring
1
11
WE125-
104020017
Lock Nut
2
34
WE145-
301062913
Internal Thread
Locking Sleeve
1
12
WE145-
301062920
Right Housing
Assembly
1
35
WE145-
4990141
Telescopic Tube
Assembly
1
13
WE144-
103070102
Motor Gear
1
36
WE145-
301062909
Right Handle
1
14
WE144-
104030081A
Triple Screw
Assembly
2
37
WE145-
103060235
Main Switch Knob
Spring
1
15
WE144-
104010149
Shim
5
38
WE145-
301062774
Main Switch Lift
1
16
WE144-
103070101
Mid Gear
1
39
WE145-
102080497
Spring Line
Assembly
1
17
WE124-
104050028
Split Washer
1
40
WE145-
102080498
Power Supply
Connector Assembly
1
18
WE144-
103070099
Eccentric Gear
1
41
WEV202AH
2Ah Battery
1
19
WE144-
103990626
Gear Box Cover
1
42
WE145-
301062910
Left Handle
1
20
WE145-
102080503
Internal Conductor
Assembly
1
43
WE145-
102020344
Switch
1
21
WE145-
301062921
Left Housing
Assembly
1
44
WE145-
301051100
Locking Press
Button
1
22
WE124-
104030136
Self-Tapping
Screw ST4.2x15
25
45
WE143-
103060183
Safety Button Spring
1
23
WE145-
301062756
Angle Adjusting
Button
1
46
WE143-
CHARGER
0.5ah Charger
Assembly
1
47
WE144-
301062874
Motor Cover
1

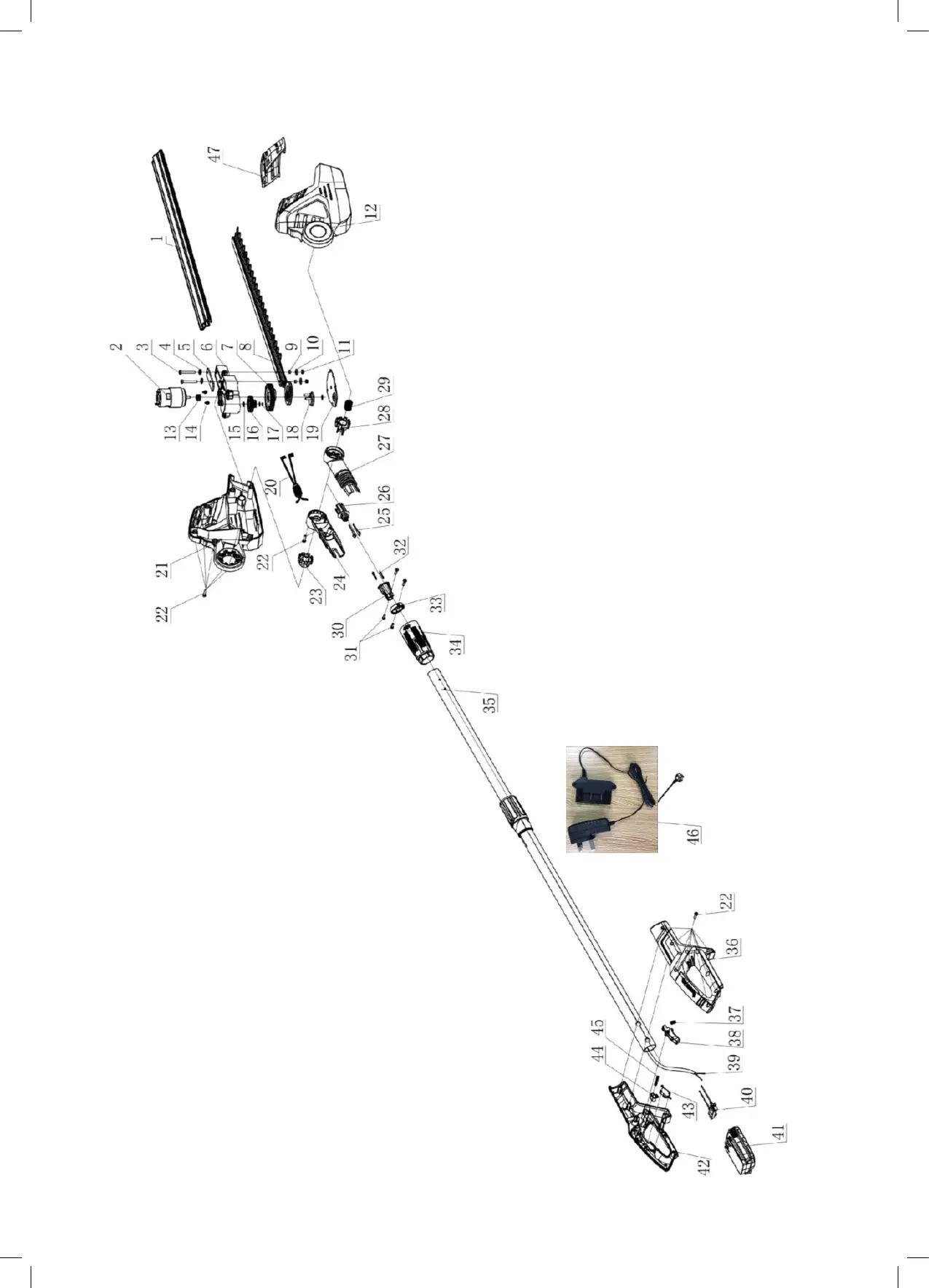

PARTS DIAGRAM
