2.4.3 Fitting the Damper Plate
-Put the soil compactor out of operation as described
in paragraph 2.7.
- The spring bar (8/2) must be engaged.
Warning!
If the spring bar is not engaged, the soil
compactor cannot be held in tilted position.
- Push the handle (8/1) down to lift the front part of
the soil compactor.
- Put the damper plate (9/1) under the base plate (9/
4).
-Fix the damper plate (9/1) with the iron bar
(9/2) and the screws (9/3) at the front of the base
plate (9/4).

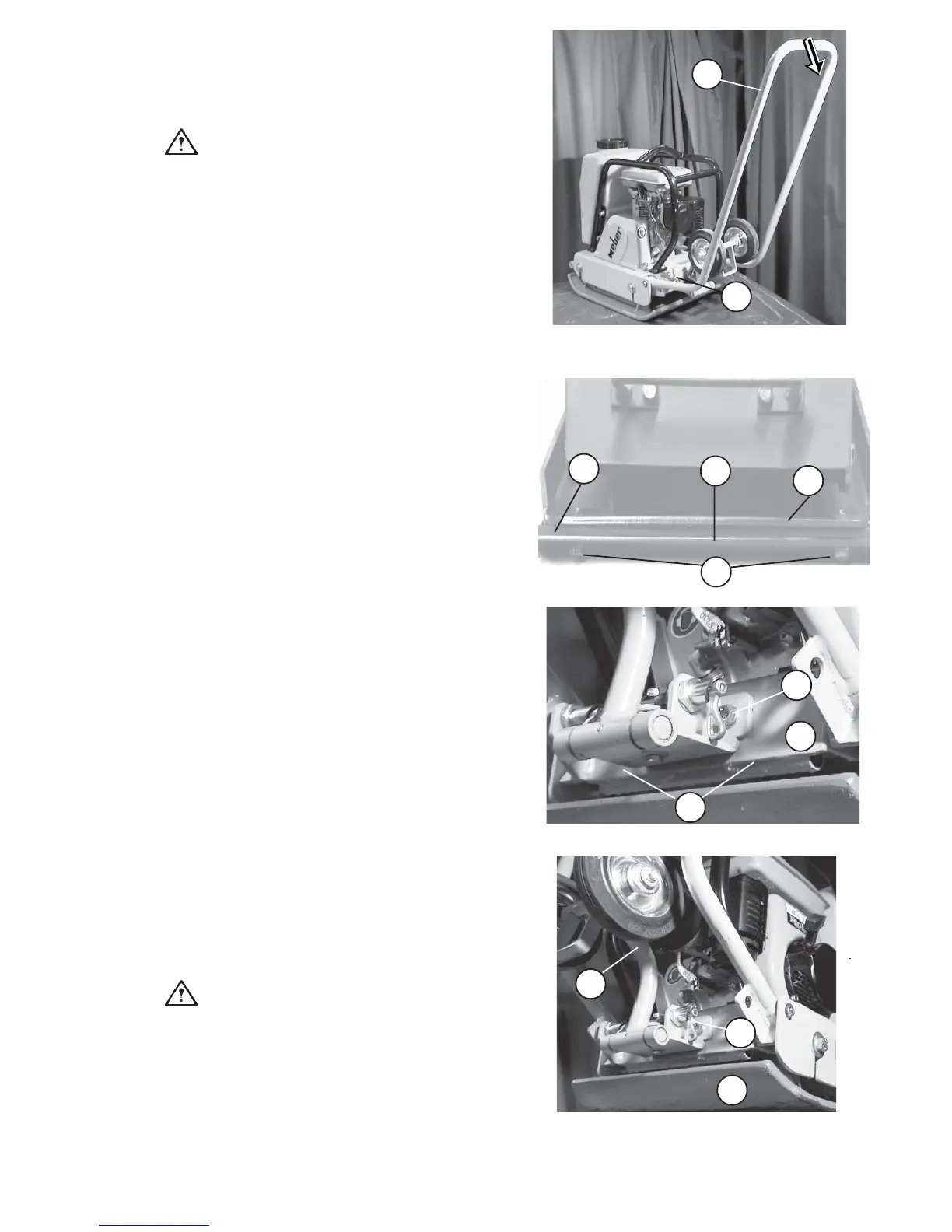

Figure 9
Figure 8
Figure 10
Figure 11
1
2.4.4 Fitting the Undercarriage
-Tighten the two screws (10/2) to fit the undercarriage
(11/1) to the engine bracket
(10/3).
- Push the handle (8/1) down and lock it by means of
the locking lever (8/2).
- Loosen the locking lever (11/2) and fold down the
undercarriage (11/1).
- Use the handle (8/1) to tilt the machine to the front
and swing the undercarriage (11/1) beneath the
base plate (11/3).
-In the working position, the undercarriage
(11/1) is folded up and locked in this position by
means of the locking lever (11/2).
Caution!
During compaction, the locking lever (11/2)
must be locked!!
