Weber 500 Series User Manual

Frame brace
Manifold bracket
13

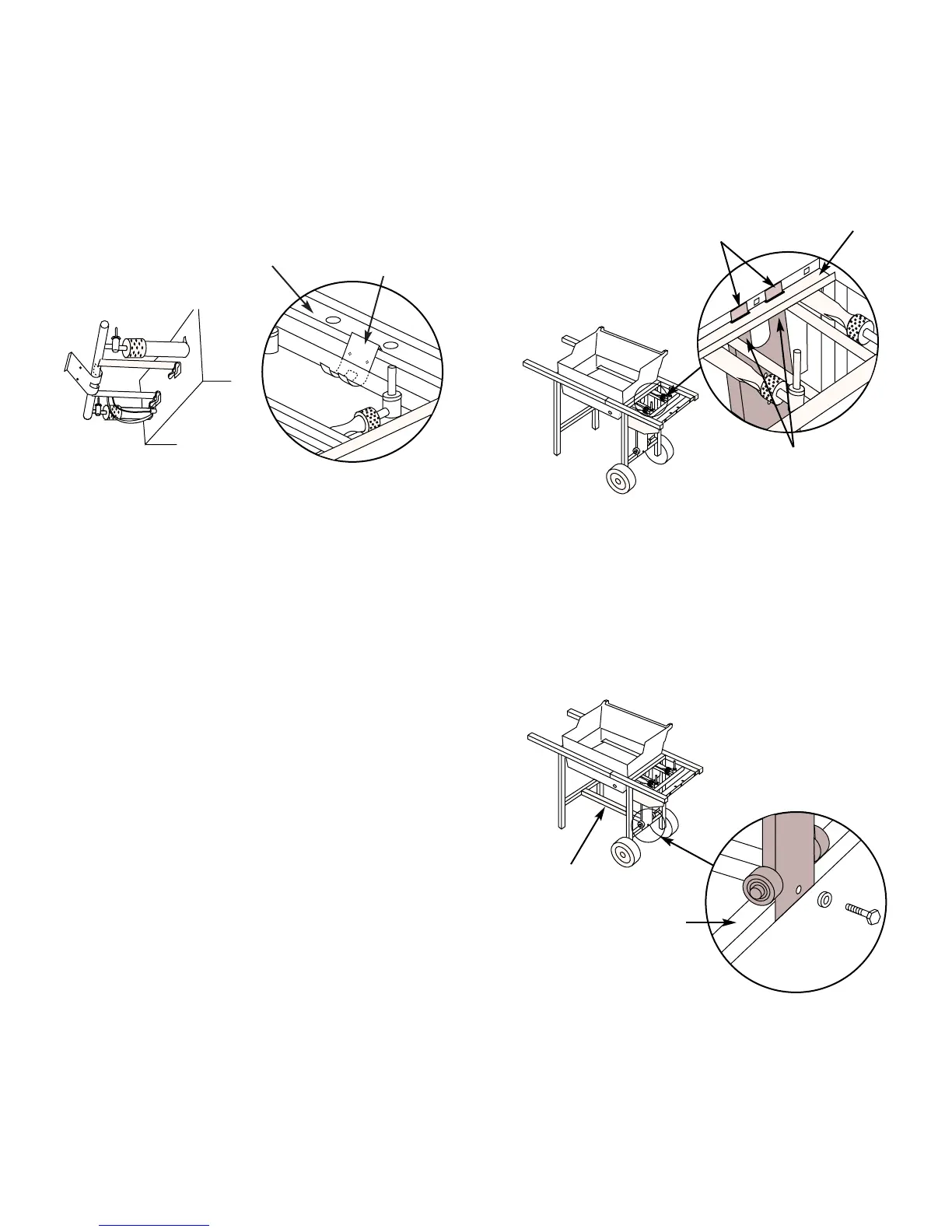

Figure 9
Figure 10
Figure 11
Frame
connector
Cross brace
Tank panel tabs
Slots in frame brace
Frame brace
Step 8
Install manifold bracket
You will need: manifold bracket
Hook the bracket onto the manifold at approximately the
center of the length of the manifold. Place your hand
underneath the bracket. Lift the manifold, bracket and
cooking box slightly and hook the tab of the bracket onto
the frame brace. Figure 9.
Step 9
Install tank panel assembly and frame connector
You will need: tank panel assembly, frame connector, two
1/4-20 x 1 3/4 inch bolts, two nylon washers and a 7/16 inch
wrench.
Insert the tank panel tabs into the slots in the frame brace.
Figure 10.
Slide tank panel up until notch at bottom of panel fits over
the cross brace. Insert one bolt with washer through the
hole in the bottom of the tank panel, through the wheel
frame and into the end of the frame connector. Insert the
other bolt with washer through the leg frame and into the
other end of the frame connector. Hold the frame connector
square and tighten the bolts. Figure 11.

Weber 500 Series Specifications

General

Grill Category	Gas
Fuel Type	Propane
Number of Burners	3
Ignition System	Electronic
Side Burner BTU	12, 000 BTU
Grates Material	Porcelain-enameled cast iron
Dimensions	Varies by model
