quickstart | basic usage
1 - Locate. Find a flat, dry counter space with access to a
power outlet. The EG-1 is made to be usable in 90v ~ 240v
regions without the need for a separate transformer.!It uses a
C13 style cable (such as a computer) that can be purchased
locally as needed. A US-style 3 prong cable is included inbox."
2 - Remove from box. Using both hands, carefully pull the
EG-1 straight out of the packaging.!Use caution when pulling it
out -- it is heavy."

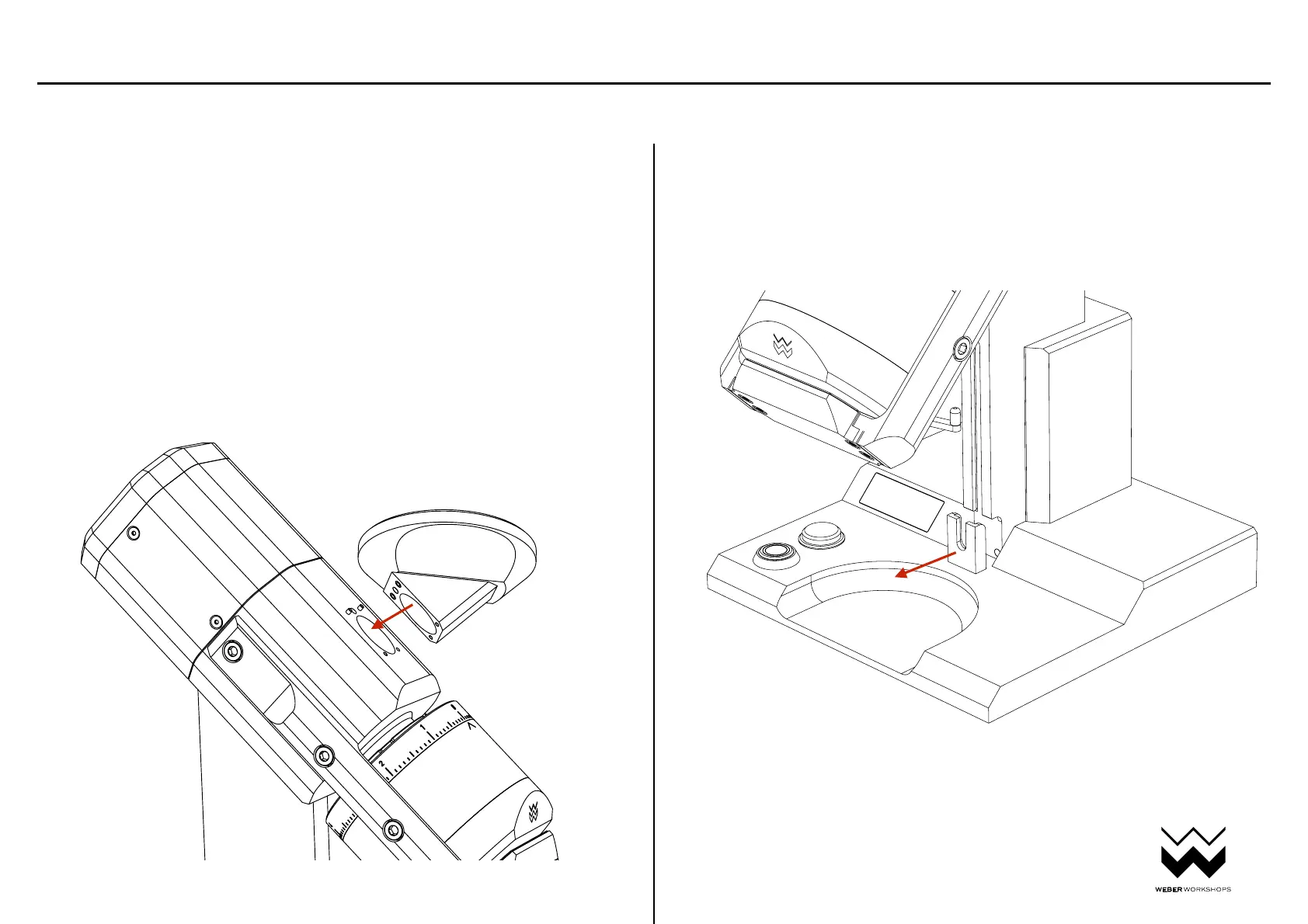

3 - Put on the Bean Dish. This attaches as shown so that the
stainless dowel pins align the part and the magnet holds them
together."
4 - Put on the PF (Portafilter) Rail. The PF Cover is removed
(as shown) and we recommend starting with just the circular
rail to accommodate the Blind Shaker. Usage of the rails and
the Blind Shaker can be found on our Youtube Channel.
attach
bean dish
pull off
rail cover
3
Copyright 2020 Weber Workshops, manual version 1.0
