Step 4
Continue frame assembly
You will need: Wheel frame, caster frame, two bottom
connectors, four 1/4-20 x 3 1/2 inch bolts, four nylon
washers and a 7/16 inch or adjustable wrench.
Turn caster frame and wheel frame upside down, and
space apart. Figure 3.
Note: Fuel scale decal on wheel frame must be on
the back side.
Hold one bottom connector up to the wheel frame, slots
to
the outside. Add the nylon washer to the bolt. Put the
bolt through the frame and screw into frame connector.
Tighten bolt with a 7/16 inch or adjustable wrench.
Hold the other end of the frame connector up to the
caster frame, slots
to the outside. Add the nylon washer
to the bolt. Put the bolt through the frame and screw
into the bottom connector. Tighten.
Repeat with the other bottom connector.

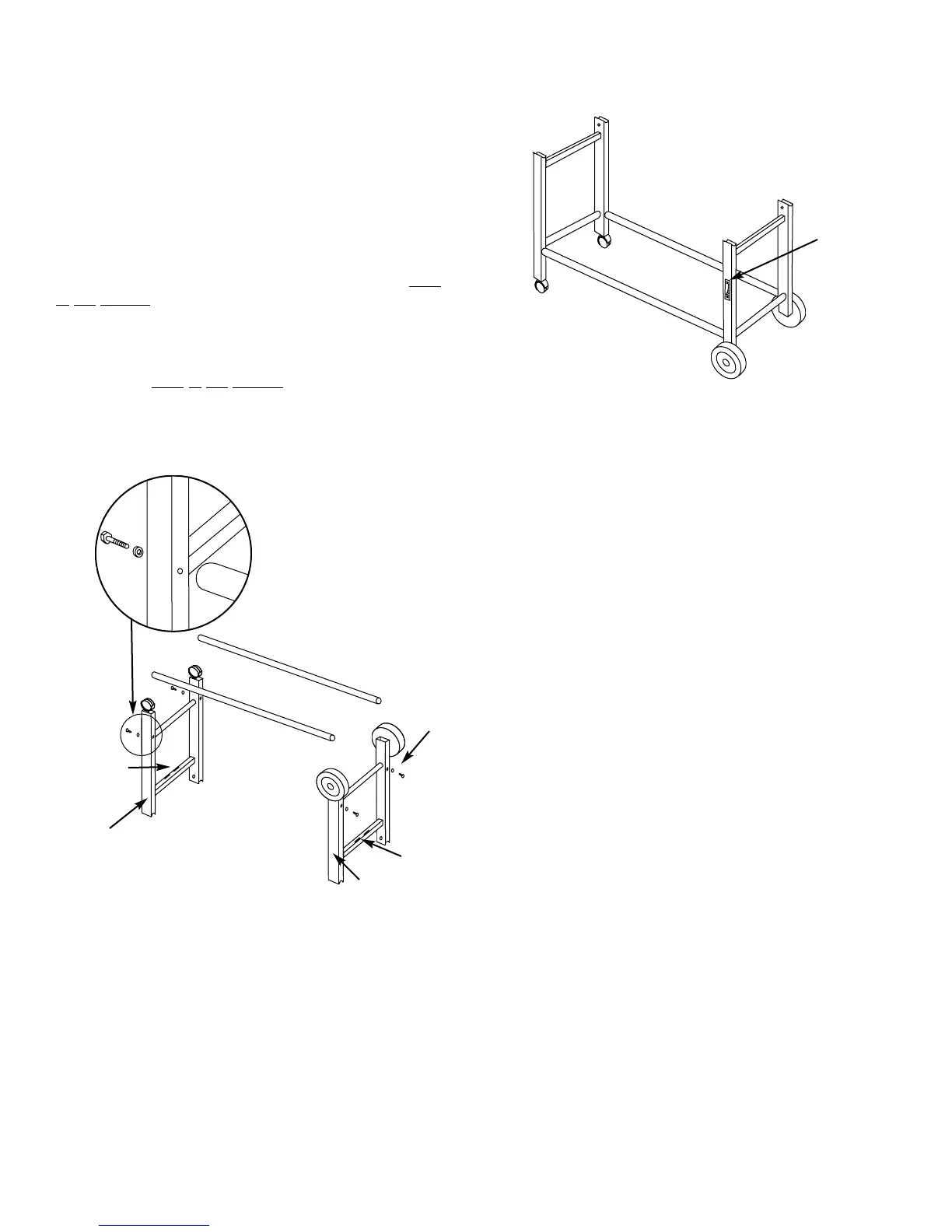

Figure 3
Figure 4
(a)
Fuel scale
decal on
back side
Fuel scale
decal
Caster frame
slots to the
outside
Wheel frame
slots to the
outside
Turn frame assembly right side up. The fuel scale decal
should be toward the front. Figure 4.
