Step 22
Install splash guards
You will need: two splash guards

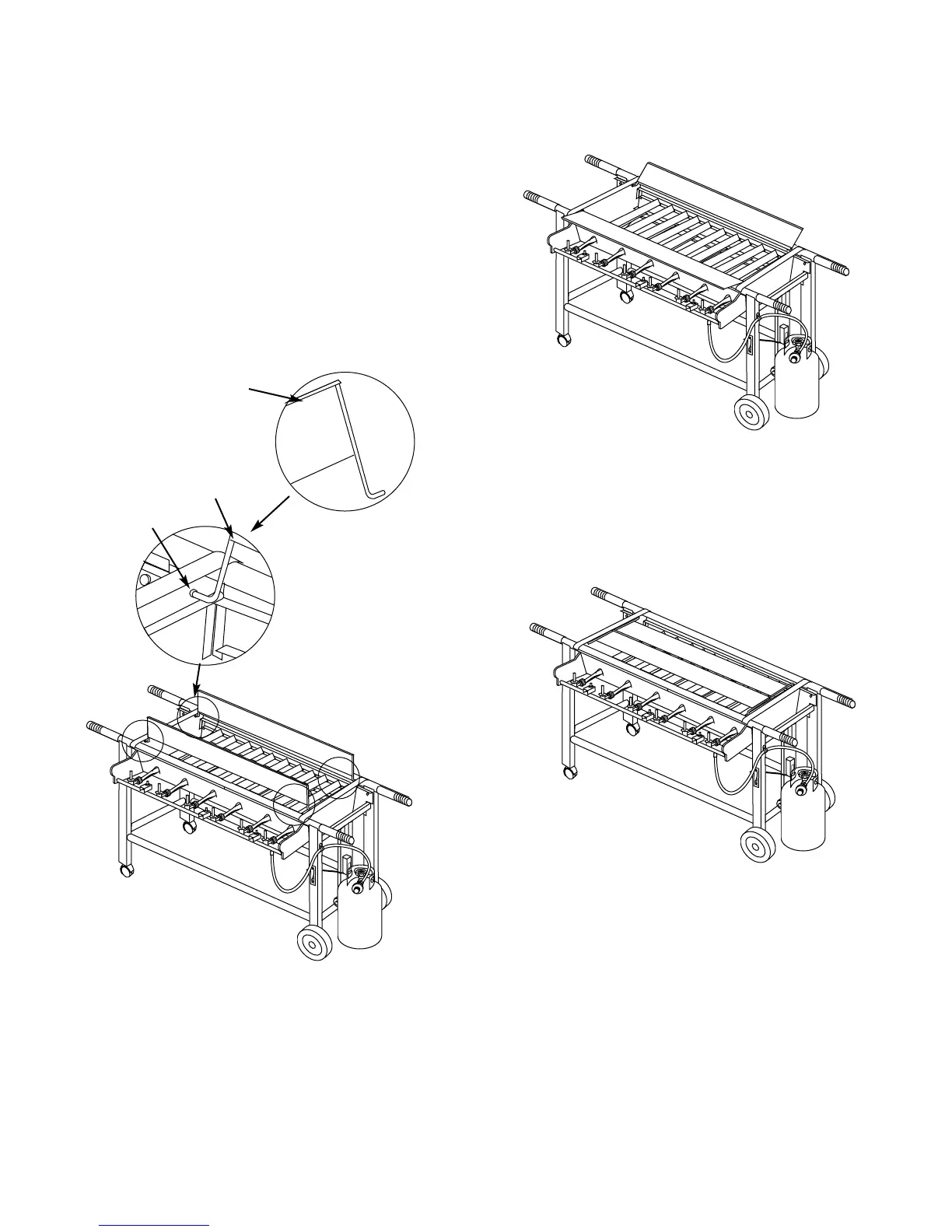

Position splash guard, flanges to the rear, at the back of
the cooking box assembly. Figure 31 (a). Insert both
wire ends into the mounting holes in the cooking box.
Figure 31.
Note: You will have to bend the splash guards slightly
to fit into the mounting holes.
Position the second splash guard, flanges facing you, at
the front of the cooking box assembly. Insert both wire
ends into the mounting holes in the cooking box.
Figure 31.
Figure 32
Figure 31
(a)
(b)
Figure 33
Splash guards open for use. Figure 32.
Splash guards closed for storage. Figure 33.
Flanges at the
back of the
splash guards
Mounting holes
Splash guards
