Weber JUMBO JOE PREMIUM User Manual

2

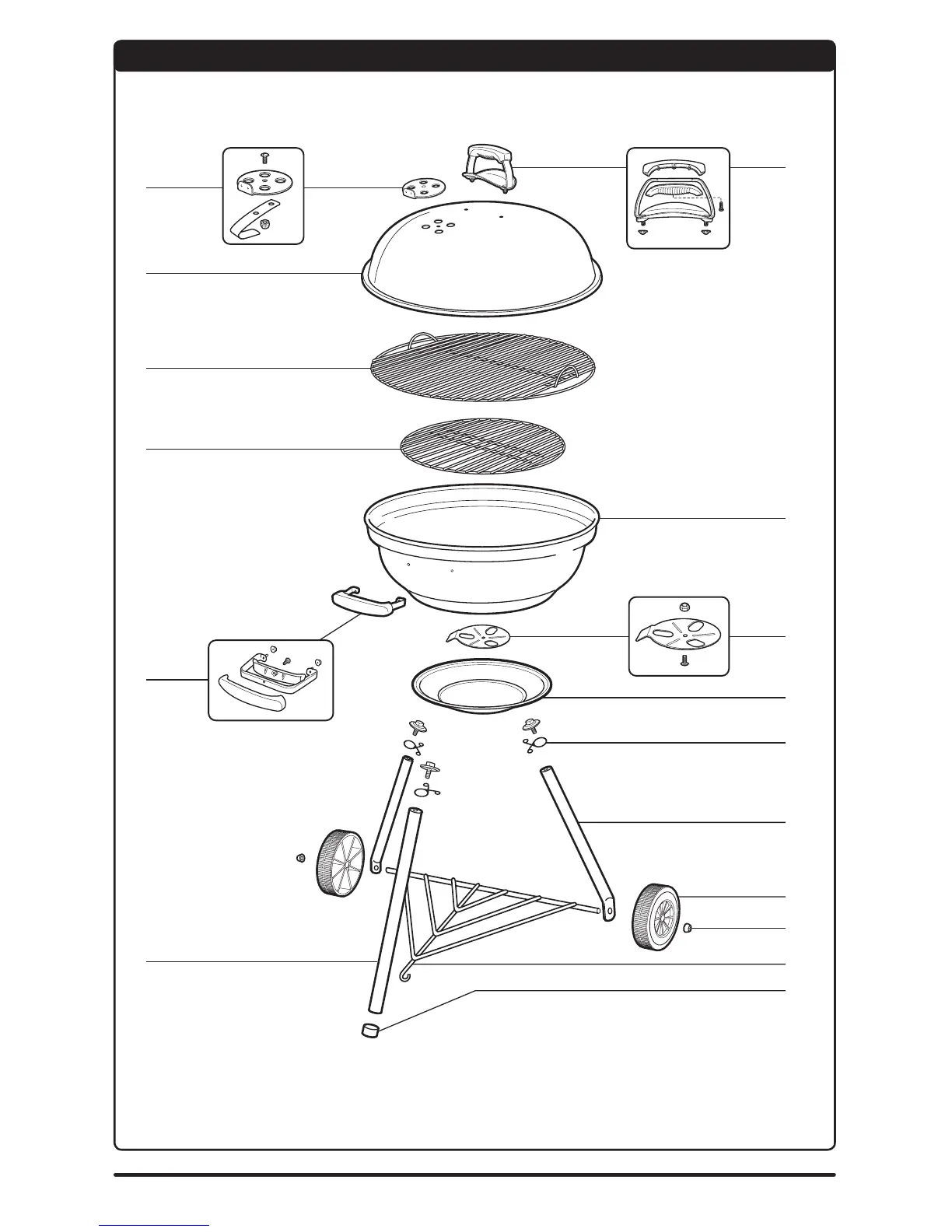

EXPLODED VIEW,
Jumbo Joe
®
Premium_XV_US_053014
1: Lid Damper Assembly
2: Lid
3: Cooking Grate
4: Charcoal Grate
5: Bowl Handle Assembly
6: Front Leg
7: Lid Handle Assembly
8: Bowl
9: Bowl vent Assembly
10: Ash Catcher
11: Ash Catcher Clip
12: Wheel Leg
13: Wheel
14: Hub Cap
15: Triangle
16: Leg Cap
17:
18: Hinged Cooking Grate
19: V Charcoal Grate
20: Char-Baskets
20: Wire Rails
21: Disposable Drip Pan
22:
1
2
3
4
6
7
8
9
10
12
11
13
14
15
16
17
5
17 1918 20 21
