ig Series HMI Installation Manualig V2.0
4
1
2
3
4
5
6 789
10
11 12

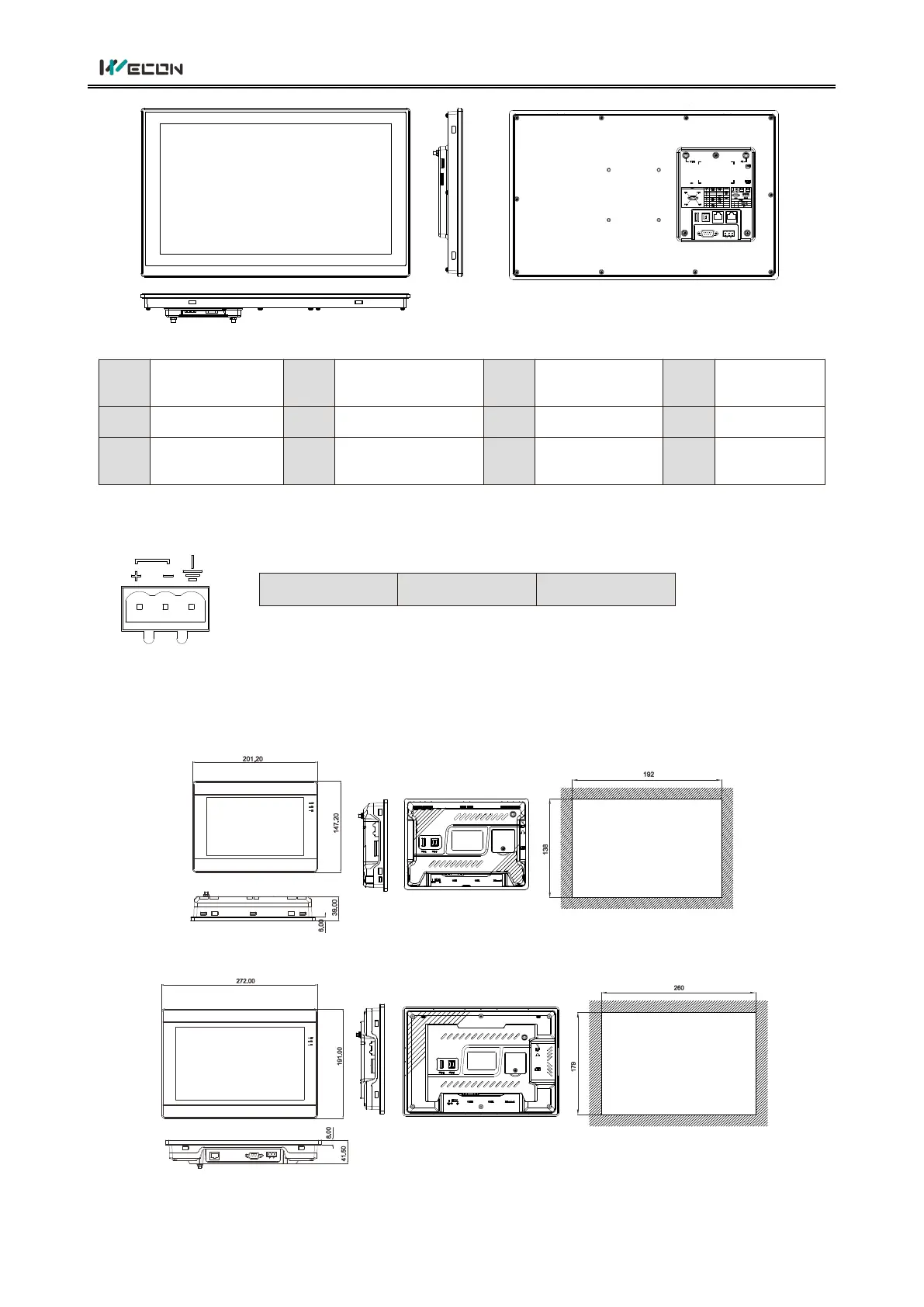

PI8150ig(N)/ PI8150ig-C(N) Components description
1
LCD and touch
screen
2
Fixed buckle
3
TF card slot
4
Power terminal
5
COM
6
Ethernet 1
7
Ethernet 2
8
USB-A
9
USB-B
10
SIM card slot
(optional)
11
WIFI antenna
(optional)
12
4G antenna
(optional)
The power interface is defined as follows (from left to right):
24V+ 24V-
GND
Part8 The Size Of Product
Unit ：mm ，error range : ±0.5mm
PI3070ig / PI8070ig installation size
PI3102ig / PI8102ig installation size
DC 24V+
DC24V-
GND
