Weed Eater BC2400 - Safety Rules Continued; Unit and Maintenance Safety; Fuel Safety Practices; Cutting Safety Guidelines

R
POULAN PARTS LIST
R
R
POULAN PRO PARTS LIST
PARAMOUNT PARTS LIST
R
WEED EATER PARTS LIST
R
REPLACES
3
Note:
Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
MODEL(s)
530087791
BC2400
DATE
6/25/01
530087791--9/9/999
=
NEW PART NUMBER FOR THIS IPL
n
=
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
D
K
=
THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.
Carb.
Repair
Kit
1. 530069829 Carburetor Repair Kit
(KIT= Indicates Contents)
2. 530038318 Limiter Cap (High--Red)
3. 530038317 Limiter Cap (Low--Blue)
4. 530069844 Gasket/Diaphragm Kit
(D=Indicates Contents)
5. 530035293 Needle Spring--Low Speed
6. 530035433 Needle--Low Speed
7. 530035295 Needle Spring--High Speed
8. 530035388 Needle--High Speed
Ref. Part No. Description
KIT
D
KIT
1
2
3
KIT
KIT

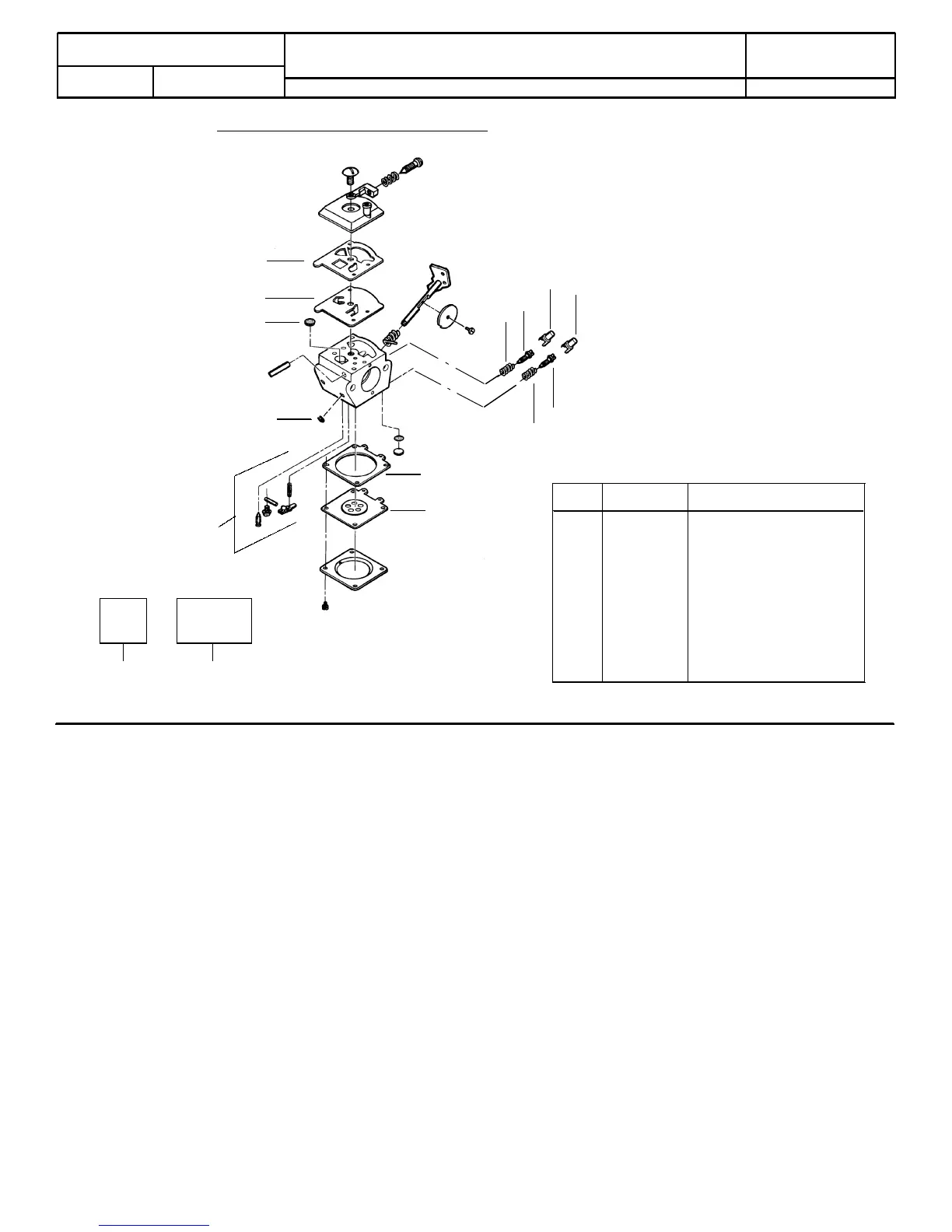

Carburetor Assembly No. 530069998
Gasket/
Diaphragm
Kit
4
5
6
7
8
KIT
D
KIT
D
KIT
D
