10

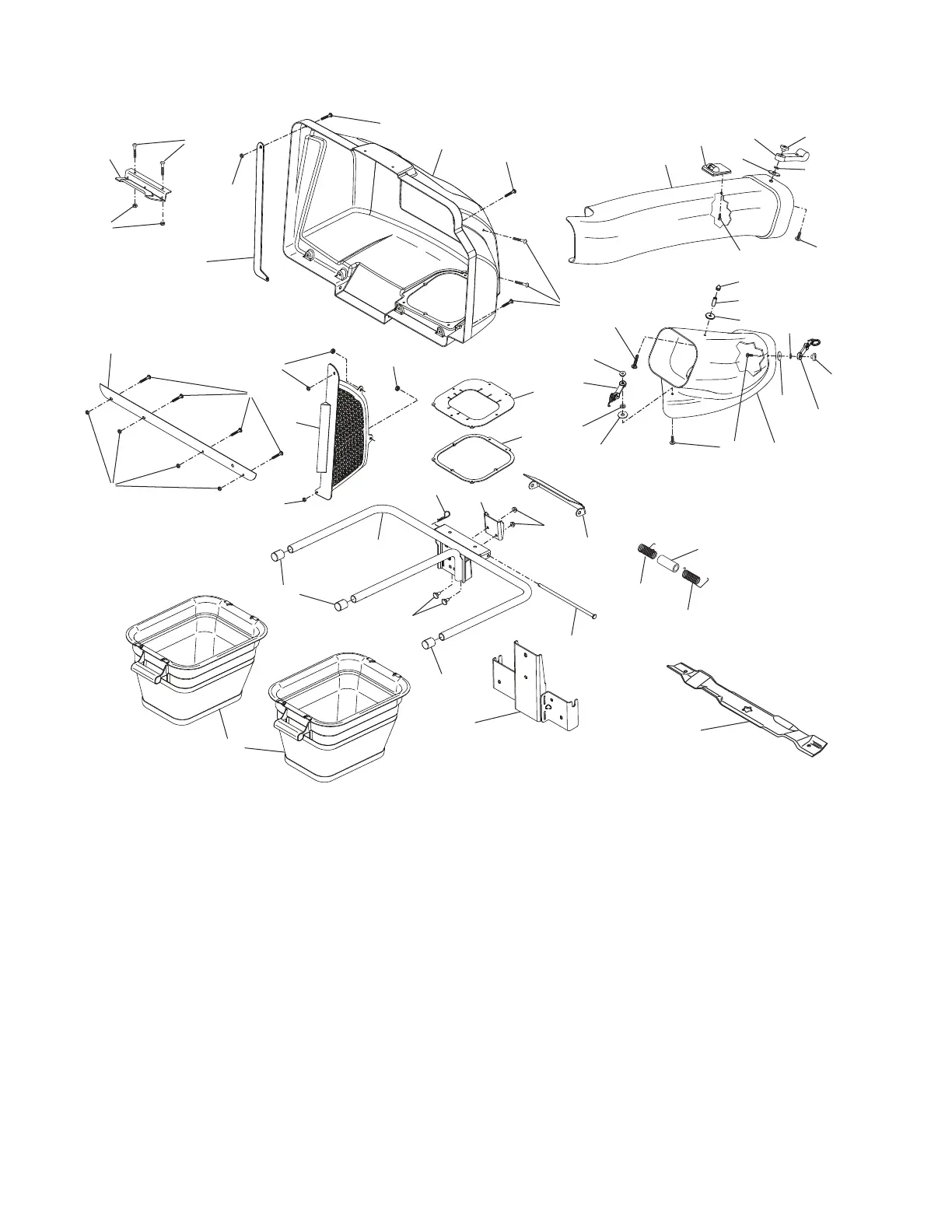

REPAIR PARTS
GRASS CATCHER - - MODEL NUMBER G30LRV (PRODUCT NO. 960 73 00-36)
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
2 532 06 91-80 Nut, Crown lock #10-24
3 532 12 75-33 Screen, Cover
4 532 43 66-15 Cover Assembly (Includes 3, 38, 39)
5 584 46 78-01 Chute, Upper
6 818 02 10-08 Screw, Special #10-14 x 1/2
7 532 13 09-33 Full Bag Indicator
8 532 08 71-75 Screw, #10-24 x 1-1/8
9 532 05 27-84 Washer 3/16 x 3/4 x 16 Ga.
10 532 17 13-45 Spacer, Split
11 532 06 08-67 Nut, Acorn #10-24
12 810 07 10-00 Washer, lock
13 532 10 98-08 Latch, Chute
14 532 12 50-04 Nut, Weld
15 532 16 07-93 Latch, Hook
18 532 43 64-53 Chute, Lower
20 871 08 10-10 Screw #10-24 x 5/8
21 532 13 27-96 Spring, Cover L.H. (black)
22 532 13 32-35 Spacer, Cover
23 532 13 29-83 Spring, Cover R.H. (Gray)
24 581 55 51-02 Support Assembly
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
2
20
20
38
105
106
24
40
32
33
21
23
9
7
12
14
13
22
31
31
104
103
35
101
34
26
102
39
2
20
20
4
20
20
6
2
5
2
2
2
3
9
10
11
9
12
15
14
8
12
14
15
18
9
20
LRV_bagger_9
26 532 12 46-70 Spring, Retainer
31 532 17 40-83 Plug, Tubing End
32 532 17 97-46 Bagger, Frame
33 532 19 27-86 Pin, Hinge
34 532 44 20-65 Gasket, Cover
35 532 43 68-10 Container
38 532 13 08-95 Latch Handle, Cover
39 532 15 50-42 Strip, Reinforcement
40 532 41 92-73 Blade
101 532 44 20-65 Gasket
102 873 90 05-00 Nut
103 532 44 21-04 Bracket
104 532 42 42-97 Bolt
105 532 44 25-26 Bracket
106 532 44 41-03 Bagger Spring Bracket
- - 585 54 37-27 Grass Catcher, Manual , English/French
- - 585 54 37-46 Grass Catcher, Manual, Spanish
