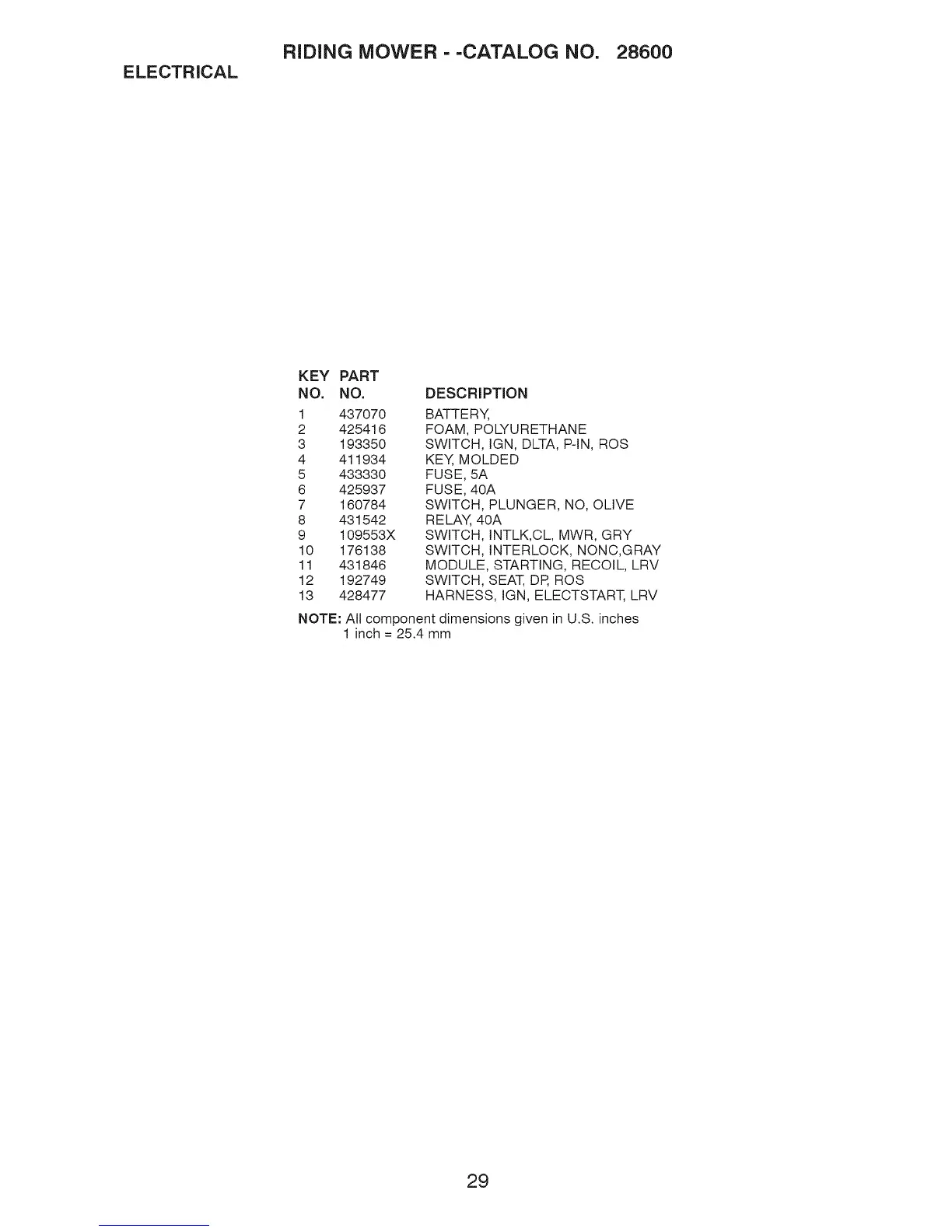

ELECTRICAL
RIDING MOWER --CATALOG NO. 28600
KEY PART
NO. NO.
1 437070
2 425416
3 193350
4 411934
5 433330
6 425937
7 160784
8 431542
9 109553X
10 176138
11 431846
12 192749
13 428477
DESCRIPTION
BATTERY,
FOAM, POLYURETHANE
SWITCH, IGN, DLTA, P-IN, ROS
KEY, MOLDED
FUSE, 5A
FUSE, 40A
SWITCH, PLUNGER, NO, OLIVE
RELAY, 40A
SWITCH, INTLK,CL, MWR, GRY
SWITCH, INTERLOCK, NONC,GRAY
MODULE, STARTING, RECOIL, LRV
SWITCH, SEAT, DP, ROS
HARNESS, IGN, ELECTSTART, LRV
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
