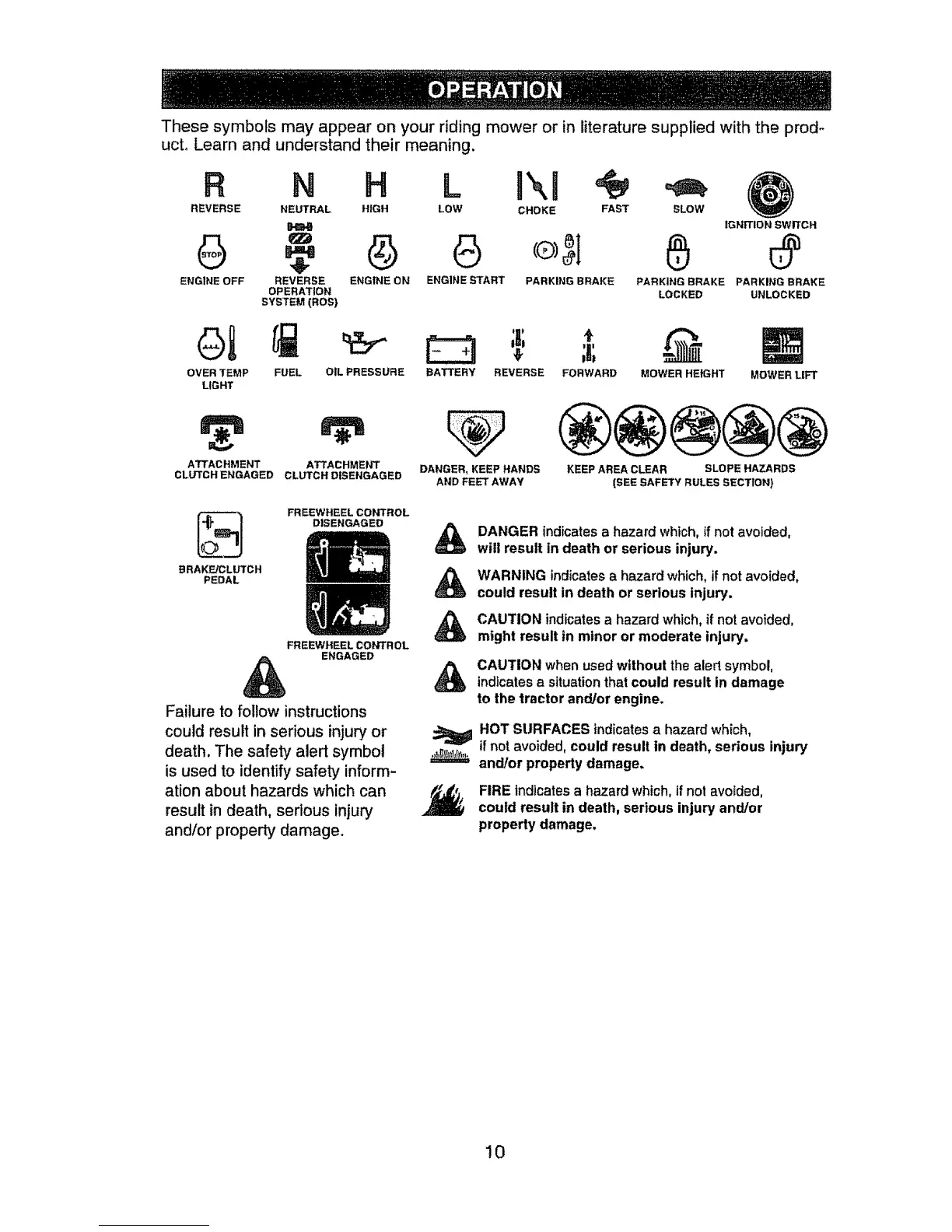

These symbols may appear on your riding mower or in literature supplied with the prod-
ucto Learn and understand their meaning,
R N H L l\J
REVERSE NEUTRAL HIGH LOW CHOKE FAST
ENGINE OFF REVERSE ENGINE ON ENGINE START PARKING BRAKE
OP ERATIOt-,I
SYSTEM (ROS)
SLOW
IGNITION SWITCH
PARKING BRAKE PARKING BRAKE
LOCKED UNLOCKED
ot
OVER TEMP FUEL
LIGHT
;I;
OIL PRESSURE BATTERY REVERSE FORWARD
ATTACHMENT ATTACHMENT DANGER, KEEP HANDS
CLUTCH ENGAGED CLUTCH DISENGAGED AND FEET AWAY
MOWER HEIGHT
MOWER LIFT
KEEP AREA CLEAR SLOPE HAZARDS
(SEE SAFETY RULES SECTION)
BRAKE/CLUTCH
PEDAL
FREEWHEEL CONTROL
DISENGAGED
FREEWHEEL CONTROL
ENGAGED
Failure to follow instructions
could result in serious injury or
death, The safety alert symbol
is used to identify safety inform-
ation about hazards which can
result in death, sedous injury
and/or property damage.
&
&
&
DANGER indicatesa hazardwhtch, tfnot avoided,
will result in death or serious injury.
WARNING indicatesa hazardwhich, ifnot avoided,
could result in death or serious injury,
CAUTION indicatesa hazardwhich,if notavoided,
might result in minor or moderate injury.
CAUTION whenusedwithout thealertsymbol,
indicatesa situationthatcould result in damage
to the tractor and/or engine.
NOT SURFACES indicatesa hazardwhich,
ifnot avoided,could result in death, serious injury
and/or property damage.
FIREindicatesa hazardwhich,ifnot avoided,
could result in death, serious injury and/Dr
property damage.
