WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY
SERVICE OR ADJUSTMENTS:
1, Depress clutch/brake pedal fully and set parking brake,
2, Place motion control lever in neutral (N) position
3. Place deck clutch in "DISENGAGED" position°
4, Turn ignition key to "STOP" and remove key°
5, Make sure the blade and all moving parts have completely stopped.
6. Disconnect spark plug wire from spark plug and place wire where it cannot
come in contact with plug.
RIDING MOWER

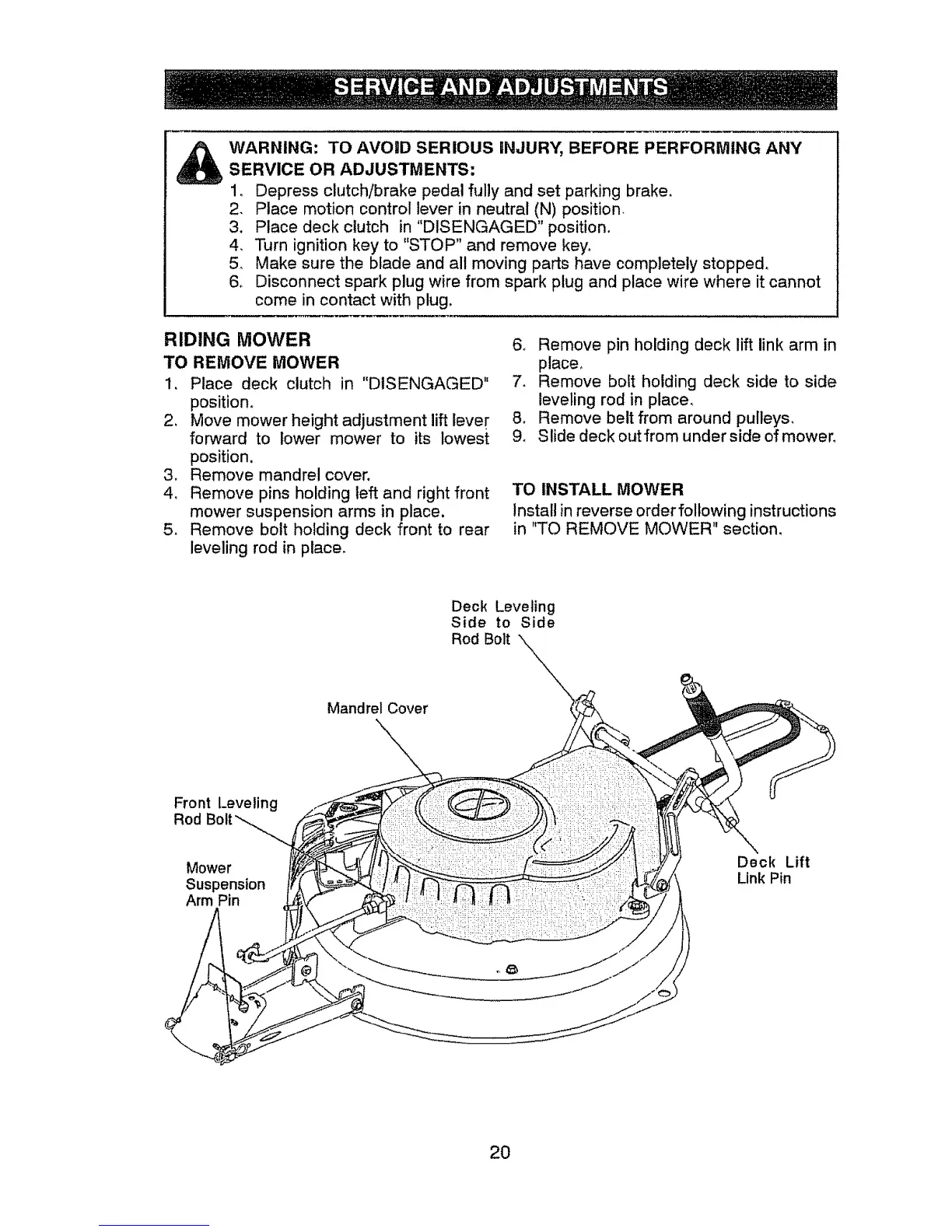

TO REMOVE MOWER
1. Place deck clutch in "DISENGAGED"
position,
2. Move mower height adjustment lift lever
forward to lower mower to its lowest
position.
3, Remove mandrel cover.
4, Remove pins holding left and right front
mower suspension arms in place.
5_ Remove bolt holding deck front to rear
leveling rod in place_
6o Remove pin holding deck lift link arm in
place,
7. Remove bolt holding deck side to side
leveling rod in place,
8, Remove belt from around pulleys,
9. Slide deck outfrom under side of mower.
TO INSTALL MOWER
Install in reverse order following instructions
in "TO REMOVE MOWER" section,
Mandrel Cover
Deck Leveling
Side to Side
Rod Bolt
Front Leveling
Rod Bolt_
Mower
Suspension
Arm Pin
Deck Lift
Link Pin
2O
