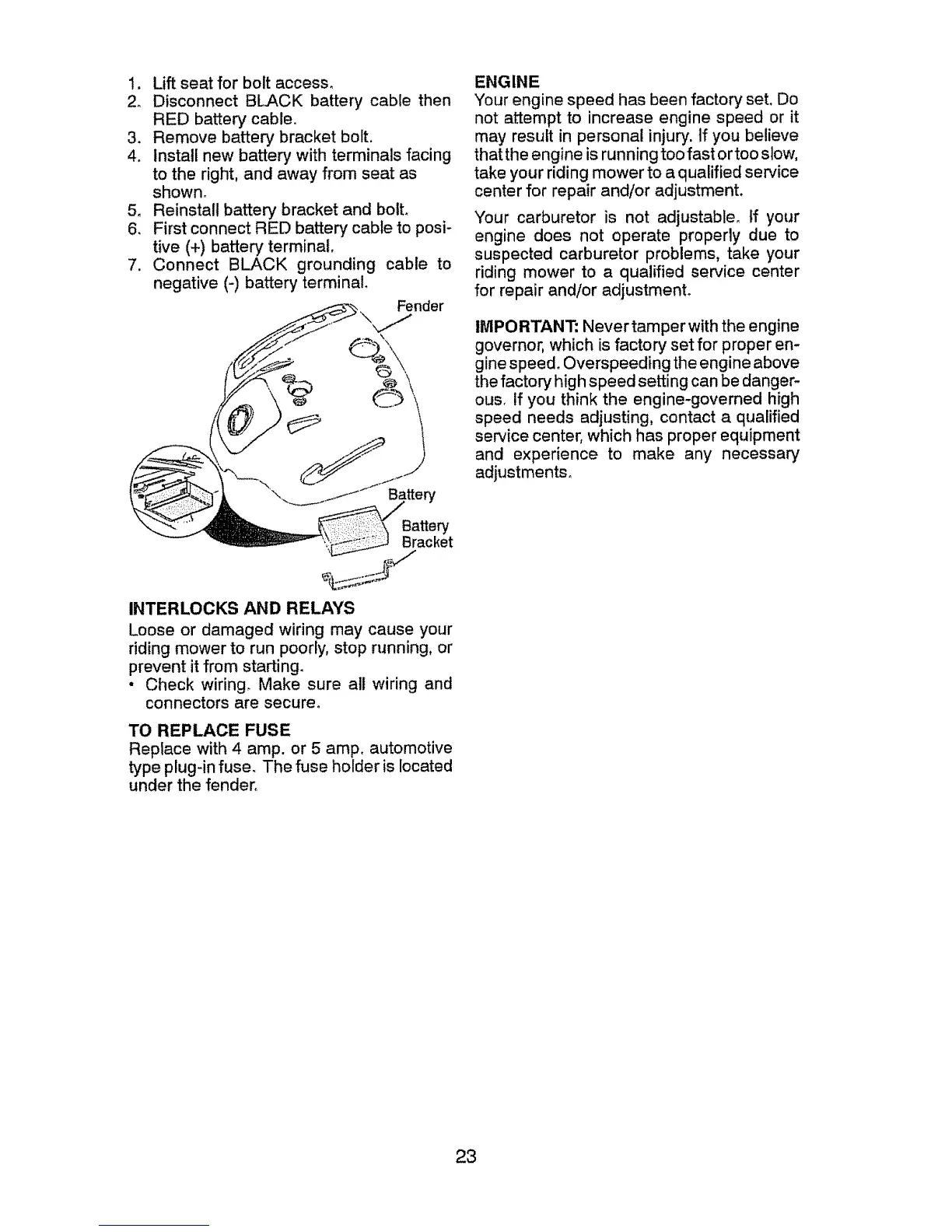

1. Lift seat for bolt access_
2_ Disconnect BLACK battery cable then
RED battery cable.
3. Remove batter,/bracket bolt,
4. Install new battery with terminals facing
to the right, and away from seat as
shown,
5, Reinstall battery bracket and bolto
6, First connect RED battery cable to posi-
tive (+) batter,/terminal,
7. Connect BLACK grounding cable to
negative (-) battery terminal
Fender
Battery
Battery
Bracket
INTERLOCKS AND RELAYS
Loose or damaged wiring may cause your
riding mower to run poorly, stop running, or
prevent it from starting.
• Check wiring_ Make sure all wiring and
connectors are secure°
TO REPLACE FUSE
Replace with 4 amp, or 5 amp. automotive
type plug-in fuse, The fuse holder is located
under the fender,
ENGINE
Your engine speed has been factory set, Do
not attempt to increase engine speed or it
may result in personal injury', tf you believe
that the engine is running too fast or too slow,
take your riding mower to a qualified service
center for repair and!or adjustment.
Your carburetor is not adjustable, ff your
engine does not operate properly due to
suspected carburetor problems, take your
riding mower to a qualified service center
for repair and/or adjustment°
IMPORTANT: Never tamper with the engine
governor, which is factory set for proper en-
gine speed. Overspeeding the engine above
the factory high speed setting can be danger-
ouso if you think the engine-governed high
speed needs adjusting, contact a qualified
service center, which has proper equipment
and experience to make any necessary
adjustments,
23
