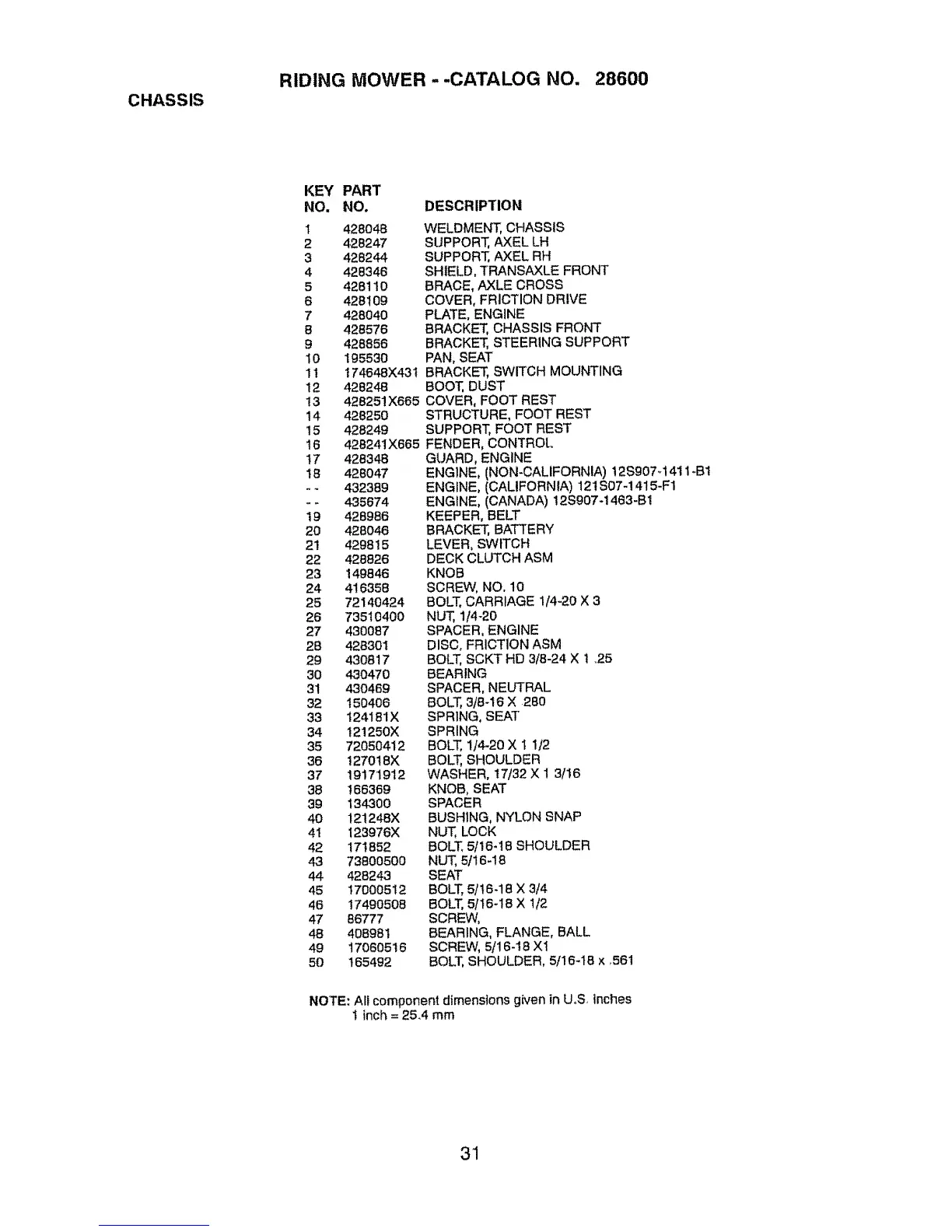

CHASSIS
RIDING MOWER ..-CATALOG NO. 28600
KEY PART
NO. NO. DESCRIPTION
1 428048 WELDMENT' CHASSIS
2 428247 SUPPORT, AXEL LH
3 428244 SUPPORT, AXEL RH
4 428346 SHIELD, TRANSAXLE FRONT
5 428110 BRACE, AXLE CROSS
6 428109 COVER, FRICTION DRIVE
7 428040 PLATE, ENGINE
8 428576 BRACKET, CHASSIS FRONT
9 428856 BRACKET, STEERING SUPPORT
10 195530 PAN, SEAT
11 174648X43I BRACKET, SWITCH MOUNTING
12 428248 BOOT, DUST
13 428251X665 COVER, FOOT REST
14 428250 STRUCTURE, FOOT REST
15 428249 SUPPORT, FOOT REST
t6 428241X665 FENDER, CONTROL
17 428348 GUARD, ENGINE
18 428047 ENGINE, (NON-CALIFORNIA) t2S907q 4t 1-B1
- _ 432389 ENGINE, (CALIFORNIA) 121S07-1415-F1
-- 435674 ENGINE, (CANADA) 12S907-1463-B1
19 428986 KEEPER, BELT
20 428048 BRACKET, BATTERY
21 429815 LEVER, SWITCH
22 428826 DECK CLUTCH ASM
23 149846 KNOB
24 416358 SCREW, NO. 10
25 72140424 BOLT, CARRIAGE 1/4-20 X 3
26 73510400 NUT, 1/4-20
27 430087 SPACER, ENGINE
28 428301 DISC, FRICTION ASM
29 430817 BOLT, SCKT HD 3/8-24 X ! 25
30 430470 BEARING
31 430469 SPACER, NEUTRAL
32 150406 BOLT, 3/8-16 X 280
33 124181X SPRING, SEAl"
34 121250X SPRING
35 72050412 BOLT, 114-20X t 1/2
36 !27018X BOLT, SHOULDER
37 19171912 WASHER, t7/32 X ! 3/16
38 !66369 KNOB, SEAT
39 134300 SPACER
40 12!248X BUSHING, NYLON SNAP
41 !23976X NUT' LOCK
42 171852 BOLT, 5/16-18 SHOULDER
43 73800500 NUT, 51164 8
44 428243 SEAT
45 17000512 BOLT, 5/t6-18 X 3/4
48 17490508 BOLT,5/I6-18 X 1/2
47 86777 SCREW,
48 408981 BEARING, FLANGE, BALL
49 17060516 SCREW, 5/16-!8 Xt
50 165492 BOLT, SHOULDER, 5/16-18 x ,561
NOTE: All component dimensions given in UoS inches
1 inch = 25.4 mm
31
