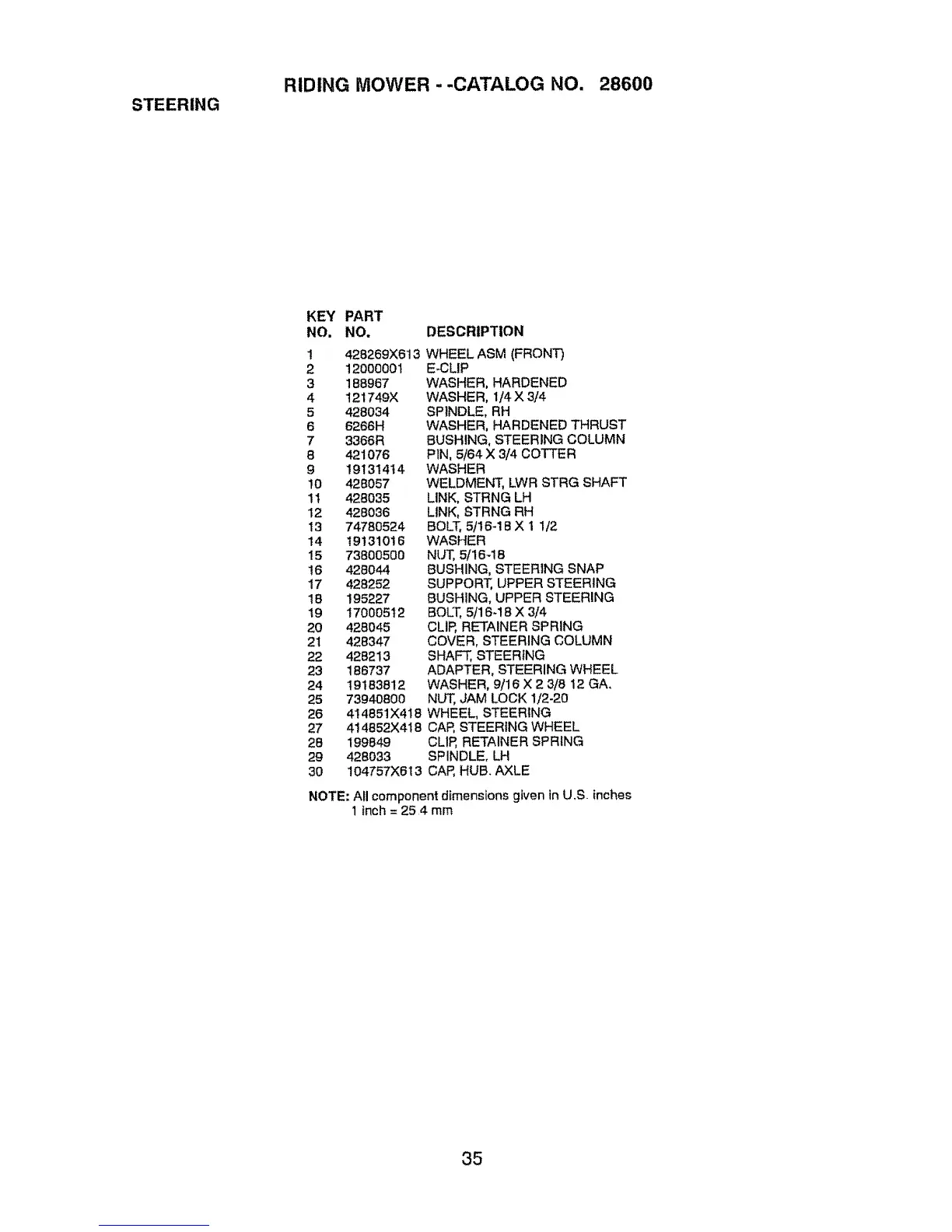

Weed Eater ONE - Page 35

RIDING MOWER --CATALOG NO. 28600
KEY PART
NO. NO.
1 428269)(613
2 1200000t
3 188987
4 t21749X
5 428034
6 6266H
7 3366R
8 421076
9 19131414
10 428057
1! 428035
12 428036
13 74780524
14 19131016
15 73800500
16 428044
17 428252
18 195227
19 17000512
20 428045
2I 428347
22 428213
23 186737
24 19183812
25 73940800
26 414851 X418
27 414852X418
28 199849
29 428033
30 104757X613
DESCRIPTION
WHEEL ASM (FRONT)
E_LIP
WASHER, HARDENED
WASHER, 1/4 X 3/4
SPINDLE, RH
WASHER, HARDENED THRUST
BUSHING, STEERING COLUMN
PIN, 5/64 X 3/4 COTTER
WASHER
WELDMENT, IJWR STRG SHAFT
LINK, STRNG LH
LINK, STRNG RH
BOLT, 5/16-18 X 1 1/2
WASHER
NUT, 5/16-18
BUSHING, STEERING SNAP
SUPPORT, UPPER STEERING
BUSHING, UPPER STEERING
BOLT,5/16-18 X 3/4
CLIP, RETAINER SPRING
COVER, STEERING COLUMN
SHAFt, STEERING
ADAPTER, STEERING WHEEL
WASHER, 9/16 X 2 3/8 12 GA,
NUT;,JAM LOCK 1/2-20
WHEEL, STEERING
CAP,STEERING WHEEL
CLIP,RETAINER SPRING
SPINDLE, LH
CAP,HUB, AXLE
NOTE: All component dimensions given in U,S. inches
I inch = 25 4 mm
35
