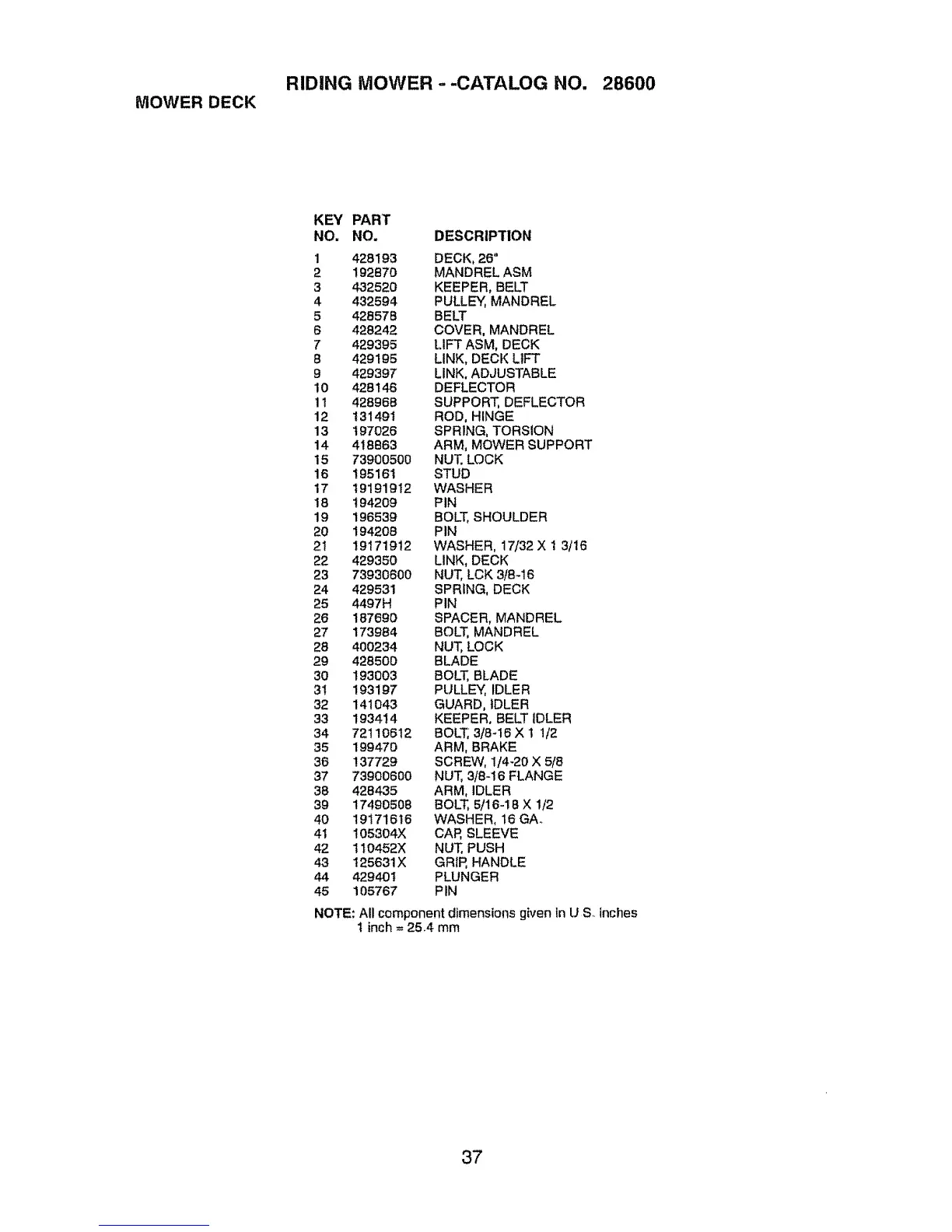

MOWER DECK
RIDING MOWER--CATALOG NO, 28600
KEY PART
NO. NO. DESCRIPTION
1 428193 DECK, 26"
2 192870 MANDREL ASM
3 432520 KEEPER, BELT
4 432594 PULLEY, MANDREL
5 428578 BELT
6 428242 COVER, MANDREL
7 429395 LIFT ASM, DECK
8 429195 LINK, DECK LIFT
9 429397 LINK, ADJUSTABLE
10 428146 DEFLECTOR
11 428968 SUPPORT, DEFLECTOR
12 131491 ROD, HINGE
13 197026 SPRING, TORSION
14 418863 ARM, MOWER SUPPORT
15 73900500 NUT, LOCK
16 t 95161 STUD
17 19191912 WASHER
18 194209 PIN
19 196539 BOLT, SHOULDER
20 194208 PIN
21 19171912 WASHER, 17/32 X 1 3/16
22 429350 LINK, DECK
23 73930600 NUT, LCK 3/8-16
24 429531 SPRING, DECK
25 4497H PIN
26 187690 SPACER, MANDREL
27 173984 BOLT, MANDREL
28 400234 NUT, LOCK
29 42850D BLADE
30 193003 BOLT, BLADE
31 193197 PULLEY, IDLER
32 141043 GUARD, IDLER
33 193414 KEEPER, BELT IDLER
34 72110612 BOLT, 3/8q6 X 1 1/2
35 199470 ARM, BRAKE
36 !37729 SCREW, I/4_20 X 5/8
37 73900600 NUT, 3/8-16 FLANGE
38 428435 ARM, IDLER
39 17490508 BOLT, 5/16-18 X 1/2
40 19171616 WASHER, 16 GA.
41 105304)< CAR SLEEVE
42 110452X NUT, PUSH
43 125631X GRIP, HANDLE
44 429401 PLUNGER
45 105767 PIN
NOTE: All component dimensions given in US. inches
t inch = 25.4 mm
37
