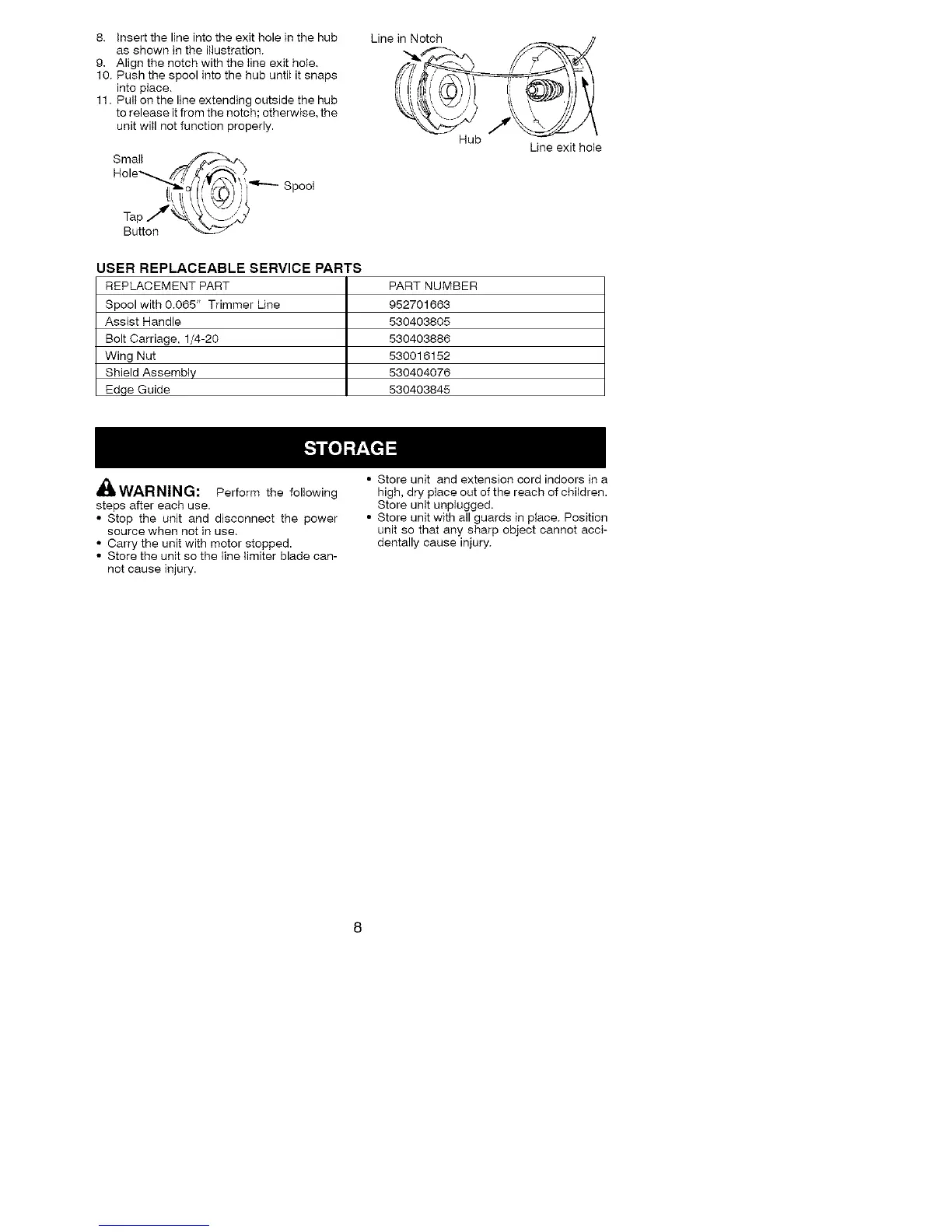

8. Insertthelineintotheexitholeinthehub
asshownintheillustration.
9.Alignthenotchwiththetineexithole.
10.Pushthespoolintothehubuntilitsnaps
intoplace.
11.Pullonthelineextendingoutsidethehub
toreleaseitfromthenotch;otherwise,the
unitwillnotfunctionproperly.
Small
Hole_
Spool
LineinNotch
Hub
Line exit hole
Bu_on
USER REPLACEABLE SERVICE PARTS
REPLACEMENT PART
Spool with 0.065" Trimmer Line
Assist Handle
Bolt Carriage. 1/4-20
Wing Nut
Shield Assembly
Ed,qe Guide
PART NUMBER
952701663
530403805
530403886
530016152
530404076
530403845
_L.WARNING: Perform the following
steps after each use.
• Stop the unit and disconnect the power
source when not in use,
• Carry the unit with motor stopped.
• Store the unit so the line limiter blade can-
not cause injury.
• Store unit and extension cord indoors in a
high, dry place out of the reach of children.
Store unit unplugged.
• Store unit with all guards in place. Position
unit so that any sharp object cannot acci-
dentally cause injury.
