OPERATION

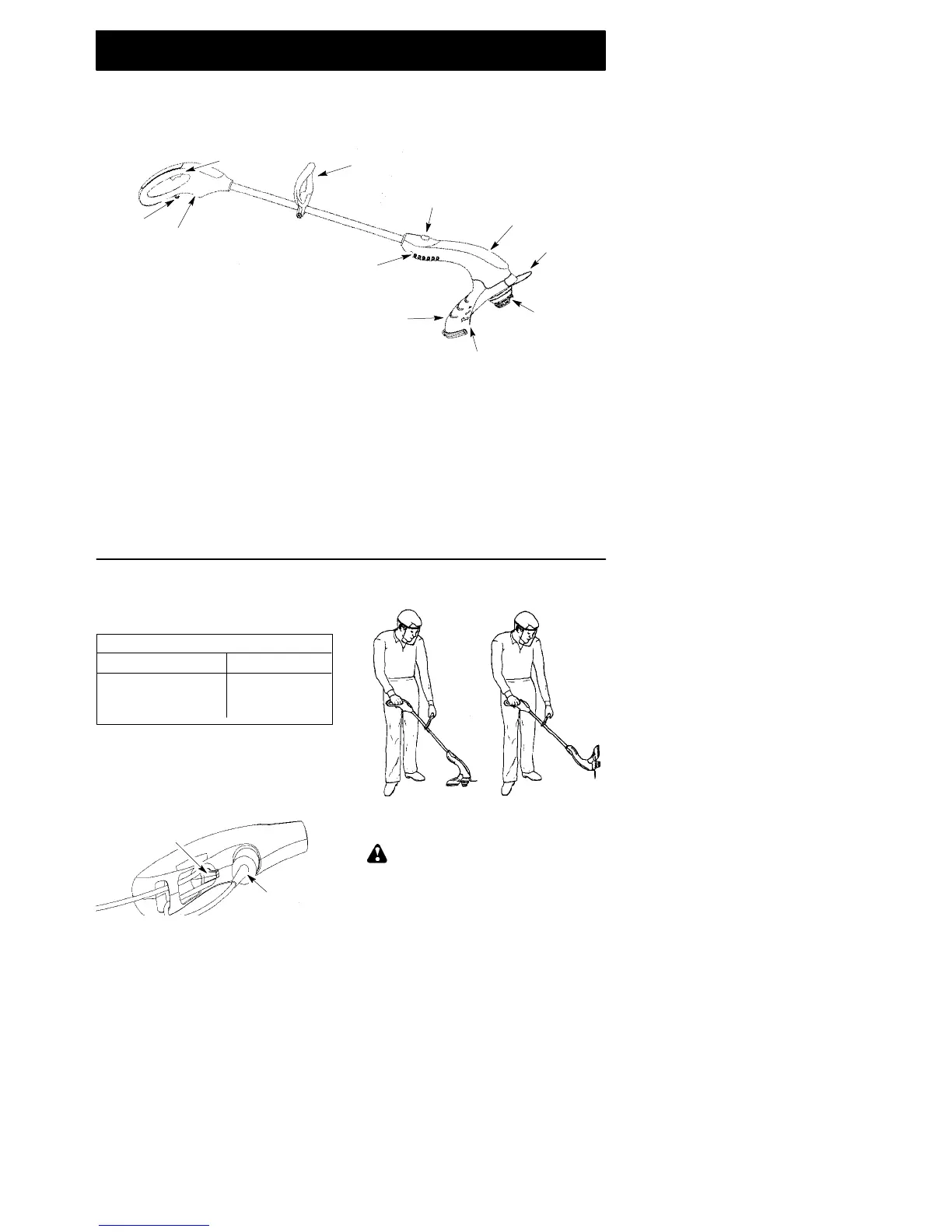

KNOW YOUR TRIMMER
READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERA TING YOUR UNIT.
Compare the illustrations with your unit to familiarize yourself with the location of the various controls
and adjustments. Save this manual for future reference.
Cord
Retainer
Recessed
Plug
Trigger Switch
Assist Handle
Twist and Edge Button
Motor Housing
Edge Guide
Line Limiter Blade
Trimmer Head
with 0.065 inch
Trimmer Line
Debris Shield
Air V ents
RECESSED PLUG
The RECESSED PLUG is w here you attach
your extension cord to the unit.
TRIGGER SWITCH
TheTRIGGERSWITCHisusedtoturnonthe
unit. Squeeze the trigger switch to operate the
unit. Release to stop.
LINE LIMITER BLADE
The LINE LIMITER BLADE cuts the cutting
line to the proper cutting length.
ASSIST HANDLE
The ASSIST HANDLE is used to help hold
and guide the unit.
TRIMMER HEAD
The TRIMMER HEAD holds the cutting line
and rotates during operation.
TWIST AND EDGE BUTTON
The TWIST AND EDGE BUTTON is used to
twist the lower portion of the unit into an edg-
ing position.
EDGE GUIDE
The EDGE GUIDE protects the unit from con-
tacting the ground during edging.
OPERATING INSTRUCTIONS
Use only a voltage supply as specified on
your unit.
SELECT AN EXTENSION CORD
ExtensionCordGaugeChart
Length of Cord Gauge
25 Ft. (7.5 m)
50 Ft. (15 m)
100Ft.(30m)
18 Gauge
16 Gauge
16 Gauge
Extension cords are available for this unit.
ATTACH THE EXTENSION
CORD TO YOUR TRIMMER
Loop your extension cord through the handle
and around the hook as shown. Insure the
plug and cord are firmly and fully engaged.
Cord Retainer
Extension Cord
CORRECT OPERATING POSITION
Trimming
Edging
WARNING: Always wear eye protec-
tion. Never lean over the trimmer head.
Rocks or debris can ricochet or be thrown into
eyes and face and cause blindness or other
serious injury.
