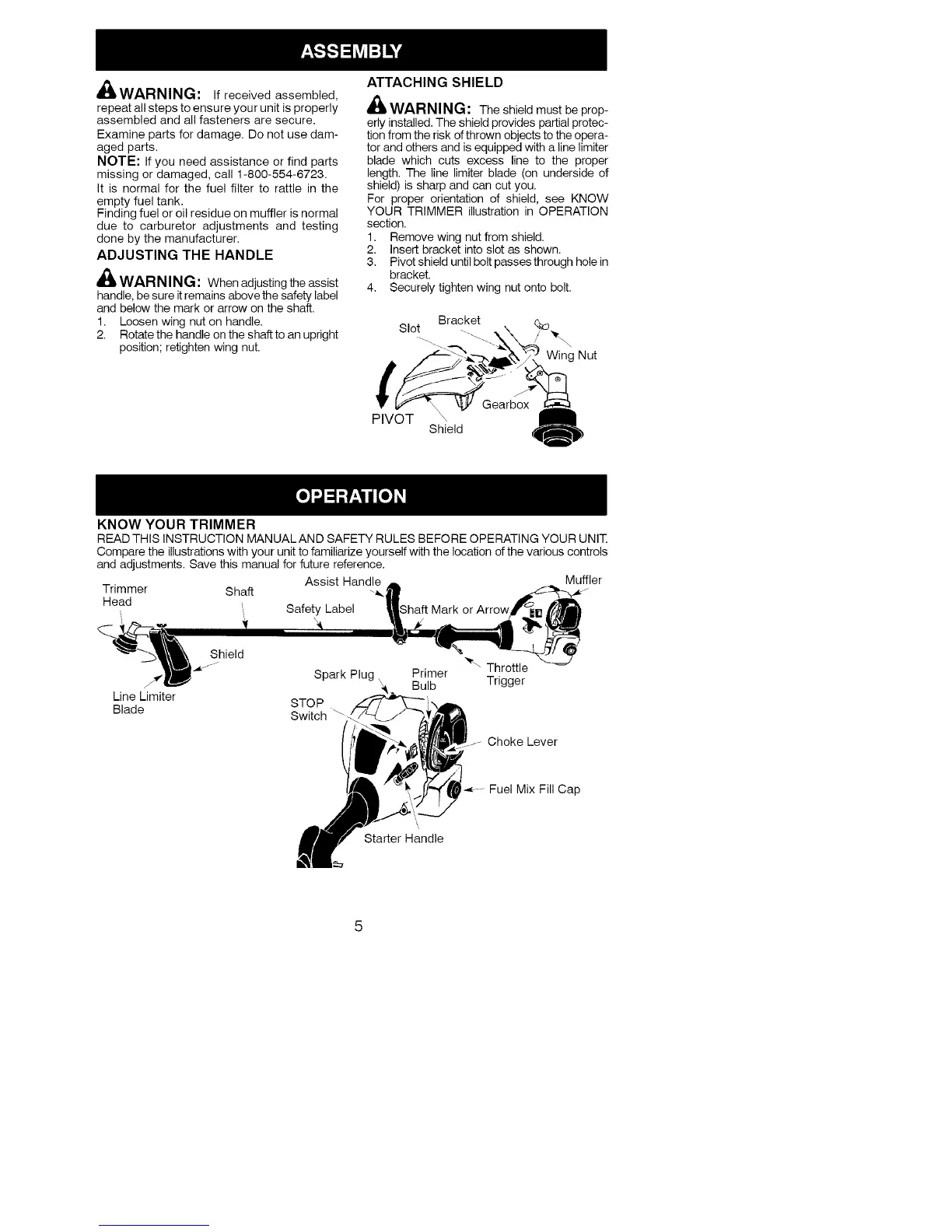

m_WARNINu: If received assembled,
repeat all steps to ensure your unit is properly
assembled and all fasteners are secure.
Examine parts for damage. Do not use dam-
aged parts.
NOTE: If you need assistance or find parts
missing or damaged, call 1-800-554-6723.
It is normal for the fuel filter to rattle in the
empty fuel tank.
Finding fuel or oil residue on muffler is normal
due to carburetor adjustments and testing
done by the manufacturer.
ADJUSTING THE HANDLE
WAR NING: When adjusting the assist
handle, be sure it remains above the safety label
and below the mark or arrow on the shaft.
1. Loosen wing nut on handle.
2. Rotate the handle on the shaft to an upright
position; retighten wing nut.
KNOW YOUR TRIMMER
ATTACHING SHIELD
WARNING: The shield must be prop-
erly installed. The shield provides partial protec-
tion from the risk of thrown objects to the opera-
tor and others and is equipped with a line limiter
blade which cuts excess line to the proper
length. The line limiter blade (on underside of
shield) is sharp and can cut you.
For proper orientation of shield, see KNOW
YOUR TRIMMER illustration in OPERATION
section.
1. Remove wing nut from shield.
2. Insert bracket into slot as shown.
3. Pivot shield until bolt passes through hole in
bracket.
4. Securely tighten wing nut onto bolt.
Slot Bracket _
t
PIVOT \
Shield
Wing Nut
READ THIS INSTRUCTION MANUALAND SAFETY RULES BEFORE OPERATING YOUR UNIT.
Compare the illustrations with your unit to familiarize yourself with the location of the various controls
and adjustments. Save this manual for future reference.
Trimmer Shaft
Head
Line Limiter
Blade
Assist Hand!_ A Muffler
Safety Label IShaft Mark or Arrow_B_tl _
"_" Throttle
Spark Plug \ Primer
Bulb Trigger
STOP
Switch
Choke Lever
Starter Handle
Fuel Mix Fill Cap
