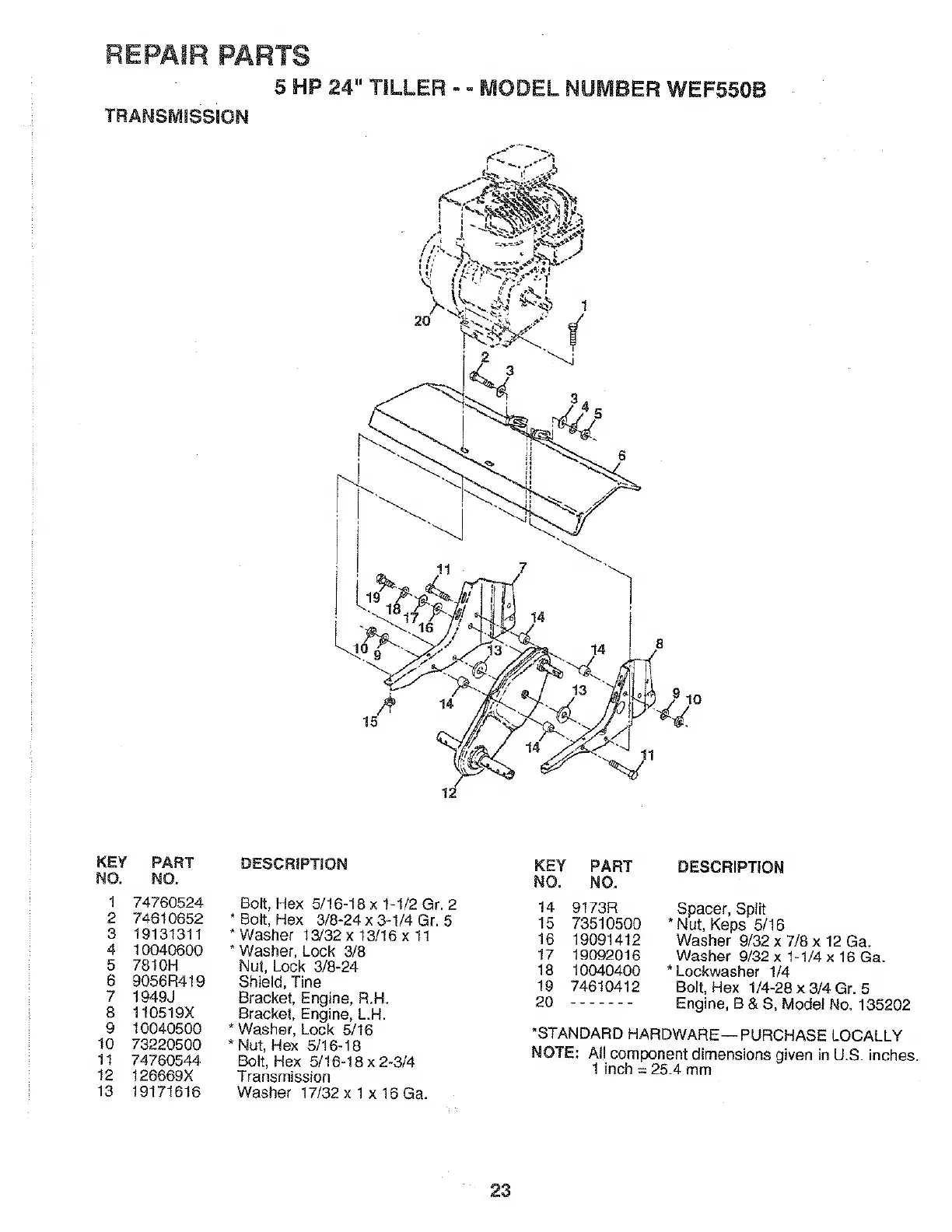

REPAIR PARTS
5 HP 24" TILLER - - MODEL NUMBER WEF550B
TRANSMISSION
KEY
NO.
1
3
4
5
6
7
8
9
10
11
12
13
PART
NO.
74760524
74610652
19131311
9056R419
1949J
110519X
10040500
73220500
74760544
126669X
19171616
DESCRIPTION
Bolt, Hex 5/16-18 x 1-1/2 Gr. 2
* Bolt, Hex 3/8-24 x 3-1/4 Gr. 5
* Washer 13/32 x 13/16 x 11
“Washer, Lock 3/8
Nut, Lock 3/8-24
Shield, Tine
Bracket, Engine, R.H.
Bracket, Engine, L.H.
* Washer, Lock 5/16
* Nut, Hex 5/16-18
Bolt, Hex 5/16-18 x 2-3/4
Transmission
Washer 17/32 x 1x 16 Ga.
23
KEY PART DESCRIPTION
NO. NO.
14 9173R Spacer, Split
15 73510500 *Nut, Keps 5/16
16 19091412 Washer 9/32 x 7/8 x 12 Ga.
17 19092016 Washer 9/32 x 1-1/4 x 16 Ga.
18 10040400 *Lockwasher 1/4
19 74610412 Bolt, Hex 1/4-28 x 3/4 Gr. 5
20
-------
Engine,
B
&
S,
Model
No.
135202
*STANDARD HARDWARE— PURCHASE LOCALLY
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
