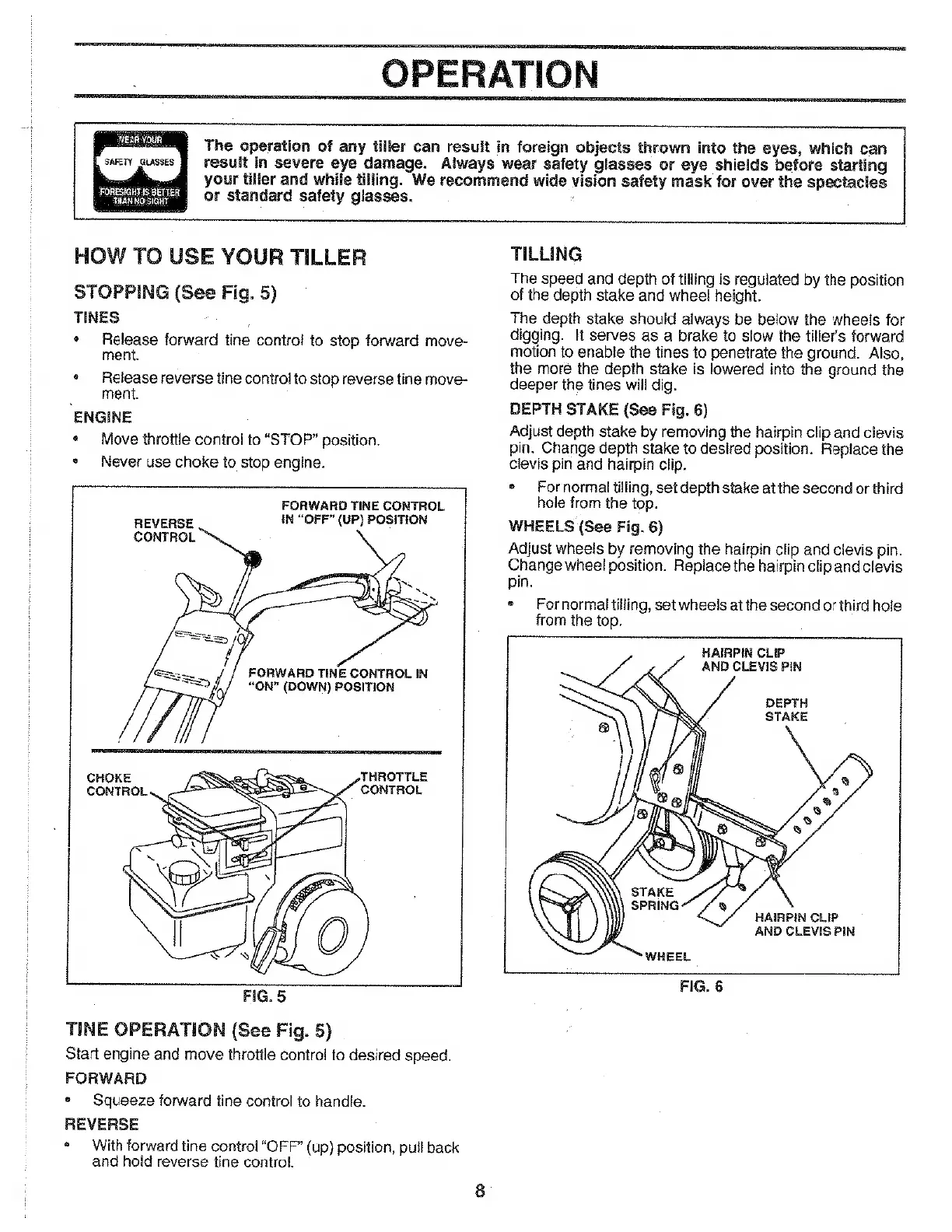

OPERATION
NEAR YOUR
FORESIGHT JS- BETTER
THAN NO SIGHT
or standard safety glasses.
The
operation
of
any
tiller
can
result
in
foreign
objects
thrown
into
the
eyes,
which
can
result
in
severe
eye
damage.
Always
wear
safety
glasses
or
eye
shields
before
starting
your
tiller
and
while
tiling.
We
recommend
wide
vision
safety
mask
for
over
the
spectacles
HOW TO USE YOUR TILLER
STOPPING (See Fig. 5)
TINES
e Release forward tine control to stop forward move-
ment.
e Release reverse tine control to stop reverse tine move-
ment.
ENGINE
« Move throttle control to “STOP” position.
+ Never use choke to stop engine.
1
FORWARD TINE CONTROL
IN “OFF” (UP) POSITION
REVERSE
CONTROL
FORWARD TINE CONTROL IN
“ON” (DOWN) POSITION
THROTTLE
CONTROL
TINE OPERATION (See Fig. 5)
Start engine and move throttle control to desired speed.
FORWARD
e Squeeze forward tine control to handle.
REVERSE
e With forward tine control “OFF” (up) position, pull back
and hold reverse tine control.
TILLING
The speed and depth of tilling is regulated by the position
of the depth stake and wheel height.
The depth stake should always be below the wheels for
digging. It serves as a brake to slow the tillers forward
motion to enable the tines to penetrate the ground. Also,
the morë the depth stake is lowered into the ground the
deeper the tines will dig.
DEPTH STAKE (See Fig. 6)
Adjust depth stake by removing the hairpin clip and clevis
pin. Change depth stake to desired position. Replace the
clevis pin and hairpin clip.
* Fornormal tilling, set depth stake atthe second or third
hole from the top.
WHEELS (See Fig. 6)
Adjust wheels by removing the hairpin clip and clevis pin.
Change wheel position. Replace the hairpin clipandclevis
pin.
e Fornormal tilling, set wheels at the second or third hole
from the top.
E HAIRPIN CLIP
AND CLEVIS PIN
HAIRPIN CLIP
AND CLEVIS PIN
