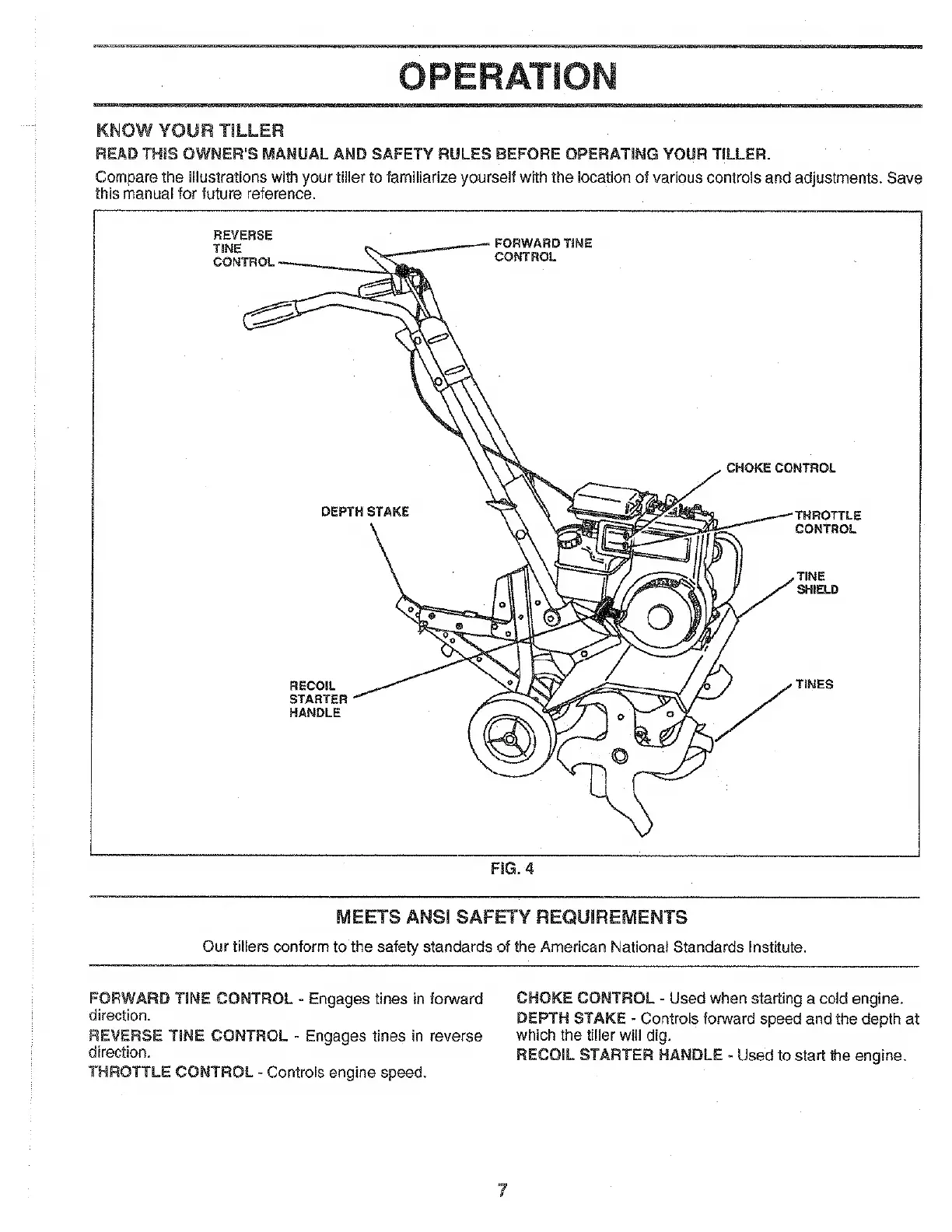

KNOW YOUR TILLER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TILLER.
Compare the illustrations with your tiller to familiarize yourself with the location of various controls and adjustments. Save
this manual for future reference.
Aen
FORWARD
TINE
CONTROL
=
CONTROL
CHOKE CONTROL
DEPTH
STAKE
THROTTLE
CONTROL
RECOIL
STARTER
HANDLE
FIG. 4
MEETS ANSI SAFETY REQUIREMENTS
Our tillers conform to the safety standards of the American National Standards Institute.
FORWARD TINE CONTROL - Engages tines in forward CHOKE CONTROL - Used when starting a cold engine.
direction.
DEPTH
STAKE
-
Controls
forward
speed
and
the
depth
at
REVERSE
TINE
CONTROL
-
Engages
tines
in
reverse
which
the
tiller will
dig.
direction.
RECOIL
STARTER
HANDLE
-
Used
to
start
the
engine.
THROTTLE CONTROL - Controls engine speed.
