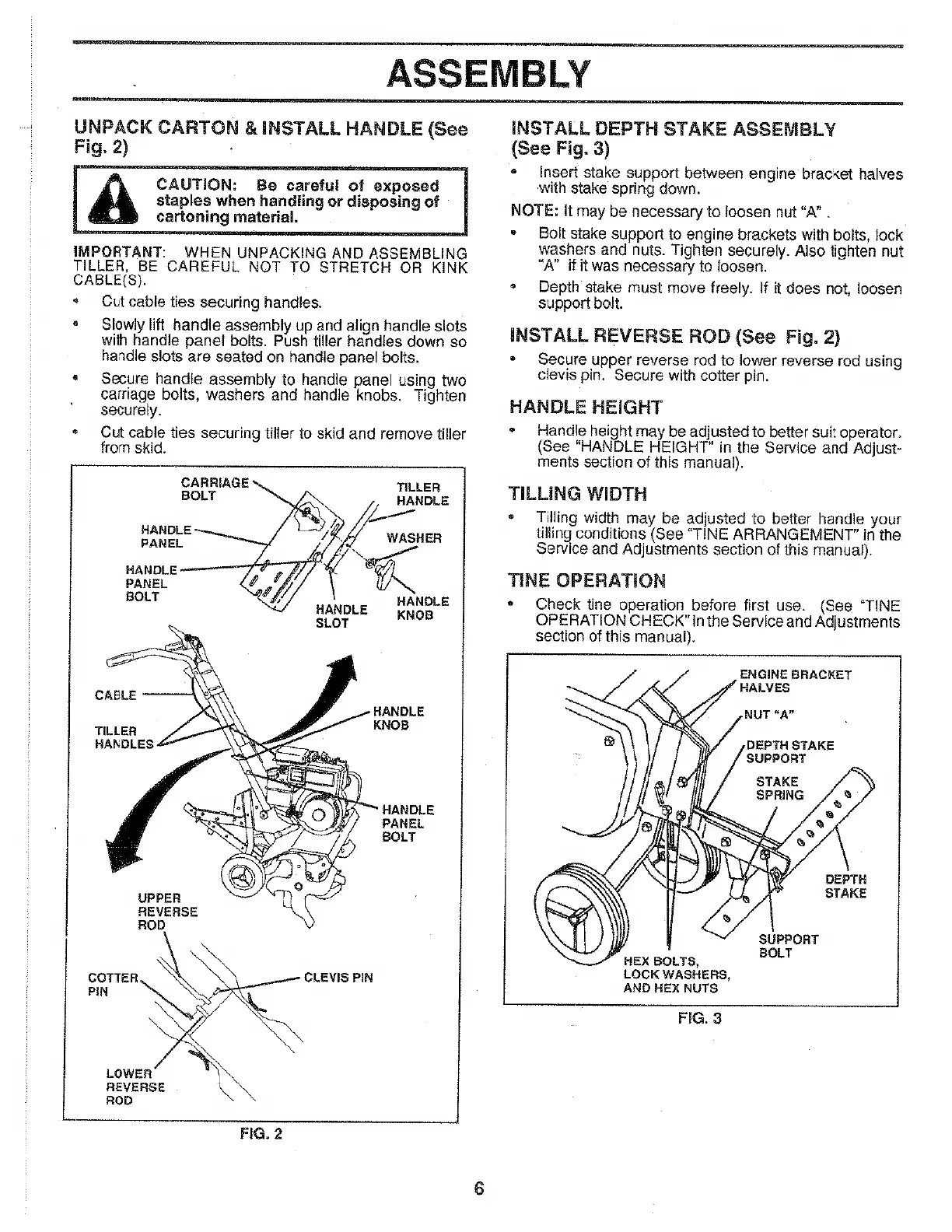

ASSEMBLY
UNPACK CARTON & INSTALL HANDLE (See
Fig. 2) l
CAUTION: Be careful of exposed
staples when handling or disposing of
i cartoning material.
IMPORTANT: WHEN UNPACKING AND ASSEMBLING
TILLER, BE CAREFUL NOT TO STRETCH OR KINK
CABLE(S).
+ Cut cable ties securing handles.
* Slowly lift handle assembly up and align handle slots
with handle panel bolts. Push tiller handles down so
handle slots are seated on handle panel bolts.
e Secure handle assembly to handle panel using two
carriage bolts, washers and handle knobs. Tighten
securely.
e Cut cable ties securing tiller to skid and remove tiller
from skid.
CARRIAGE TILLER
BOLT
HANDLE
HANDLE
PANEL WASHER
HANDLE
PANEL
HANDLE
OB
HANDLE
TILLER KNOB
HANDLE
PANEL
BOLT
INSTALL DEPTH STAKE ASSEMBLY
{See Fig. 3)
e Insert stake support between engine bracket halves
with stake spring down.
NOTE: It may be necessary to loosen nut “A” .
e Bolt stake support to engine brackets with bolts, lock
washers and nuts. Tighten securely. Also tighten nut
“A” if it was necessary to loosen.
> Depth stake must move freely. If it does not, loosen
support bolt.
INSTALL REVERSE ROD (See Fig. 2)
e Secure upper reverse rod to lower reverse rod using
clevis pin. Secure with cotter pin.
HANDLE HEIGHT
e Handle height may be adjusted to better sui! operator.
(See “HANDLE HEIGHT” in the Service and Adjust-
ments section of this manual).
TILLING WIDTH
e Tilling width may be adjusted to better handle your
tilling conditions (See “TINE ARRANGEMENT?” in the
Service and Adjustments section of this manual).
TINE OPERATION
e Check tine operation before first use. (See “TINE
OPERATION CHECK” in the Service and Adjustments
section of this manual).
ENGINE BRACKET “|
HALVES
NUT “A”
DEPTH STAKE
SUPPORT
STAKE
SPRING
é HEX BOLTS,
LOCK WASHERS,
AND HEX NUTS
FIG. 3
