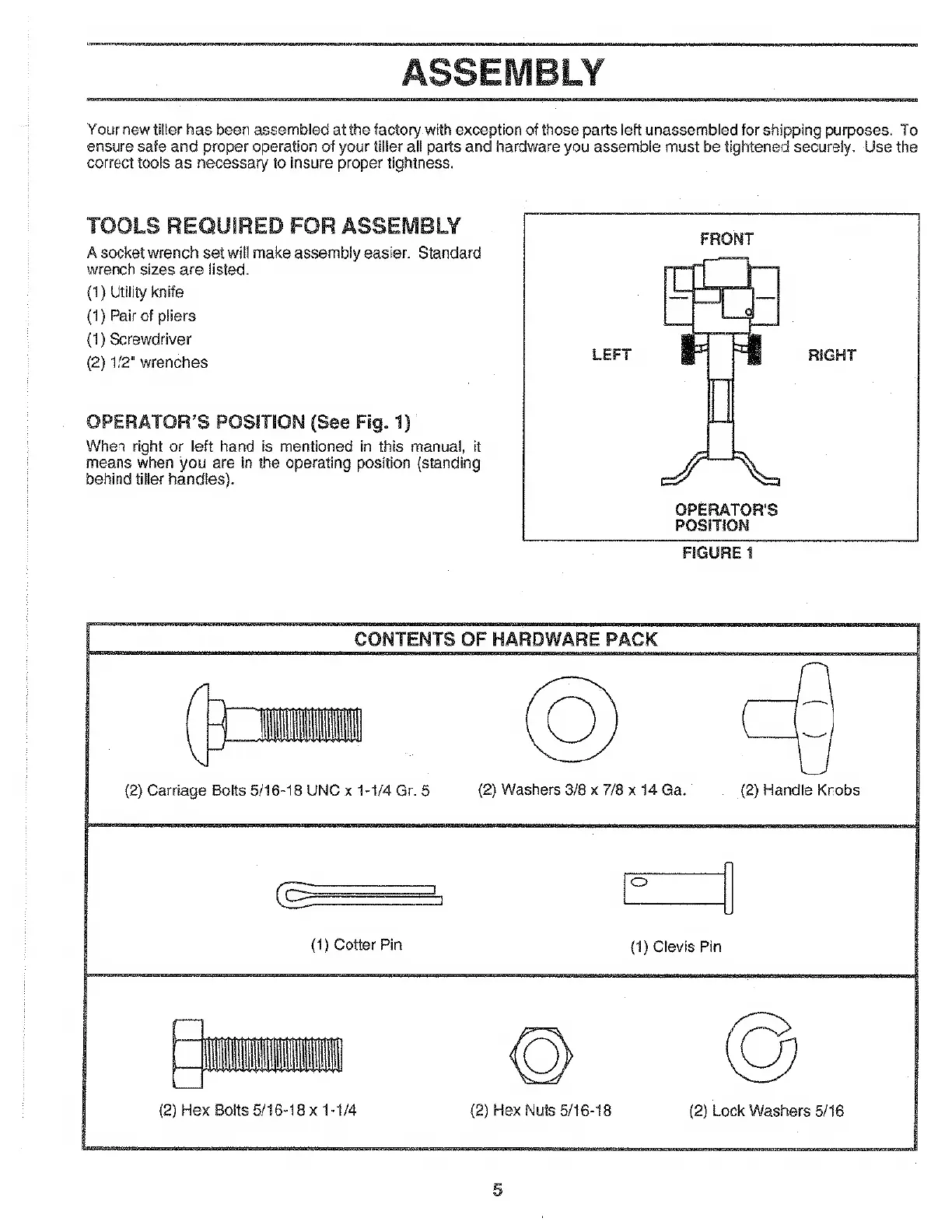

Weed Eater WEF550B - Tools Required for Assembly

Your new tiller has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To
ensure safe and proper operation of your tiller all parts and hardware you assemble must be tightened securely. Use the
correct tools as necessary to insure proper tightness.
TOOLS REQUIRED FOR ASSEMBLY
A socket wrench set will make assembly easier. Standard
wrench sizes are listed.
(1) Utility knife
(1) Pair of pliers
(1) Screwdriver
(2) 1/2" wrenches LERT
RIGHT
OPERATOR'S POSITION (See Fig. 1)
When right or left hand is mentioned in this manual, it
means when you are in the operating position {standing
behind tiller handles).
OPERATOR'S
POSITION
FIGURE 1
(2) Carriage Bolts 5/16-18 UNC x 1-1/4 Gr. 5 (2) Washers 3/8 x 7/8 x 14 Ga. (2) Handle Knobs
(1) Cotter Pin (1) Clevis Pin
{2) Hex Bolts 5/16-18 x 1-1/4 (2) Hex Nuts 5/16-18 (2) Lock Washers 5/16
