For normal homeowner use, the muffler and
spark arresting screen will not require any
service.
After 50 hours of use, we recommend that
your muffler be serviced or replaced by your
authorized service dealer.
ASSEMBLY
WARNING: If received assembled,
repeat all steps to ensure your unit is properly
assembled and all fasteners are secure.
Examine parts for damage. Do not use dam-
aged parts.
NOTE: If you need assistance or find parts
missing or damaged, call 1-800-554-6723.
It is normal for the fuel filter to rattle in the
empty fuel tank.
Finding fuel or oil residue on muf fler is normal
due to carburetor adjustments and testing
done by the manufacturer.
ADJUSTING THE HAND LE
WARNING: When adjusting the assist
handle, be sure it remains above the safety label
and below the mark or arrow on the shaft.
1. Loosen wing nut on handle.
2. Rotate the handle on the shaft to an upright
position; retighten wing nut.
ATTACHING SHIELD
WARNING: The shield must be prop-
erly installed. The shield provides partial protec-
tion from the risk of thrown objects to the opera-
tor and others and is equipped with a line limiter
blade which cuts excess line to the proper
length. The line limiter blade (on underside of
shield) is sharp and can cut you.
For proper orientation of shield, see KNOW
YOUR TRIMMER illu stration in OPERA TI ON
se ction.
1. Remove wing nut from shield.
2. Insert bracket into slot as shown.
3. Pivot shield until bolt passes through hole in
bracket.
4. Securely tighten wing nut onto bolt.

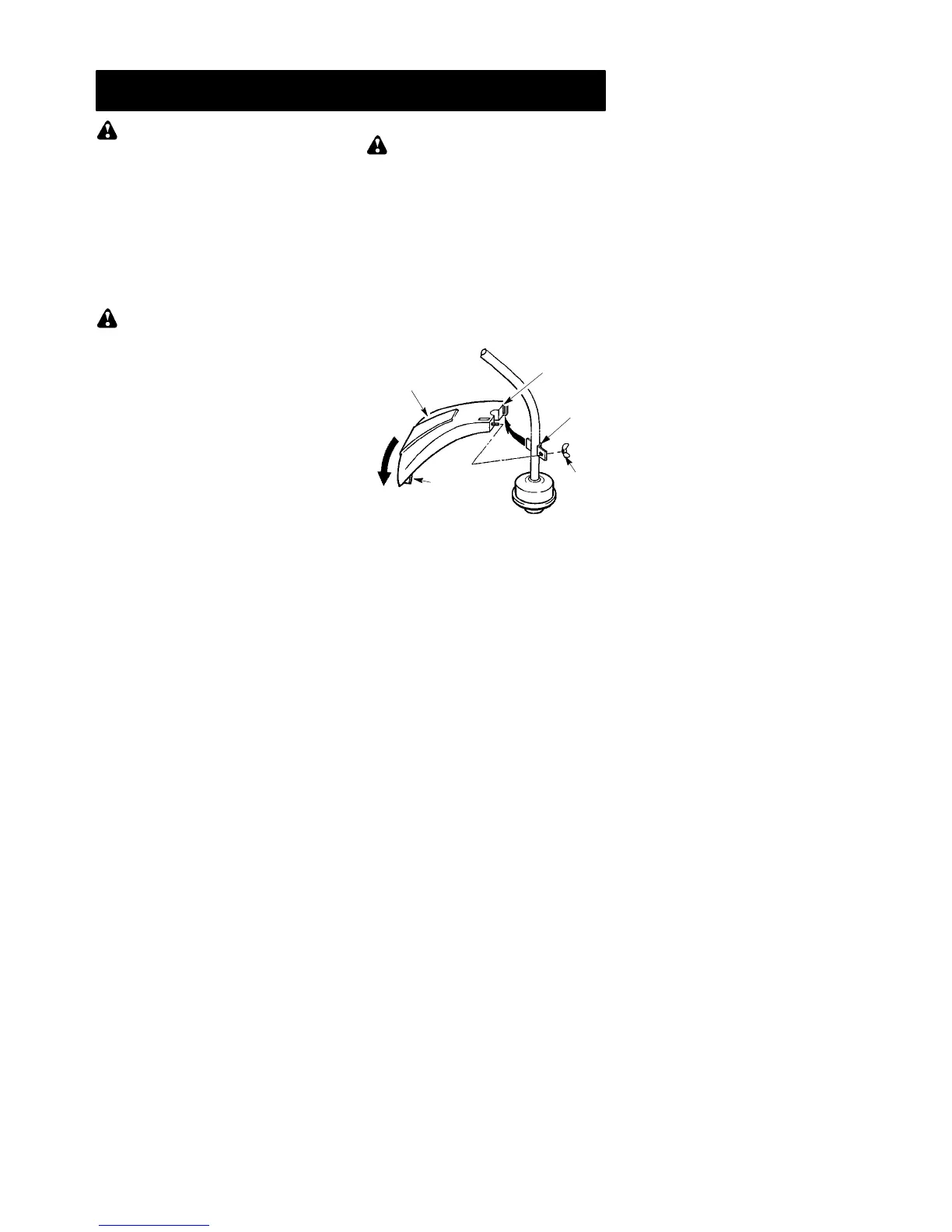

Slot
Shield
Wing
Nut
Bracket
Line Limiter
Blade
PIVOT
