Wega EPU Series User Manual

21 of 68
TECHNICIANS manual
ENGLISH

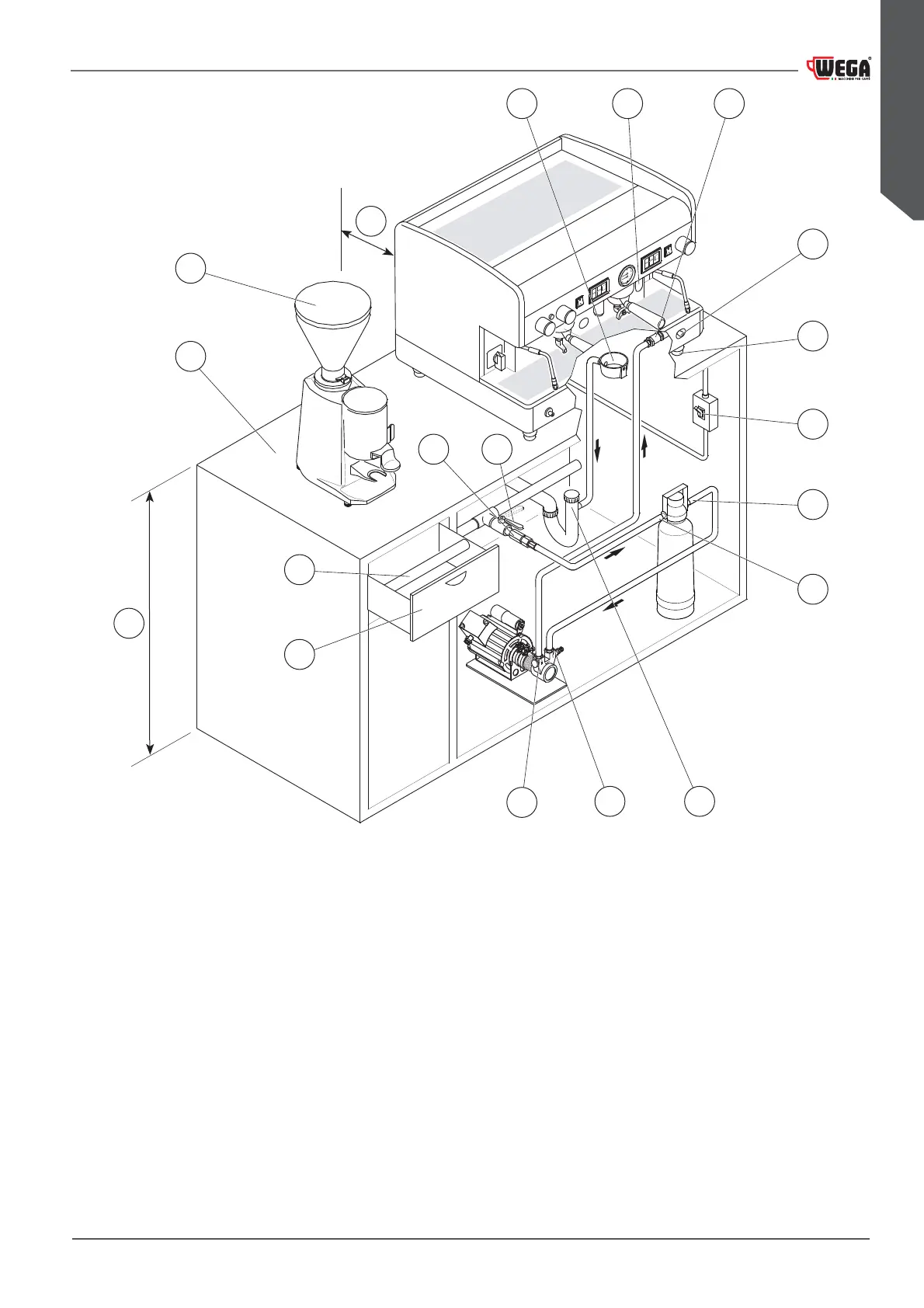

1. Support base
2. Grinder-dispenser
3. 20 cm minimum distance between the machine
and the wall
4. Discharge tub
5. Boiler water level
6. Water supply inlet
7. Manual water load
8. Adjustable feet
9. Electric power switch
10. Water lter inlet
11. Water lter outlet
12. Sewer drain
13. Motor pump inlet
3
19
5 6
7
8
9
10
17
18
16 15
11
14
1213
4
2
1
14. Motor pump outlet
15. Water supply tap
16. Water supply non-return valve
17. Used coee grounds drawer
18. Support for tapping the lter holder
19. Height of support base 90 cm
