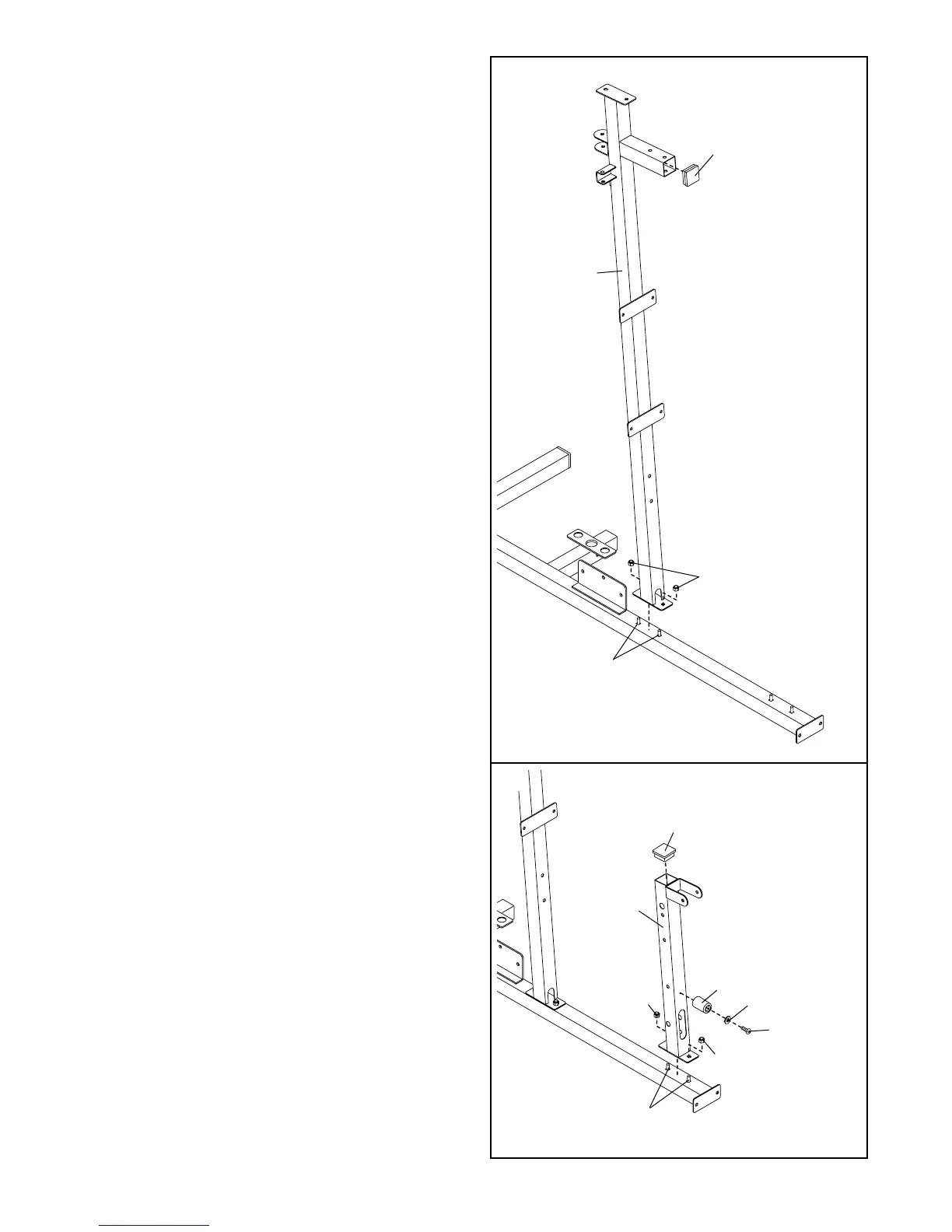

3. Press a 50mm Square Inner Cap (30) into the
Front Upright (5).
Slide the Front Upright (5) onto the indicated M10
x 65mm Carriage Bolts (64) and thread two M10
Nylon Locknuts (80) onto the Bolts. Do not tight-
en the Locknuts yet.
4. Press a 50mm Square Inner Cap (30) into the
Front Leg (7). Attach the Leg Lever Bumper (42)
to the Front Leg with an M5 Washer (19) and an
M4 x 16mm Self-tapping Screw (82).
Slide the Front Leg (7) onto the indicated M10 x
65mm Carriage Bolts (64) and thread two M10
Nylon Locknuts (80) onto the Bolts. Do not tight-
en the Locknuts yet.
