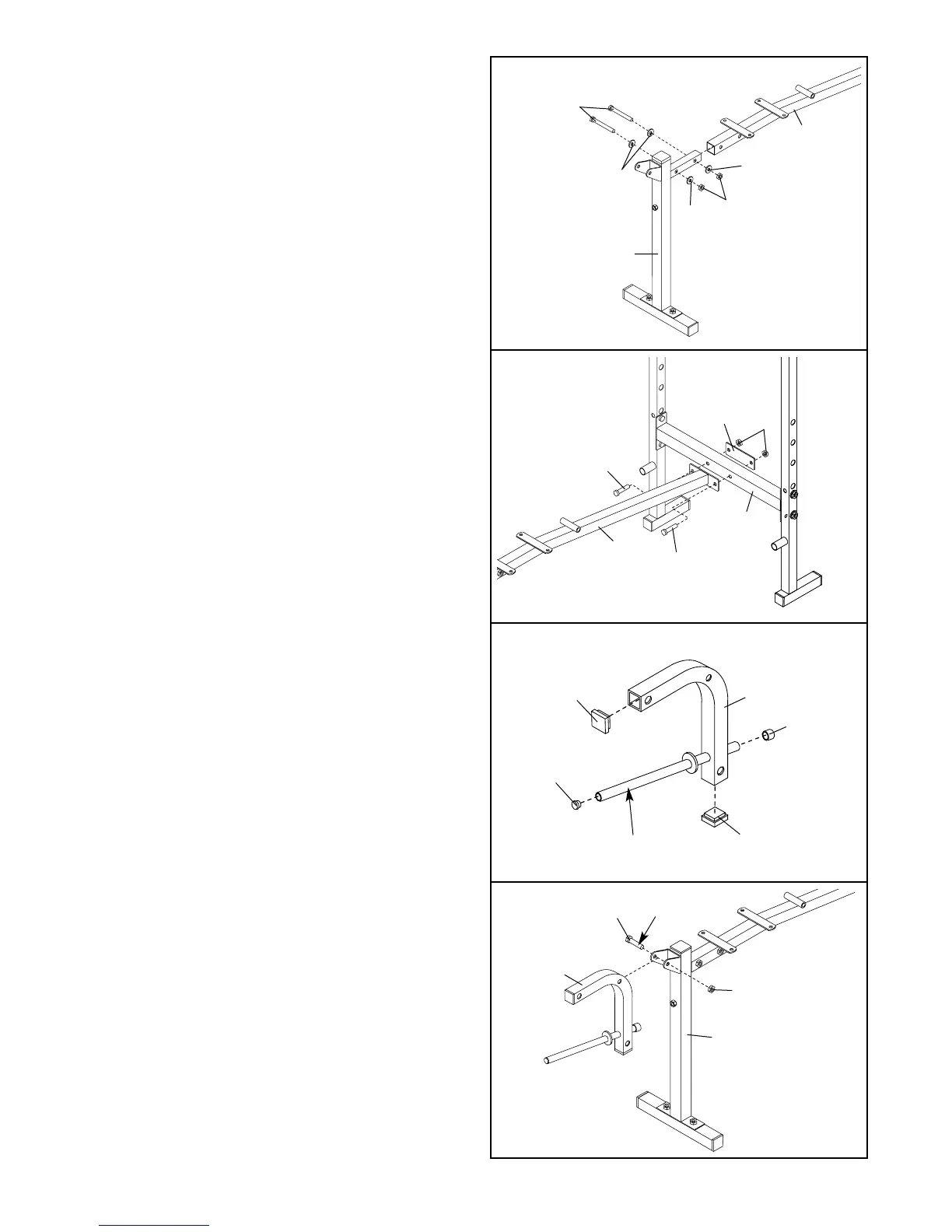

3. Attach the Front Leg (8) to the Frame (2) with two
M8 x 40mm Bolts (39), four M8 Washers (16),
and two M8 Nylon Locknuts (17). Note: Do not
tighten the Nylon Locknuts yet.
4. Attach the Frame (2) to the Crossbar (3) with two
M8 x 55mm Bolts (18), the Support Plate (40), and
two M8 Nylon Locknuts (17). Note: Do not tighten
the Nylon Locknuts yet.
5. Tap two 30mm Square Inner Caps (22) into the
ends of the Leg Lever (4).
Tap a 25mm Round Inner Cap (24) into the indi-
cated end of the weight tube on the Leg Lever
(4). Tap the 25mm Round Angled Cap (20) onto
the other end of the weight tube.
6. Lubricate the M10 x 60mm Bolt (32). Attach the
Leg Lever (4) to the bracket on the Front Leg (8)
with the Bolt and an M10 Nylon Locknut (33).
Note: Do not overtighten the Locknut; the Leg
Lever must be able to pivot easily.
3
17
2
39
16
16
8
16
4
2
3
18
40
17
18
22
24
Weight Tube
4
20
22
5
33
4
6
Lubricate
32
8
6
