Weider 740 - Cable & Seat Assembly - Part 5

14

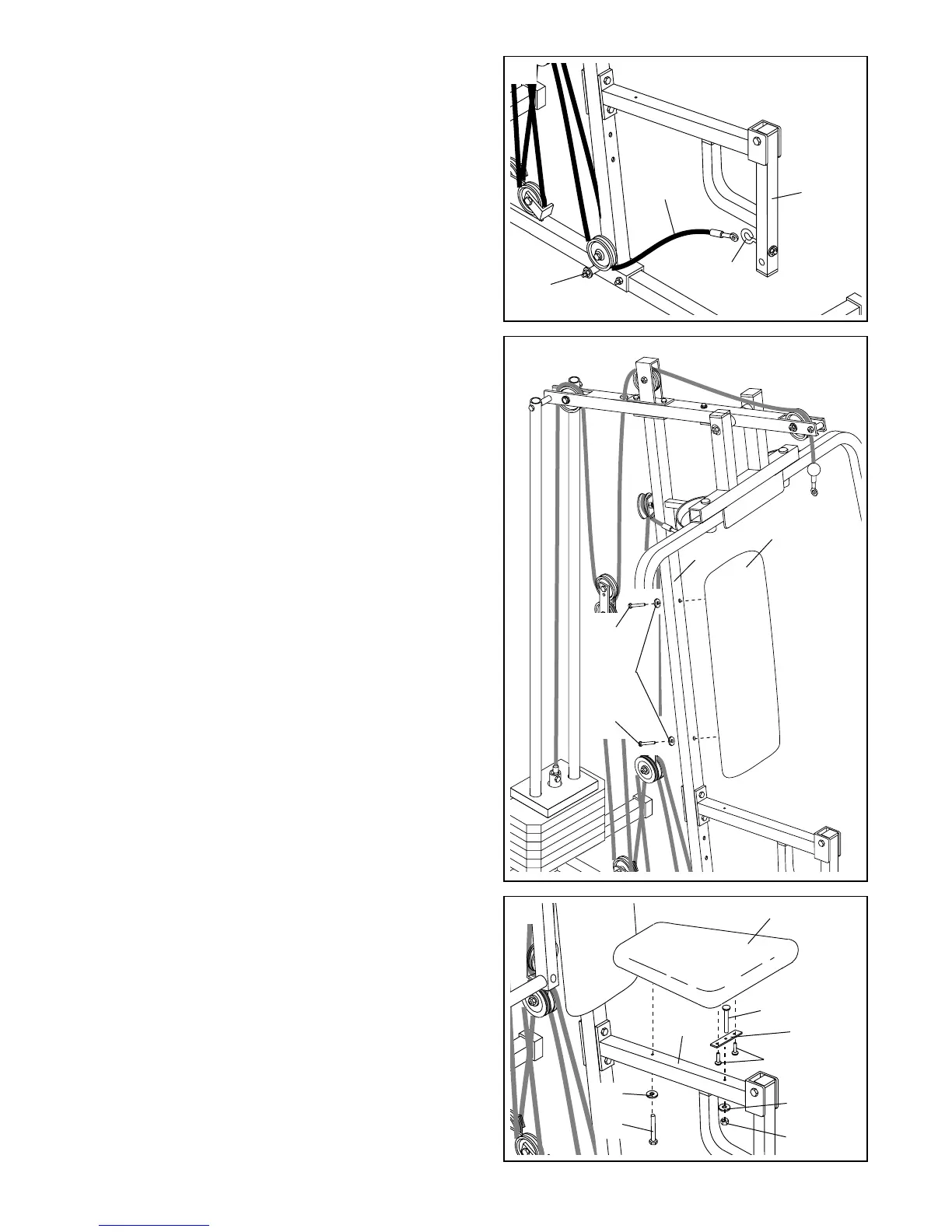

27. Hook the closed loop on the end of the Long Cable
(23) onto the 3/8” Eyebolt (35) that is mounted on the
Leg Lever (29).
Tighten the 5/16” Nylon Locknut (3) that is securing
the other end of the Long Cable (23) to the
Upright/Base.
27
23
29
35
3
28. Attach the Backrest (41) to the Upright (42) with two
1/4” x 2” Screws (24) and two 1/4” Flat Washers (10).
28
41
42
10
24
24
29. Insert the 1/4” x 2 1/4” Carriage Bolt (38) into the cen-
tre hole in the Seat Plate (37). Attach the Seat Plate
to the Seat (13) with two 1/4” x 3/4” Screws (43).
Insert the 1/4” x 2 1/4” Carriage Bolt (38) into the indi-
cated hole in the Seat Frame (36). Tighten a 1/4”
Nylon Locknut (2) with a 1/4” Flat Washer (10) onto
the Carriage Bolt.
Attach the other end of the Seat (13) to the Seat
Frame (36) with a 1/4” Flat Washer (10) and a 1/4” x
2” Screw (24).
29
37
43
2
10
36
13
38
10
24
