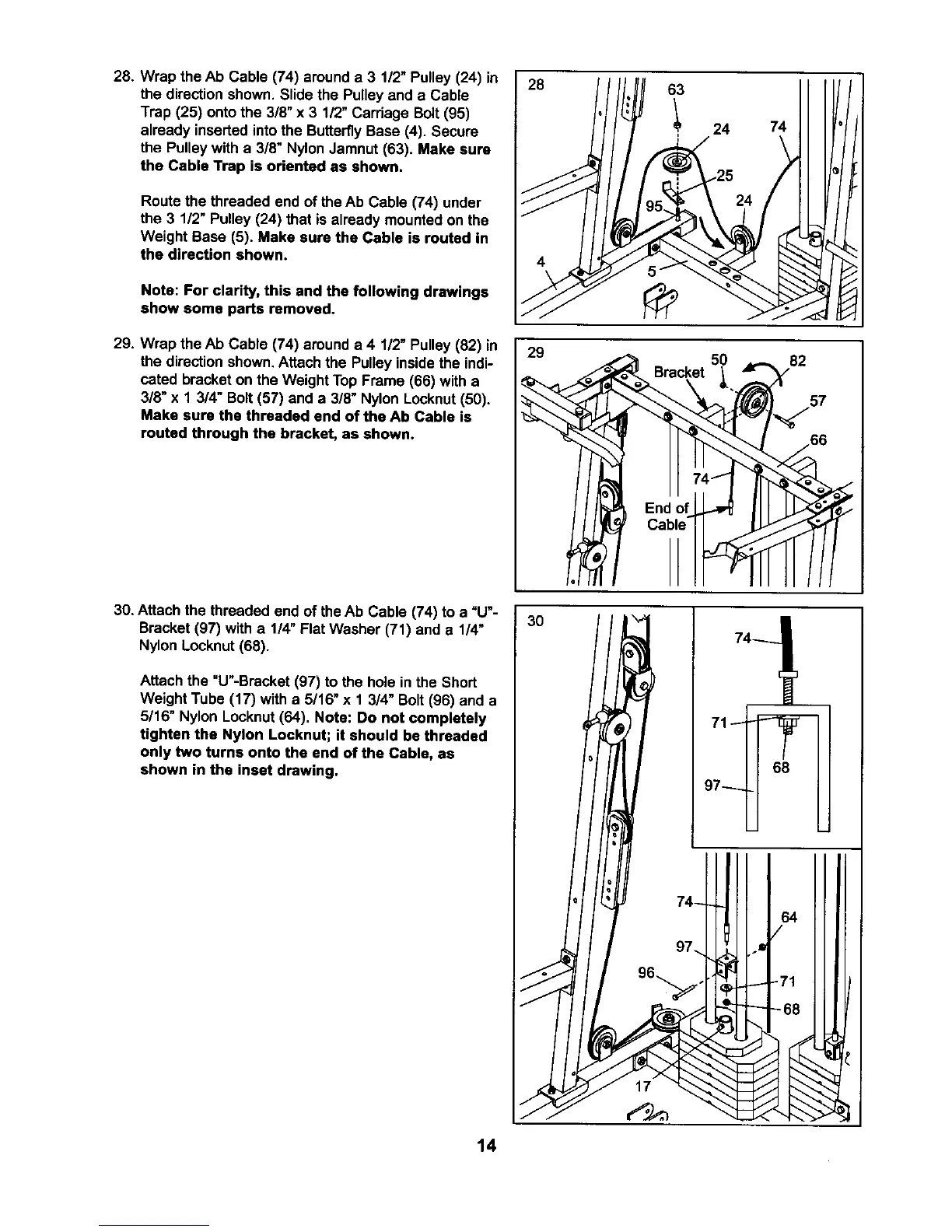

28. Wrap the Ab Cable (74) arounda 3 1/2" Pulley (24) in
the direction shown. Slidethe Pulley and a Cable
Trap (25) ontothe 3/8" x 3 1/2"Carriage Bolt (95)
already insertedinto the ButterflyBase (4). Secure
the Pulleywith a 3/8" Nylon Jamnut (63). Make sure
the Cable Trap is oriented as shown.
Route the threaded end of theAb Cable (74) under
the 3 1/2" Pulley (24) that is already mounted on the
Weight Base (5). Make sure the Cable is routed in
the direction shown.
Note: For clarity, this and the following drawings
show some parts removed.
29. Wrap the h,b Cable (74) around a 4 1/2" Pulley (82) in
the direction shown.Attachthe Pulley insidethe indi-
cated bracket on the Weight Top Frame (66) with a
3/8" x 1 3/4" Bolt (57) and a 3/8" Nylon Locknut(50).
Make sure the threaded end of the Ab Cable is
routed through the bracket, as shown.
30. Attach the threaded end of theAb Cable (74) to a =U'-
Bracket (97) with a 1/4" Flat Washer (71) and a 1/4"
Nylon Locknut (68).
Attach the "U"-Bracket(97) to the hole in the Short
Weight Tube (17) with a 5/16" x 1 3/4" Bolt(96) and a
5/16" Nylon Locknut(64). Note: Do not completely
tighten the Nylon Locknut; it should be threaded
only two turns onto the end of the Cable, as
shown in the inset drawing.
14
28
63
I 24
I
74
29
50
82
/66
./
./
3O
68
