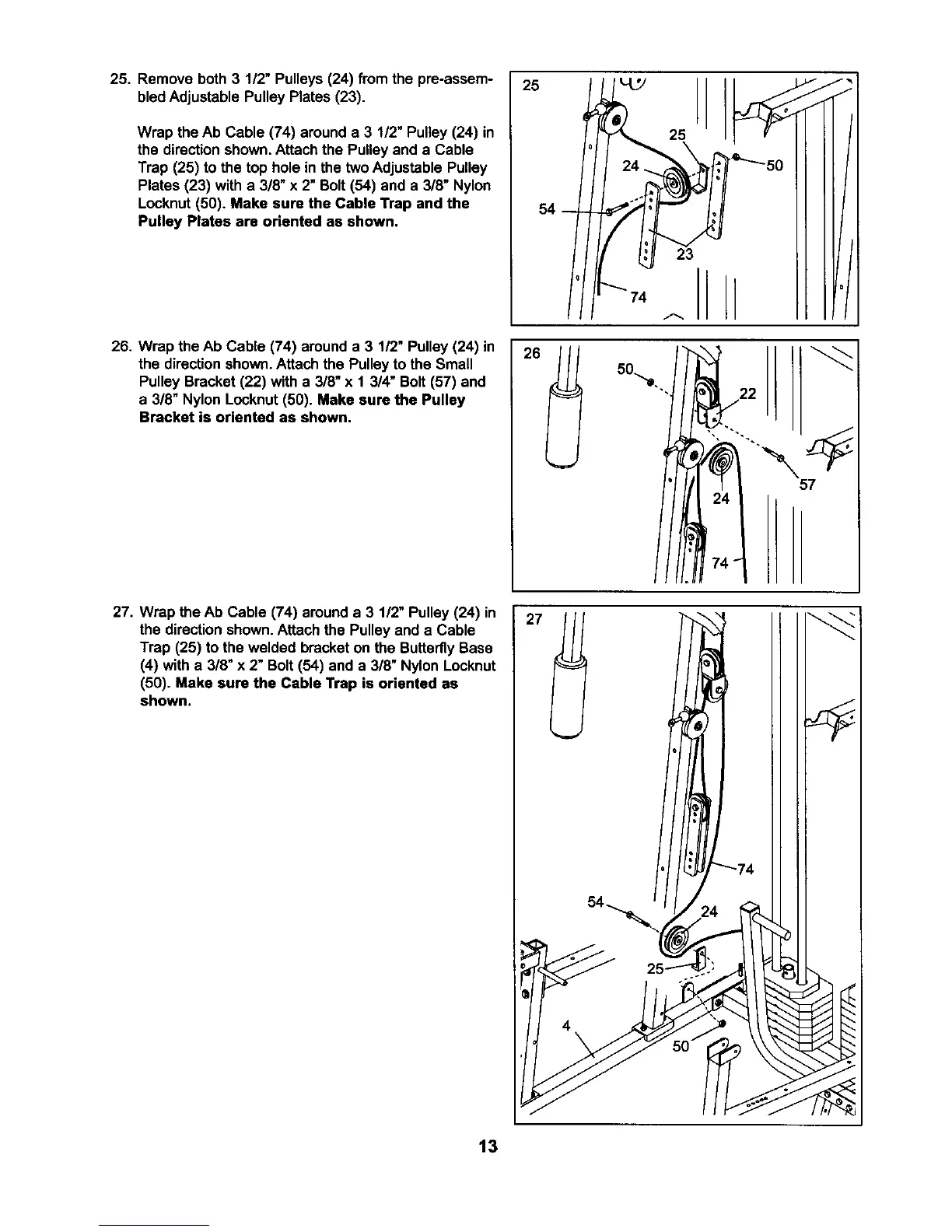

25. Remove both 3 1/2" Pulleys (24) from the pre-assem-
bledAdjustable Pulley Plates (23).
Wrap the Ab Cable (74) arounda 3 1/2" Pulley (24) in
the directionshown. Attach the Pulley and a Cable
Trap (25) to the top holein thetwoAdjustable Pulley
Plates (23) with a 3/8" x 2" Bolt(54) and a 3/8" Nylon
Locknut(50). Make sure the Cable Trap and the
Pulley Plates are oriented as shown.
26. Wrap the Ab Cable (74) around a 3 1/2" Pulley(24) in
the directionshown,Attach the Pulley to the Small
Pulley Bracket (22) with a 3/8" x 1 3/4" Bolt (57) and
a 3/8" Nylon Locknut(50). Make sure the Pulley
Bracket is oriented as shown.
27. Wrap theAb Cable (74) arounda 3 1/2" Pulley (24) in
the directionshown.Attach the Pulley and a Cable
Trap (25) to the welded bracketon the ButterflyBase
(4) with a 3/8"x 2" Bolt(54) and a 3/8" Nylon Locknut
(50). Make sure the Cable Trap is oriented as
shown.
25
25
26
23
74 A
J
J
57
t3
