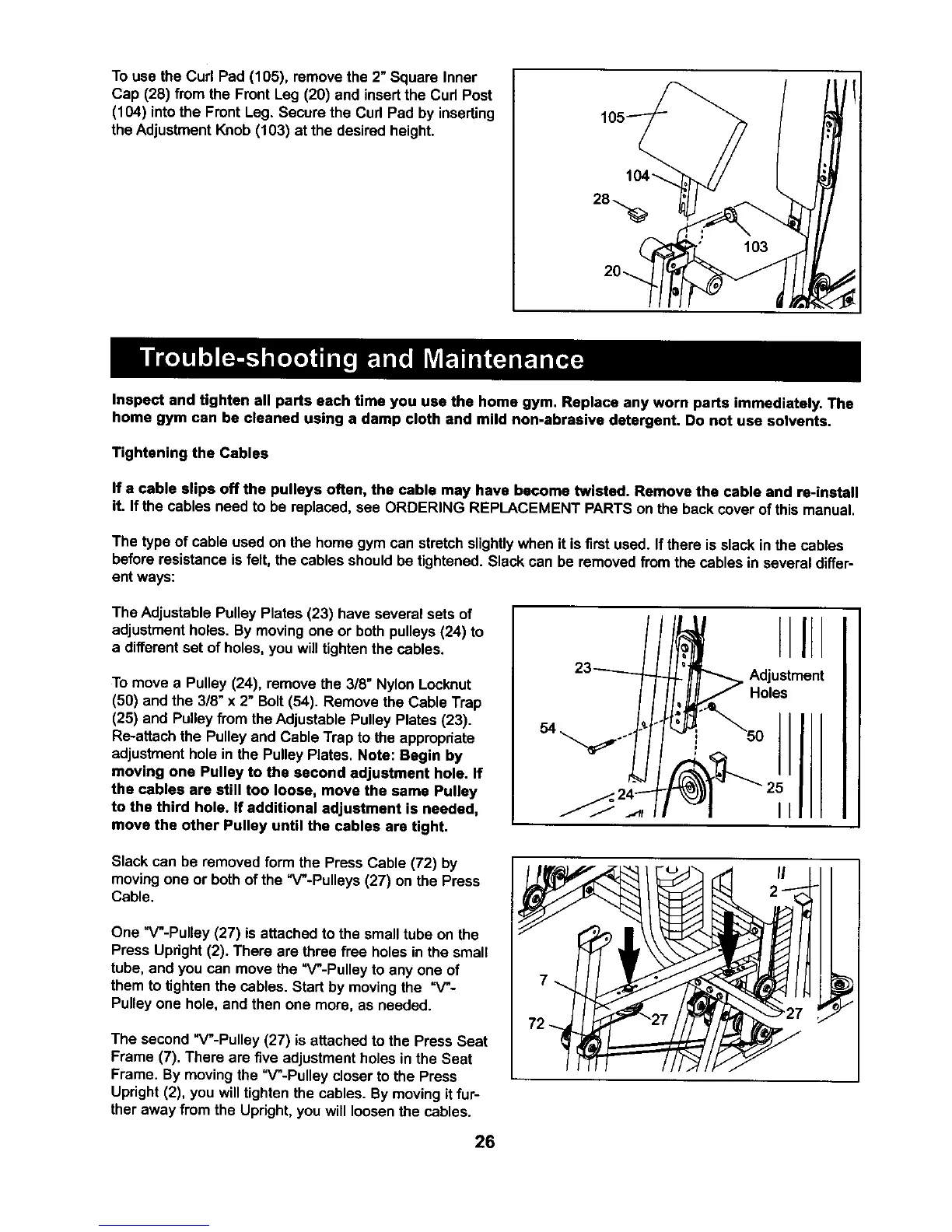

To use the Cud Pad (105), remove the 2" Square Inner
Cap (28) from the Front Leg (20) and insertthe Cud Post
(104) intothe Front Leg. Secure the Cud Pad by inserting
the AdjustmentKnob (103) at the desired height.
Inspect and tighten all parts each time you use the home gym, Replace any worn parts immediately. The
home gym can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents.
Tightening the Cables
If a cable slips off the pulleys often, the cable may have become twisted. Remove the cable and re-install
it. Ifthe cables need to be replaced,see ORDERING REPLACEMENT PARTS on the back cover of this manual.
The type of cable used on the home gym can stretchslightlywhen it is first used. If there is slack in the cables
before resistanceisfelt, the cables should be tightened. Slack can be removed from the cables in several differ-
ent ways:
The Adjustable Pulley Plates (23) have several sets of
adjustmentholes. By movingone or bothpulleys (24) to
a differentset ofholes, you will tightenthe cables.
To move a Pulley (24), remove the 3/8" Nylon Locknut
(50) and the 318"x 2" Bolt(54). Remove the Cable Trap
(25) and Pulleyfrom theAdjustable PulleyPlates (23).
Re-attach the Pulleyand Cable Trap to the appropdate
adjustmenthole in the PulleyPlates. Note: Begin by
moving one Pulley to the second adjustment hole. If
the cables are still too loose, move the same Pulley
to the third hole. If additional adjustment is needed,
move the other Pulley until the cables are tight.
I
Adjustment
Holes
II
Slack can be removed form the Press Cable (72) by
movingone or bothof the "V'-Pulleys (27) on the Press
Cable.
One "V'-Pulley (27) is attached to the smalltube on the
Press Upright(2). There are three free holes in the small
tube, and you can movethe "V'-Pulley to any one of
them to tightenthe cables. Start by movingthe =V-
Pulleyone hole, and then one more, as needed.
The second =V'-Pulley (27) is attached to the Press Seat
Frame (7). There are five adjustment holes in the Seat
Frame. By movingthe =V'-Pulley closerto the Press
Upright (2), you willtightenthe cables. By moving it fur-
ther away from the Upright,you will loosenthe cables.
