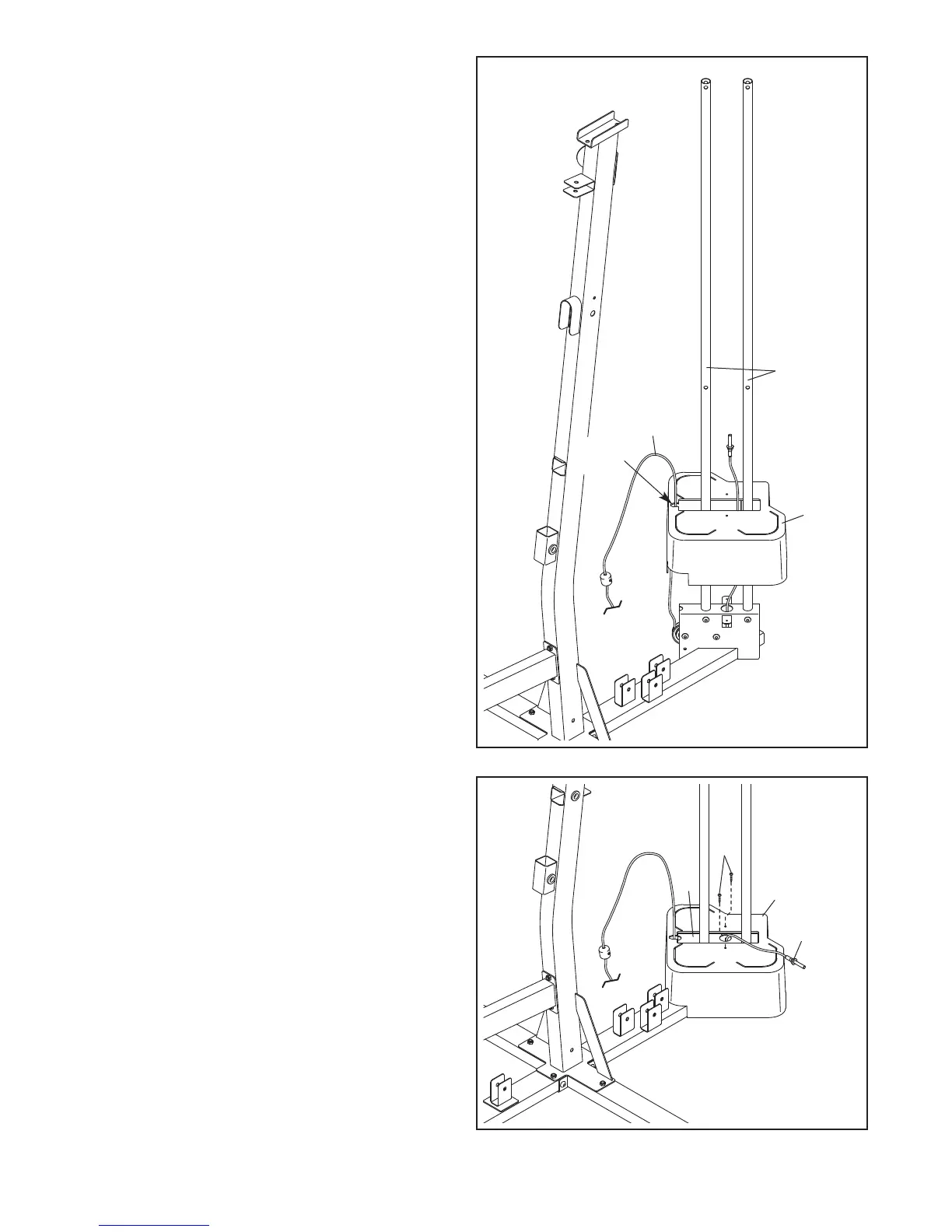

11. Orient the Bottom Cover (28) so that the notch
is in the indicated location.
S
lide the Bottom Cover (28) downward over the
Weight Guides (31) and the Burn Cable (45).
M
ake sure that the Burn Cable is routed as
shown and is inserted into the notch in the
Bottom Cover.
28
45
31
Notch
12. Make sure that the Burn Cable (45) is routed
as shown.
Attach the Bottom Cover (28) to the Base (1)
with two ST4.2 x 19mm Screws (90).
28
1
90
45
12
