Weider 9900i - Cable Diagram

38

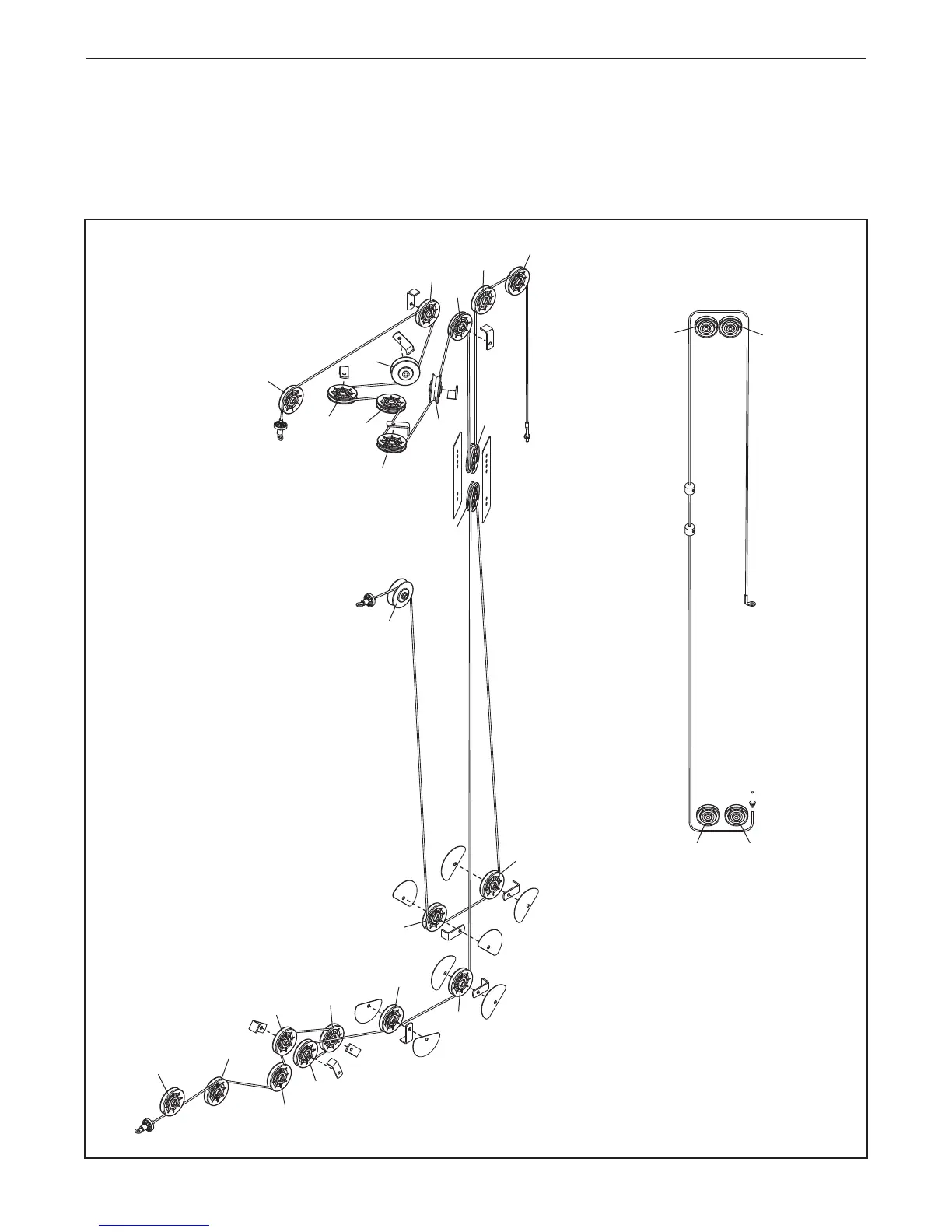

The drawings below shows the proper routing of the cables. The numbers in each drawing show the proper
r
oute of that cable. Use the drawings to make sure that the cables, cable traps, and guards are assembled cor-
rectly. If the cables are not assembled correctly, the weight system will not function properly and damage may
occur. Make sure that the cable traps do not touch or bind the cables.
1
1
1
2
2
2
3
3
4
4
5
Burn Cable (45)
Length: 133 in. (338 cm)
High Cable (44)
Length: 168 in. (427 cm)
Low Cable (43)
Length: 270 in. (686 cm)
6
3
4
5
6
7
8
9
10
11
12
7
8
9
11
10
CABLE DIAGRAM
