17

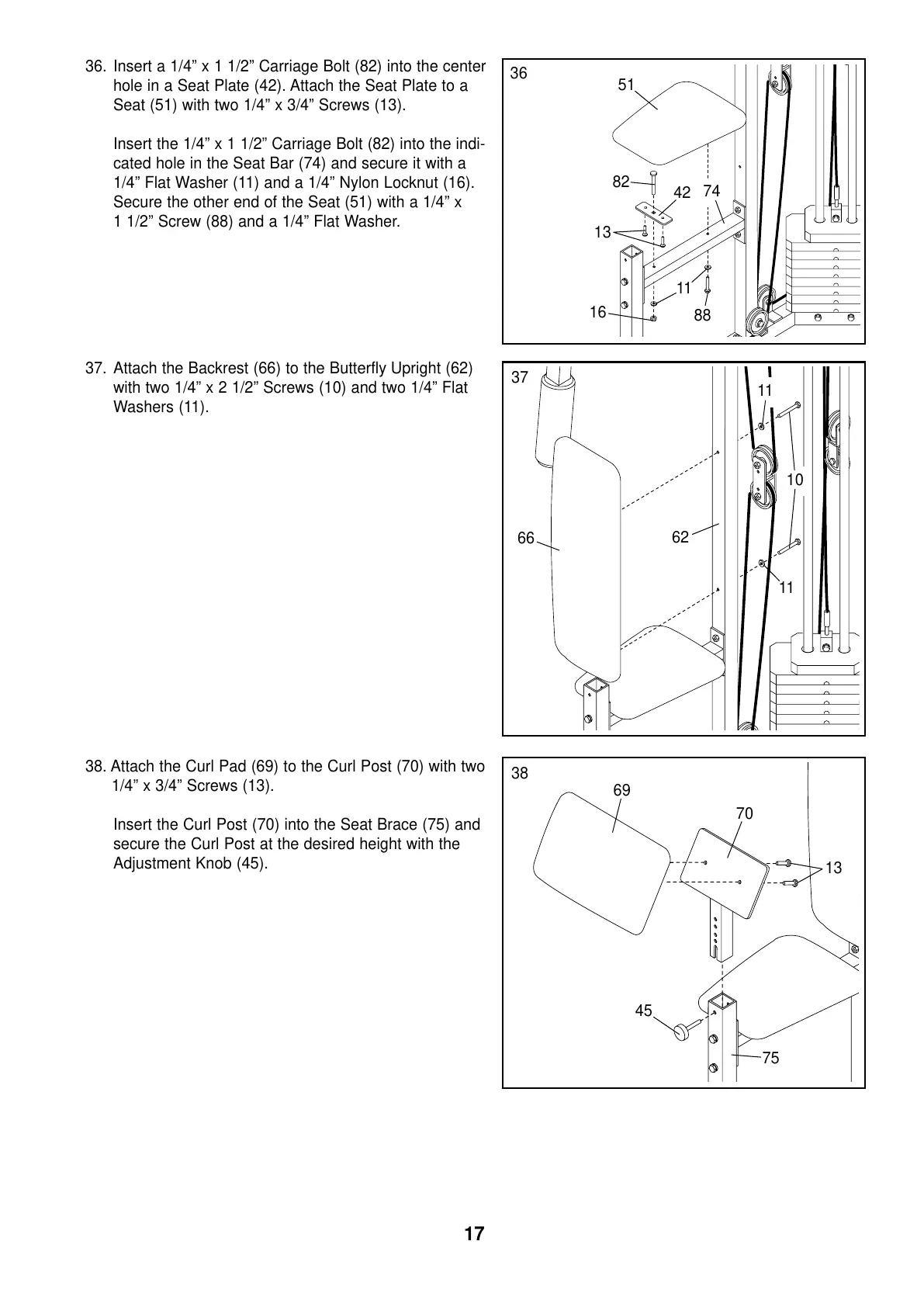

36. Insert a 1/4” x 1 1/2” Carriage Bolt (82) into the center
hole in a Seat Plate (42). Attach the Seat Plate to a
Seat (51) with two 1/4” x 3/4” Screws (13).
Insert the 1/4” x 1 1/2” Carriage Bolt (82) into the indi-
cated hole in the Seat Bar (74) and secure it with a
1/4” Flat Washer (11) and a 1/4” Nylon Locknut (16).
Secure the other end of the Seat (51) with a 1/4” x
1 1/2” Screw (88) and a 1/4” Flat Washer.
37. Attach the Backrest (66) to the Butterfly Upright (62)
with two 1/4” x 2 1/2” Screws (10) and two 1/4” Flat
Washers (11).
38. Attach the Curl Pad (69) to the Curl Post (70) with two
1/4” x 3/4” Screws (13).
Insert the Curl Post (70) into the Seat Brace (75) and
secure the Curl Post at the desired height with the
Adjustment Knob (45).
37
66
62
10
11
11
38
70
69
45
75
13
36
51
11
88
16
82
42
74
13
