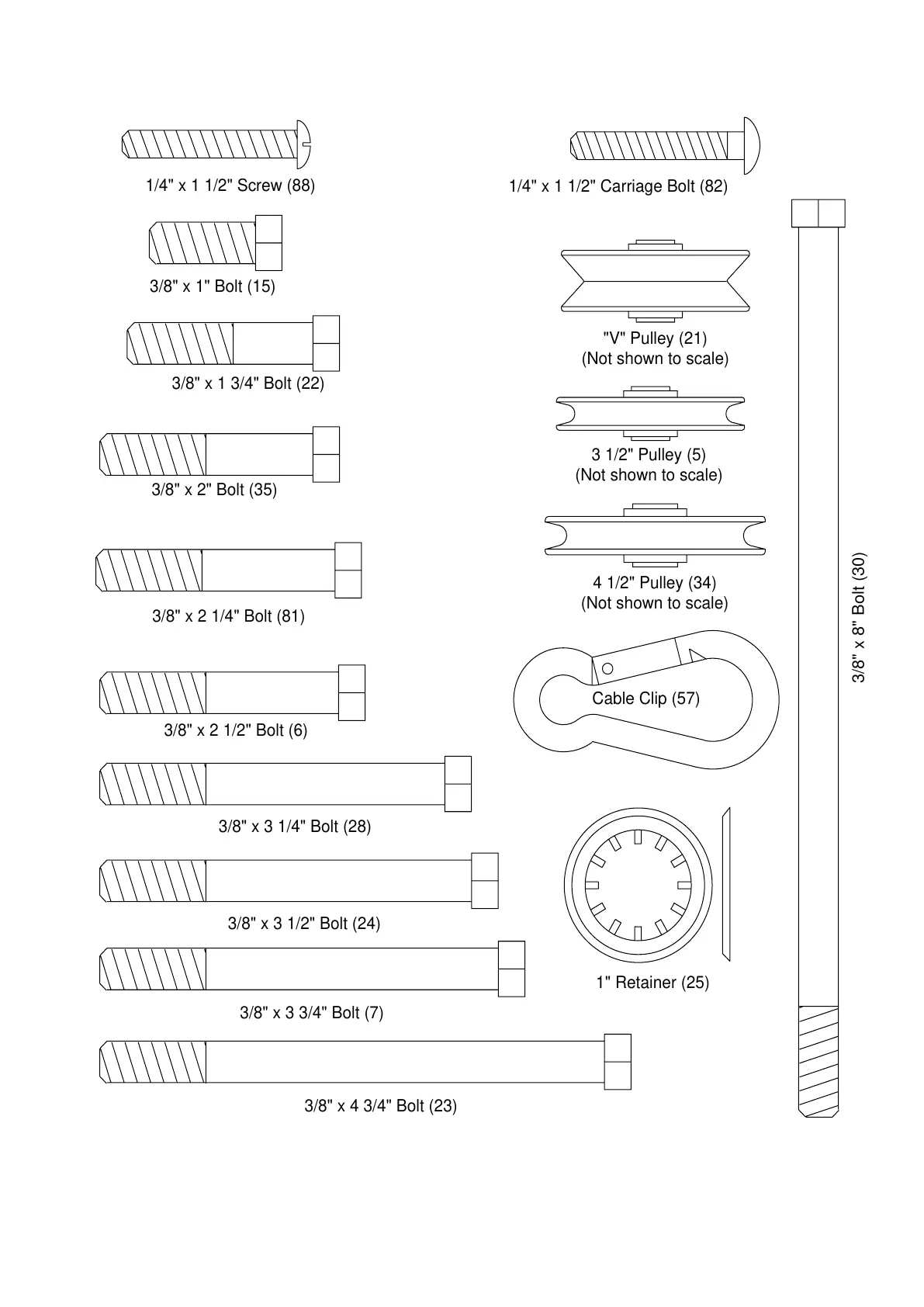

Weider 9930 - Page 27

1" Retainer (25)
3/8" x 2" Bolt (35)
3/8" x 3 1/2" Bolt (24)
3/8" x 2 1/2" Bolt (6)
3/8" x 3 3/4" Bolt (7)
3/8" x 8" Bolt (30)
Cable Clip (57)
3/8" x 3 1/4" Bolt (28)
"V" Pulley (21)
(Not shown to scale)
3 1/2" Pulley (5)
(Not shown to scale)
4 1/2" Pulley (34)
(Not shown to scale)
3/8" x 1" Bolt (15)
3/8" x 1 3/4" Bolt (22)
3/8" x 4 3/4" Bolt (23)
3/8" x 2 1/4" Bolt (81)
1/4" x 1 1/2" Screw (88)
1/4" x 1 1/2" Carriage Bolt (82)
