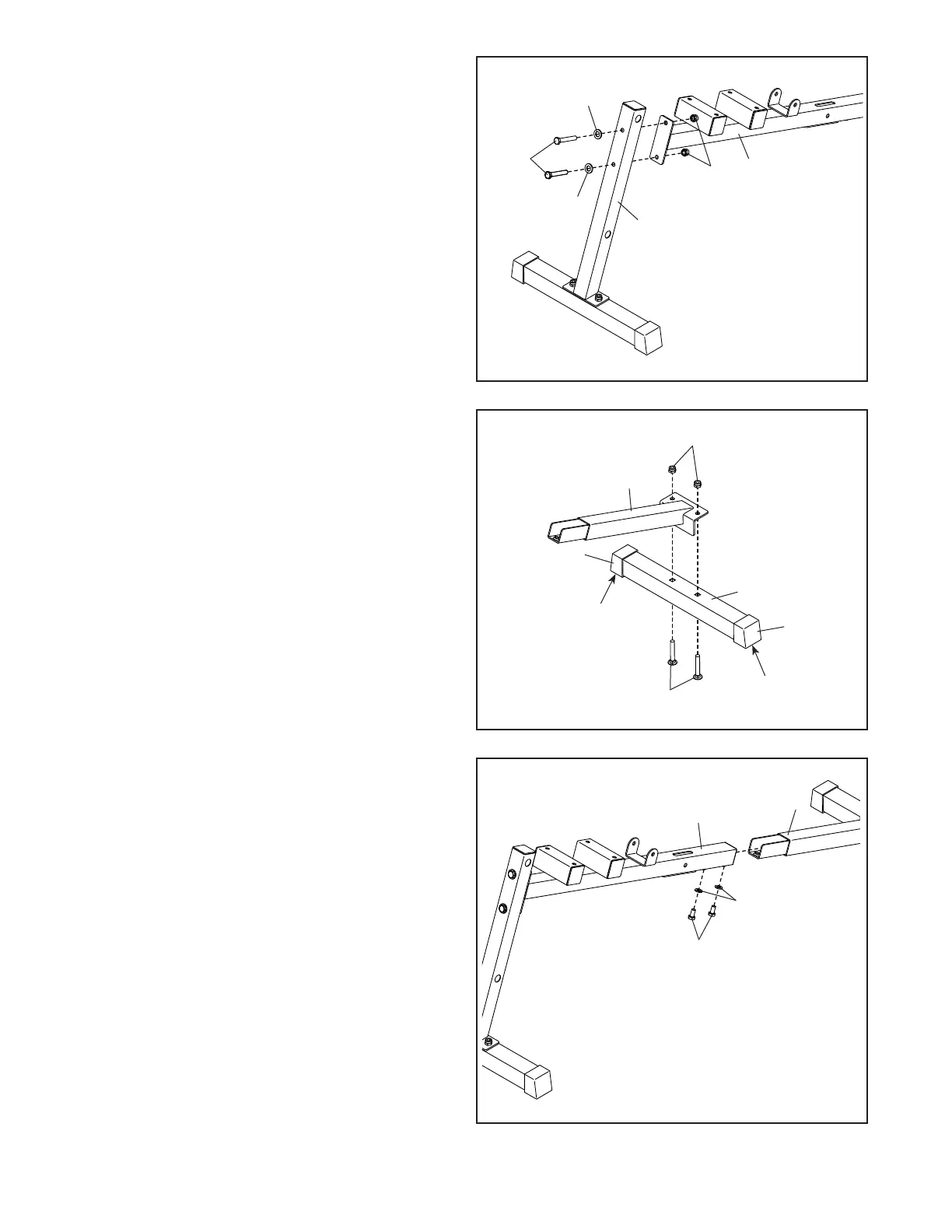

4. Orient a Stabilizer (4) so that the widest sides
(A) of the 50mm Outer Caps (12) touch the floor.
Attach the Stabilizer (4) to the Rear Leg (3)
with two M10 x 65mm Carriage Bolts (18) and
two M10 Locknuts (19); do not tighten the
Locknuts yet.
5 Attach the Rear Leg (3) to the Frame (1) with
two M10 x 20mm Screws (25) and two M10
Washers (20).
See steps 2–4. Tighten the M10 Locknuts (19).
4
19
3
18
4
5
20
25
3
1
3. Attach the Front Leg (2) to the Frame (1) with
two M10 x 63mm Bolts (16), two M10 Large
Washers (27), and two M10 Locknuts (19); do
not tighten the Locknuts yet.
3
1
19
16
27
27
2
12
12
A
A
