Weider PRO 900 - Page 7

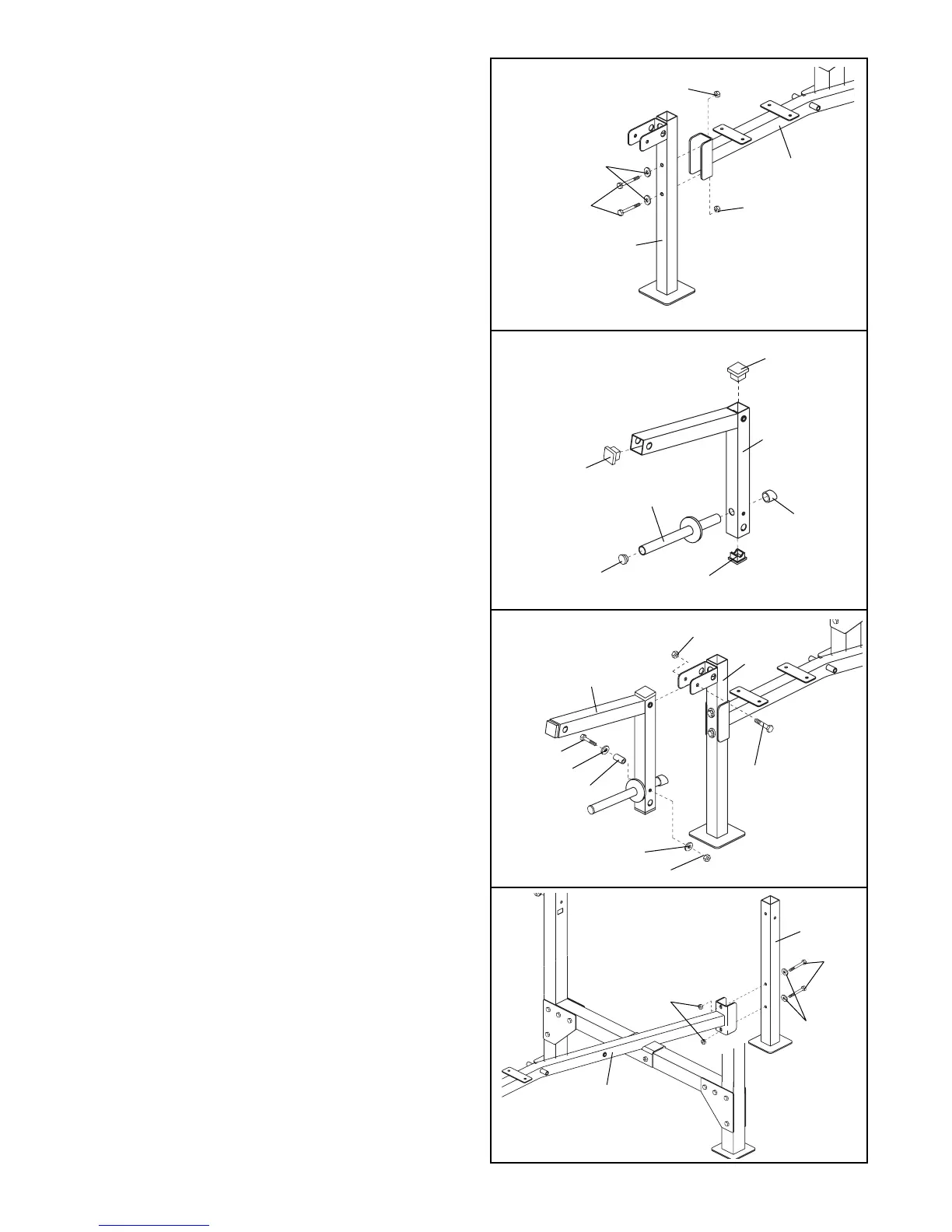

3. Attach the Front Leg (8) to the Frame (2) with two
M10 x 65mm Bolts (18), two M10 Washers (24),
and two M10 Nylon Locknuts (19).
4. Tap three 45mm Square Inner Caps (21) into Leg
Lever (4) as shown.
Tap a 1Ó Round Inner Cap (23) into the indicated
end of the Weight Tube (52).
Insert the Weight Tube (52) into the indicated hole
in the Leg Lever (4). Press a 1Ó Angle Cap (50)
onto the indicated end of the Weight Tube.
Note: If you purchased the optional Olympic
expansion kit, attach the Olympic sleeve to the
Weight Tube (52) as shown in the accessory
manual.
5. Lubricate an M10 x 72mm Bolt (53). Attach the
Leg Lever (4) to the Front Leg (8) with the Bolt
and an M10 Nylon Locknut (19).
Attach the Narrow Spacer (30) to the Leg Lever
(4) with the M8 x 58mm Bolt (49), two M8
Washers (48), and an M8 Nylon Locknut (13).
Note: The Spacer will fit tightly inside of the
Leg Lever.
6. Attach the Frame (2) to the Lat Tower Base (35)
with two M10 x 67mm Bolts (14), two M10
Washers (24), and two M10 Nylon Locknuts (19).
