19

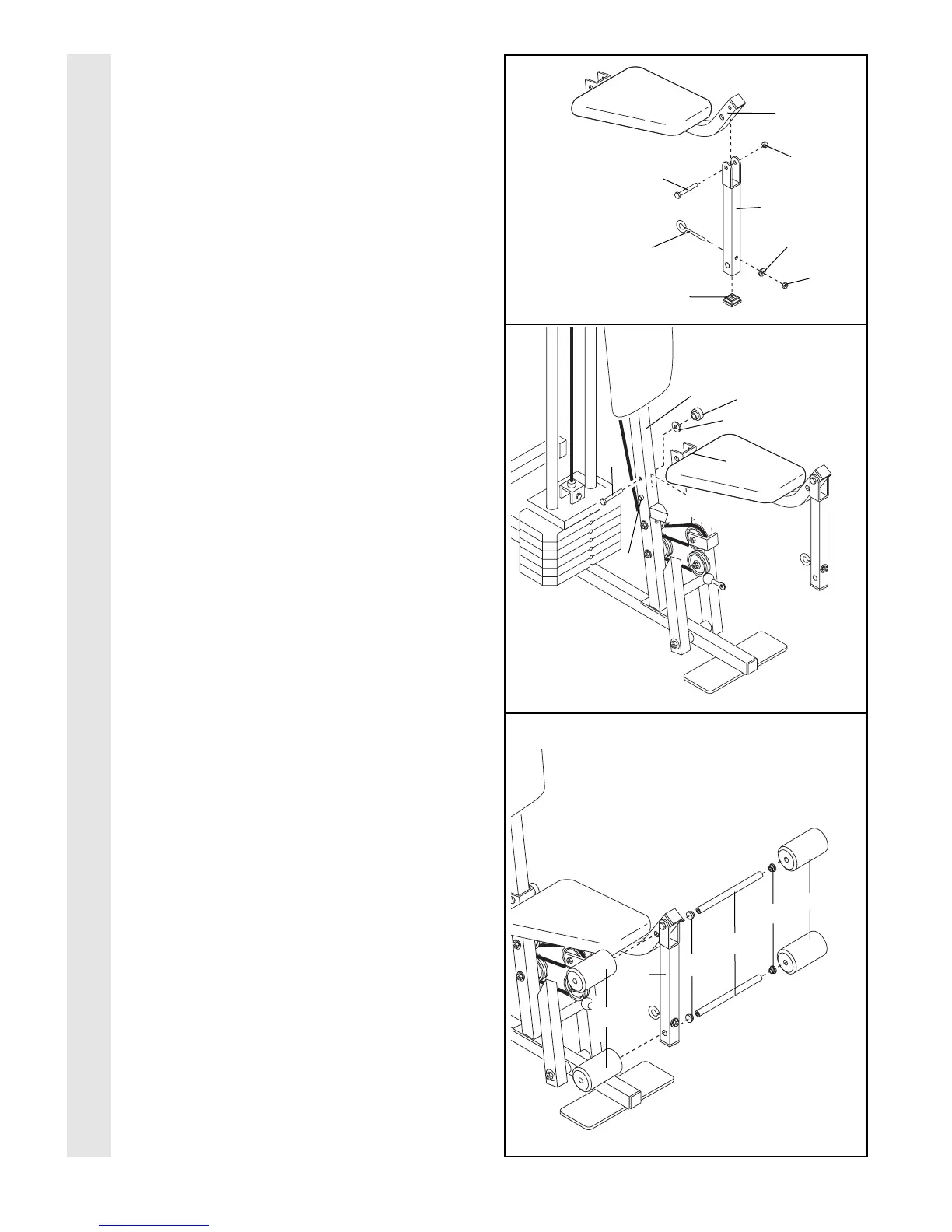

SEAT ASSEMBLY
43. Press two 3/4Ó Round Inner Caps (34) into
each Pad Tube (28).
Insert a Pad Tube (28) into the Front Seat
Frame (36). Slide a Foam Pad (30) onto each
end of the Pad Tube.
Insert the other Pad Tube (28) into the Leg
Lever (29). Slide a Foam Foam Pad (30) onto
each end of the Pad Tube.
43
30
30
34
34
28
29
41. Press a 1 1/2Ó Square Inner Cap (32) into the
Leg Lever (29).
Lubricate the 5/16Ó x 2 1/4Ó Bolt (33). Attach
the Leg Lever (29) to the Front Seat Frame
(36) with the Bolt and a 5/16Ó Nylon Locknut
(3).
Insert the 5/16Ó x 2Ó Eyebolt (35) into the Leg
Lever (29) from the direction shown. Tighten a
5/16Ó Nylon Locknut (3) with a 5/16Ó Flat
Washer (8) onto the Eyebolt.
42. Rest the Front Seat Frame (36) on the indicat-
ed pin in the Front Upright (42). Attach the
Front Seat Frame to the Front Upright with a
5/16Ó x 2 3/4Ó Carriage Bolt (14), 3/16Ó Flat
Washer (8), and the Seat Knob (40).
42
41
3
8
3
29
33
35
32
36
36
42
40
8
14
Pin
To Next Page
