16

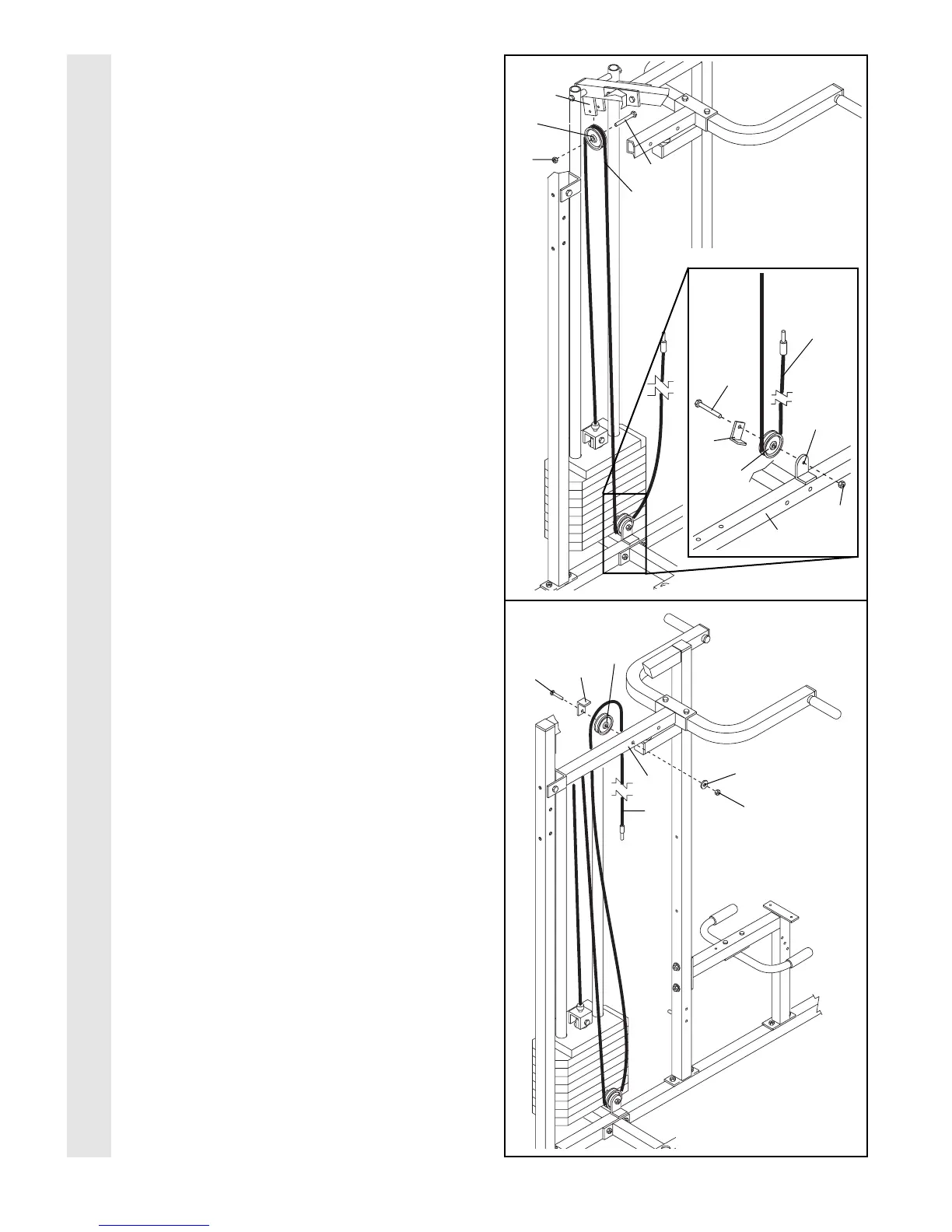

32. Wrap the Military Press Cable (72) around a
3 1/2Ó Pulley (15). Attach the Pulley to the Top
Frame (55) with a 3/8Ó x 2Ó Bolt (12) and a
3/8Ó Nylon Locknut (21).
See the inset drawing. Wrap the Long Cable
(72) around a 3 1/2Ó Pulley (15). Attach the
Pulley and a Cable Trap (66) to the bracket
on the Stabilizer (5) with a 3/8Ó x 2Ó Bolt (12)
and a 3/8Ó Nylon Locknut (21). Be sure that
the Cable Trap is turned to hold the Cable
in place.
33. Wrap the Military Press Cable (72) around a 3
1/2Ó Pulley (15). Attach the Pulley and a
Cable Trap (66) to the Pivot Arm (101) with
the 3/8Ó x 3 3/4Ó Bolt (88), a 3/8Ó Flat Washer
(9), and a 3/8Ó Nylon Locknut (21). Be sure
that the Nylon Locknut is on the side
shown and that the Cable Trap is posi-
tioned to hold the Cable in place.
32
33
CABLE ASSEMBLY
5
88
72
21
66
101
15
Bracket
9
66
12
72
15
15
21
21
55
12
72
