8

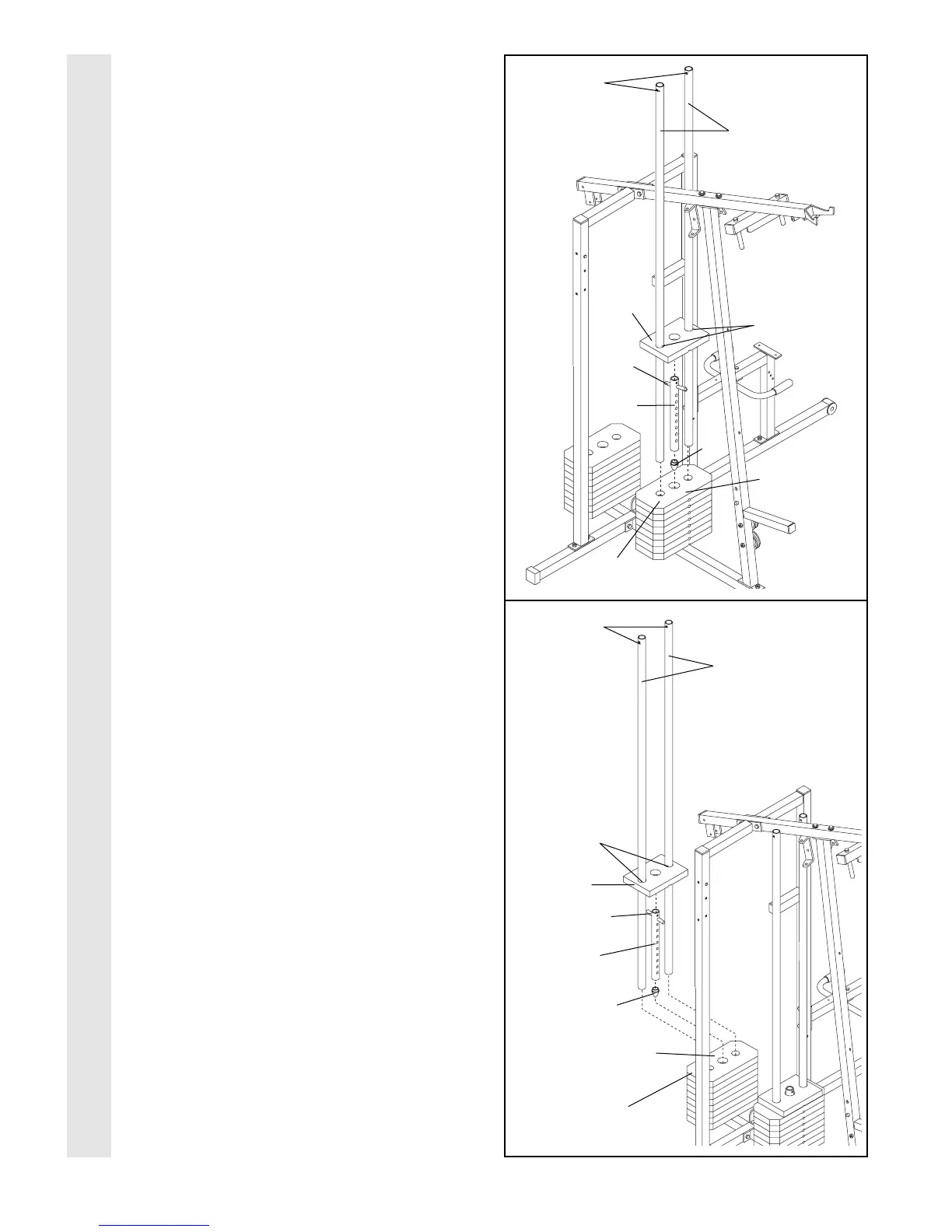

7. Press a Weight Tube Bumper (64) into the
end of a Weight Tube (63). Insert the Weight
Tube into the front stack of Weights (25). Be
sure that the pin on the Weight Tube is sit-
ting in the pin grooves in the top Weight.
Lubricate the inside of the holes in a Top
Weight (65). Set the Top Weight onto the front
stack of Weights (25). Insert both Long
Weight Guides (62) into the stack of Weights.
Be sure that the holes in the Weight
Guides are at the top, as shown.
8. Press a Weight Tube Bumper (64) into the
end of the other Weight Tube (63). Insert the
Weight Tube into the rear stack of Weights
(25). Be sure that the pin on the Weight
Tube is sitting in the pin grooves in the top
Weight.
Lubricate the inside of the holes in the other
Top Weight (65). Set the Top Weight onto the
rear stack of Weights (25). Insert both Short
Weight Guides (73) into the stack of Weights.
Be sure that the holes in the Weight
Guides are at the top, as shown.
7
Holes
Lubricate
62
65
Pin
63
64
Pin Grooves
Holes
Lubricate
73
65
Pin
63
64
Pin Grooves
25
25
8
FRAME ASSEMBLY
