ADJUSTMENTS
9
13

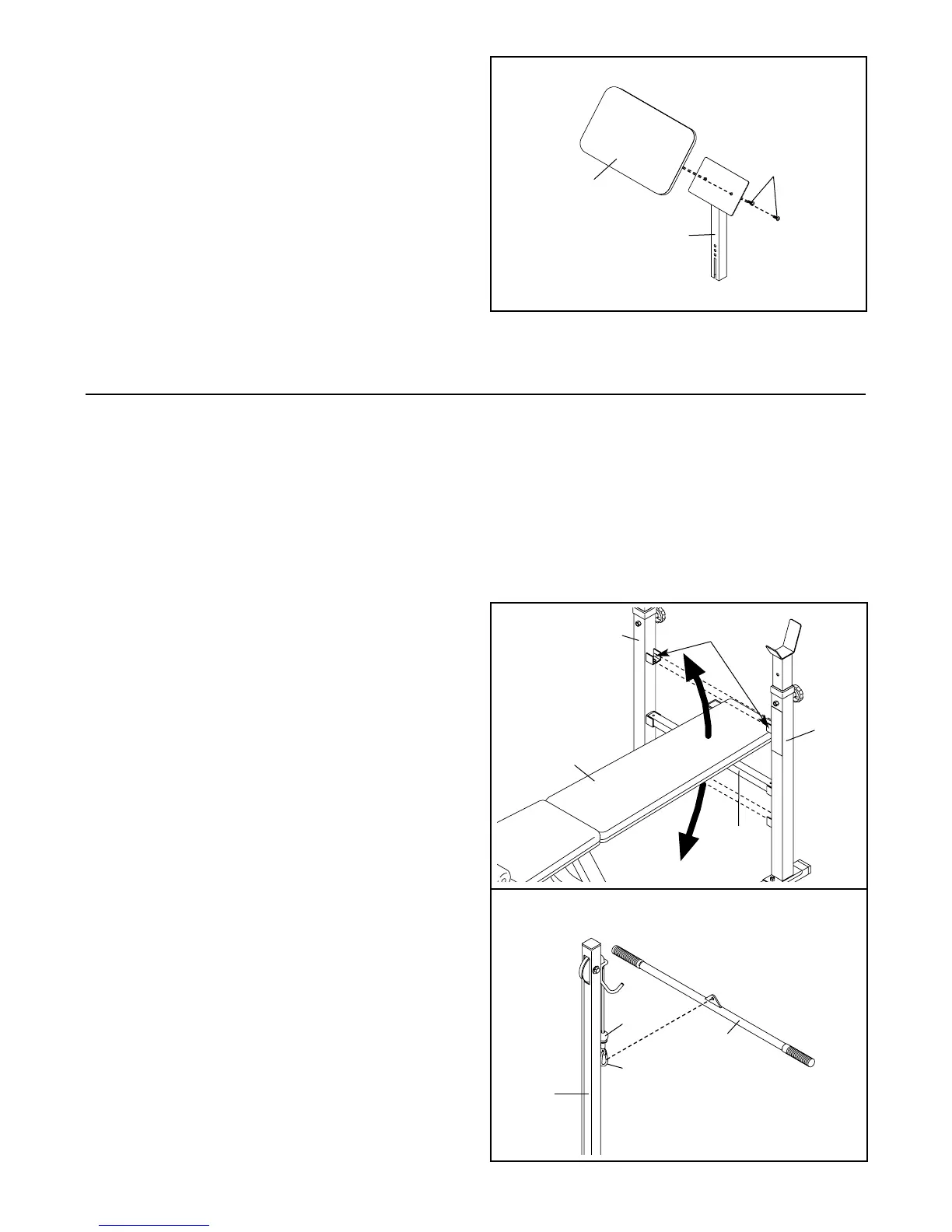

13. Attach the Curl Pad (17) to the Curl Post (13)
using two M6 x 16mm Screws (10). The Curl
Post and the Lat Tower attach to the weight
bench in the same place. Instructions for
switching between the Curl Post and the Lat
Tower can be found in the following section.
14. Make sure all parts are properly tightened
before you use the weight bench.
17
13
10
This section explains how to adjust the weight bench. See the EXERCISE GUIDELINES on page 12 for impor-
tant information on how to get the most benefit from your exercise program. Also, refer to the accompanying
exercise guide to see the correct form for each exercise.
Make sure all parts are properly tightened each time the weight bench is used. Replace any worn parts immediate-
ly. The weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.
ADJUSTING THE BACKREST
The Backrest (15) can be set to three different posi-
tions: a level position, a decline position, and an
incline position.
To change the position of the Backrest (15), move the
Adjustment Tube (37) to a different set of adjustment
brackets on the Uprights (4, 5).
Make sure the Adjustment Tube (37) is securely
seated in the adjustment brackets.
15
Brackets
5
4
37
11
18
35
25
ATTACHING THE LAT BAR TO THE LAT TOWER
To use the Lat Tower (11), attach the Lat Bar (18) to
the Cable (25) with a Cable Clip (35).
