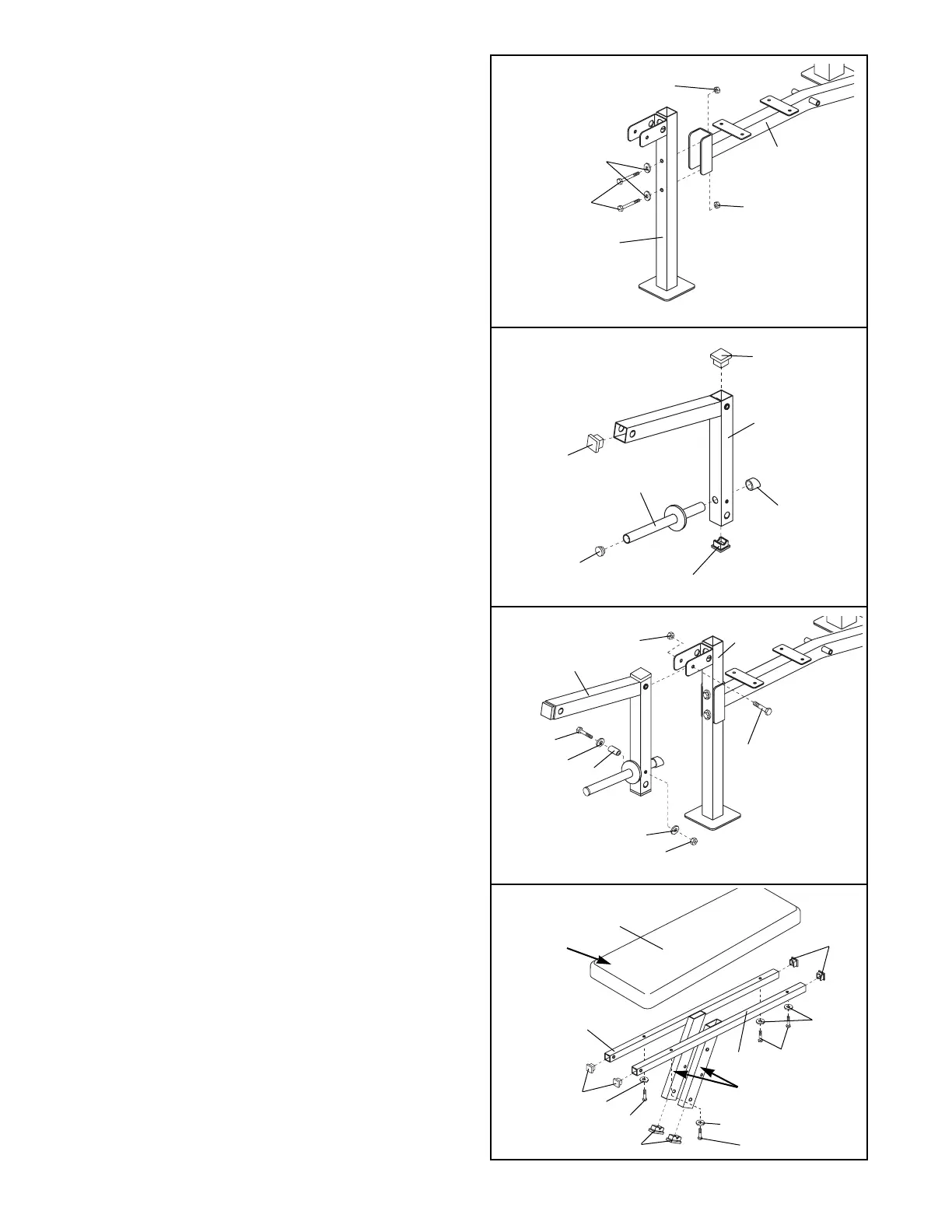

3. Attach the Front Leg (8) to the Frame (2) with two
M10 x 65mm Bolts (18), two M10 Washers (24),
and two M10 Nylon Locknuts (19).
4. Tap three 45mm Square Inner Caps (21) into the
Leg Lever (4) as shown.
Tap a 1Ó Round Inner Cap (23) into the indicated
end of the Weight Tube (41).
Insert the Weight Tube (41) into the Leg Lever (4).
Press a 1Ó Angle Cap (29) onto the indicated end
of the Weight Tube.
5. Lubricate an M10 x 72mm Bolt (40). Attach the
Leg Lever (4) to the Front Leg (8) with the Bolt
and an M10 Nylon Locknut (19). Do not overtight-
en the Nylon Locknut. The Leg Lever must be
able to pivot freely.
Attach the Spacer (37) to the Leg Lever (4) with
the M8 x 58mm Bolt (39), two M8 Washers (38),
and an M8 Nylon Locknut (13). Note: The Spacer
will fit tightly inside the Leg Lever.
6. Press four 1Ó Square Inner Caps (12) into the
Backrest Tubes (5, 42). Press two 1Ó x 2Ó Inner
Caps (36) into the adjustment tubes.
With the wide end of the Backrest (6) positioned
as shown, attach the Backrest Tubes (5, 42) to
the Backrest with four M6 x 38mm Screws (16)
and four M6 Washers (25). Note: The Backrest
Tubes and the Backrest must be oriented
exactly as shown.
