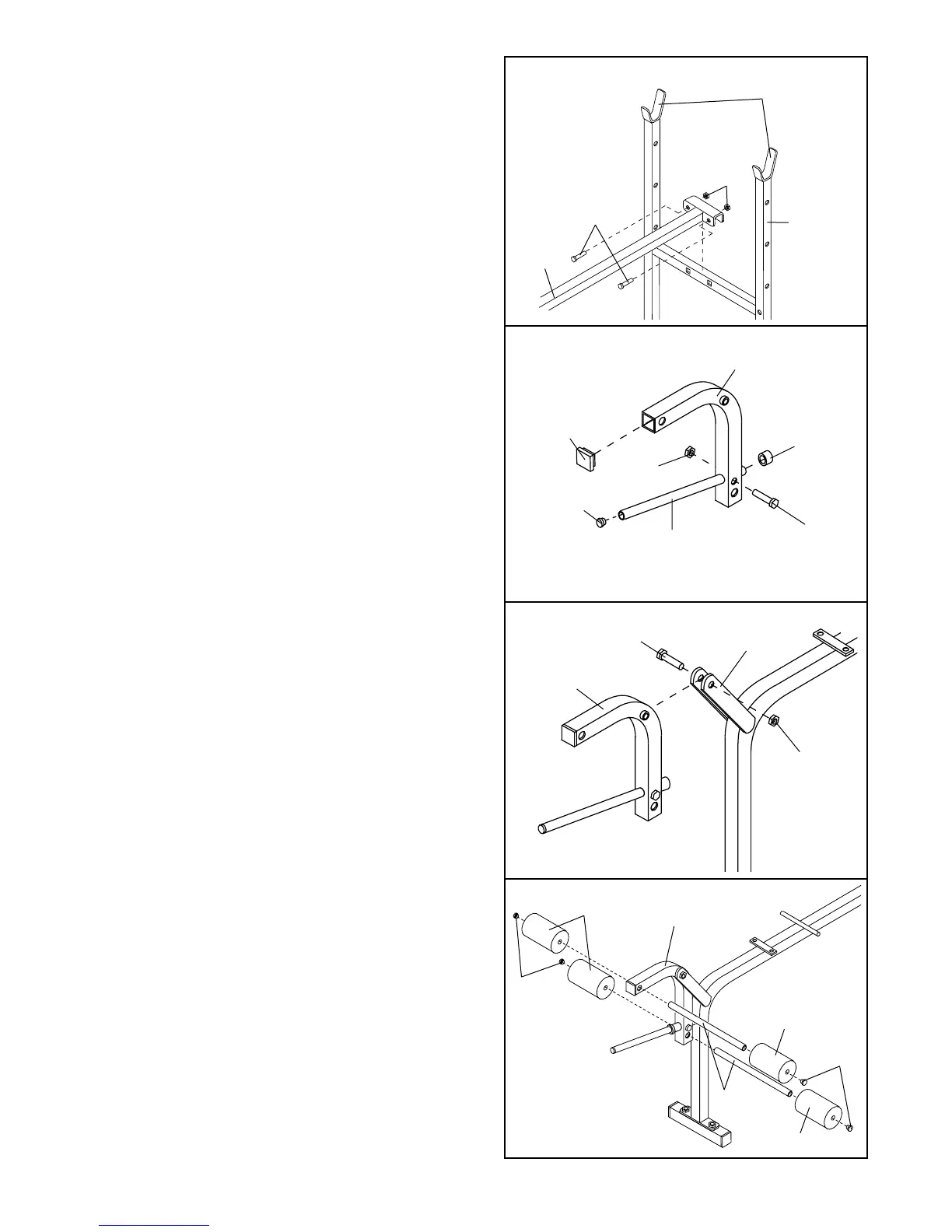

3. Be sure that the “H”-Frame (1) is oriented as
shown. The high side of the weight rests must be
on the side indicated. Attach the Main Frame (2) to
the “H”-Frame (1) with two 5/16” x 2 1/4” Bolts (16)
and two 5/16” Nylon Locknuts (19).
4. Attach the 13 3/4” Weight Tube (41) to the Leg
Lever (4) with a 5/16” x 2” Bolt (15) and a 5/16”
Nylon Locknut (19).
Press a 1” Round Inner Cap (24) into the indicated
end of the 13 3/4” Weight Tube (41). Press the 1”
Angled Round Cap (31) onto the Weight Tube.
Press a 1 1/2” Square Inner Cap (30) into the indi-
cated end of the Leg Lever (4).
5. Lubricate the 3/8” x 2 1/4” Bolt (14). Attach the Leg
Lever (4) to the Main Frame (2) with the 3/8” x 2 1/4”
Bolt and a 3/8” Jam Nut (18). Do not overtighten
the Jam Nut. The Leg Lever must be able to
pivot freely.
6. Tap two 3/4” Round Inner Caps (26) into each Pad
Tube (10). Insert the Pad Tubes through the holes
in the Leg Lever (4). Slide two Foam Pads (23)
onto each Pad Tube.
6
3
4
5
30
4
31
15
41
24
19
1
19
16
2
4
2
18
Lubricate—14
4
26
High Side of
Weight Rests
23
23
10
26
23
To Next Page
