8

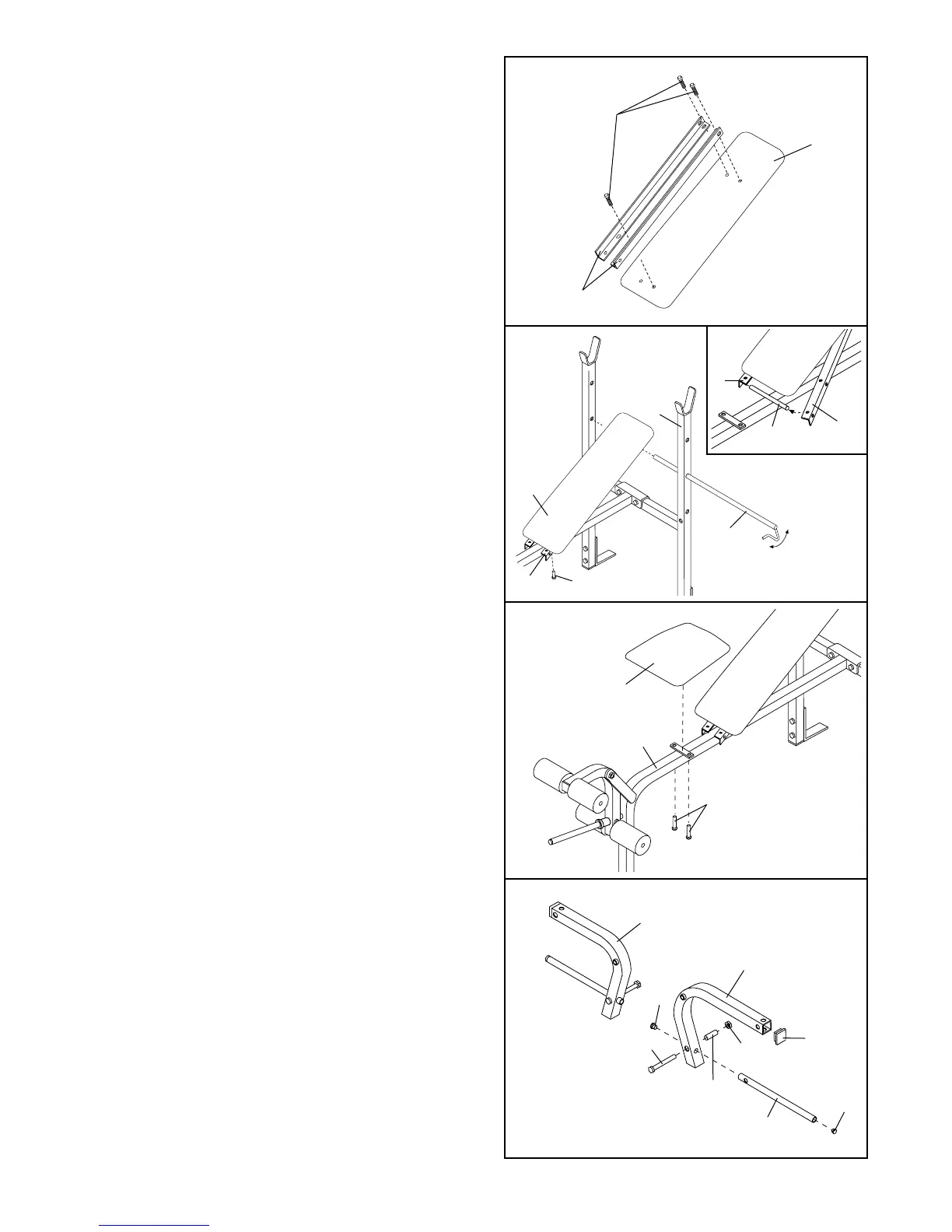

7. Attach one Backrest Bracket (5) to the Backrest (6)
with two 1/4” x 3/4” Screws (13). Be sure the
Backrest Bracket is oriented as shown. Attach
the other Backrest Bracket to the Backrest with one
1/4” x 3/4” Screw. Be sure the Backrest Bracket
is also oriented as shown. Note: Do not tighten
the three Screws. The fourth 1/4” x 3/4” Screw
will be attached at the end of step 8.
8. Insert the Support Rod (7) through one of the three
sets of holes in the “H”-Frame (1). Rotate the
Support Rod to the locked position, with the end of
the Support Rod clipped onto the “H”-Frame.
See the inset drawing. Slide the ends of both
Backrest Brackets (5) onto the pin on the Frame
(2).
Attach the free end of the Backrest Bracket (5) to
the Backrest (6) with a 1/4” x 3/4” Screw (13). Fully
tighten all four 1/4” x 3/4” Screws.
9. Attach the Seat (11) to the bracket on the Main
Frame (2) with two 1/4” x 3/4” Screws (13).
10. Press a 1 1/2” Square Cap (30) into the indicated
end of one of the Fly Arms (42).
Attach an 11” Weight Tube (39) to the Fly Arm (42)
with a 5/16” x 5” Bolt (32), a 1/2” x 3” Plastic Spacer
(36), and a 5/16” Nylon Locknut (19) as shown.
Press a 1” Round Cap (24) into each end of the 11”
Weight Tube (39).
Assemble the other Fly Arm (42) in the same
manner; however this Fly Arm should be a mir-
ror image of the first one, as shown.
10
7
8
9
13
6
5
5
5
2
1
7
13
13
11
2
36
30
39
19
32
42
42
24
24
5
6
